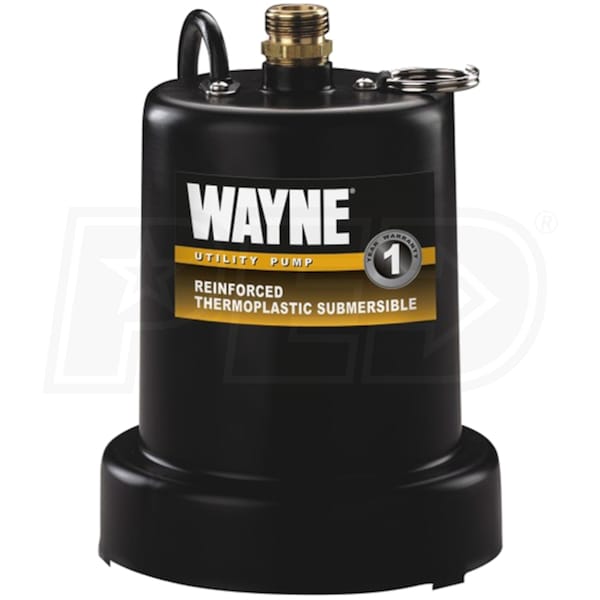

Wayne TSC130 - 20.8 GPM (3/4") Heavy-Duty Submersible Utility Pump
Model: TSC130
4.8 out of 54.8 out of 54.8 out of 54.8 out of 54.8 out of 5
Number of Reviews(6)
Write a Review
$94.99
Holiday Shipping Schedule
Holiday Schedule -
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Only 2 In-Stock
Ships Tuesday, Dec 1st
Shipping to60601
Shipping Details
  • Expedited Shipping Available - Shipping rates calculated at Checkout. Learn More
*We currently CANNOT ship this product to Canada or any destination outside of the United States
In-Stock Free Shipping$94.99Buy Now
In-Stock Free Shipping$94.99Visit Site
Share
  • Product Description
  • 6
    Reviews
  • 1
    Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+

Inlet Size
N/A
Style
Utility Pumps
GPM
20.83
Gallons
Inlet Size
N/A
Style
Utility
GPM
20.83 Gallons


Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."

Features
Features
  • Thermoplastic Design Will Not Rust Or Corrode
  • Impact resistant for rugged use
  • Heavy Duty 1/4 HP Electric Motor
  • Pumps up to 1,250 gallons per hour
  • Thermally Protected Motor
  • Overload protection prevents overheating
  • Bottom Suction Design
  • Filters and removes water down to 1/8" of surface
  • Easy-Access Stainles Steel Ring Handle
  • Made for complete portability
  • Top Discharge Design
  • Provides balanced installation
  • 3/4" Discharge Adaptor Included
  • Connects to any standard garden hose
  • 1-Year Warranty
Specifications
Motor
Voltage
120 Volt
Power Cord Length
8 Feet
Pump
Gallons Per Minute
20.83 Gallons
Outlet Diameter
3/4"
Housing Material
Thermoplastic
Impeller Material
Plastic
Handles Solids
No
Total Head Lift
25 Feet
GPH @ 0 feet
1250
GPH @ 5 feet
1140
GPH @ 10 feet
1000
GPH @ 15 feet
830
GPH @ 20 feet
640
Submersible
Yes
Engine
Continuous Operation
No
Low Oil Shutdown
No
Oil-Cooled
Yes
Horsepower
0.25 hp
Consumer Engine Warranty
1 Year
Accessories
Float Switch
No
Hose
Sold Separately
Overview
Weight
6.5 Pounds
Consumer Warranty
1 Year
Product Length
7.00 Inches
Product Width
7.00 Inches
Product Height
9.00 Inches
UPC
040066100757

Inlet Size
N/A
Style
Utility Pumps
GPM
20.83
Gallons
Inlet Size
N/A
Style
Utility
GPM
20.83 Gallons


Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."

Features
Features
  • Thermoplastic Design Will Not Rust Or Corrode
  • Impact resistant for rugged use
  • Heavy Duty 1/4 HP Electric Motor
  • Pumps up to 1,250 gallons per hour
  • Thermally Protected Motor
  • Overload protection prevents overheating
  • Bottom Suction Design
  • Filters and removes water down to 1/8" of surface
  • Easy-Access Stainles Steel Ring Handle
  • Made for complete portability
  • Top Discharge Design
  • Provides balanced installation
  • 3/4" Discharge Adaptor Included
  • Connects to any standard garden hose
  • 1-Year Warranty
Specifications
Motor
Voltage
120 Volt
Power Cord Length
8 Feet
Pump
Gallons Per Minute
20.83 Gallons
Outlet Diameter
3/4"
Housing Material
Thermoplastic
Impeller Material
Plastic
Handles Solids
No
Total Head Lift
25 Feet
GPH @ 0 feet
1250
GPH @ 5 feet
1140
GPH @ 10 feet
1000
GPH @ 15 feet
830
GPH @ 20 feet
640
Submersible
Yes
Engine
Continuous Operation
No
Low Oil Shutdown
No
Oil-Cooled
Yes
Horsepower
0.25 hp
Consumer Engine Warranty
1 Year
Accessories
Float Switch
No
Hose
Sold Separately
Overview
Weight
6.5 Pounds
Consumer Warranty
1 Year
Product Length
7.00 Inches
Product Width
7.00 Inches
Product Height
9.00 Inches
UPC
040066100757
Product Specs
+
Specifications
Motor
Voltage
120 Volt
Power Cord Length
8 Feet
Pump
Gallons Per Minute
20.83 Gallons
Outlet Diameter
3/4"
Housing Material
Thermoplastic
Impeller Material
Plastic
Handles Solids
No
Total Head Lift
25 Feet
GPH @ 0 feet
1250
GPH @ 5 feet
1140
GPH @ 10 feet
1000
GPH @ 15 feet
830
GPH @ 20 feet
640
Submersible
Yes
Engine
Continuous Operation
No
Low Oil Shutdown
No
Oil-Cooled
Yes
Horsepower
0.25 hp
Consumer Engine Warranty
1 Year
Accessories
Float Switch
No
Hose
Sold Separately
Overview
Weight
6.5 Pounds
Consumer Warranty
1 Year
Product Length
7.00 Inches
Product Width
7.00 Inches
Product Height
9.00 Inches
UPC
040066100757
Reviews
(6)
+
Wayne TSC130 Reviews & Ratings
Product Q&A
(1)
+
Search Product Q&A's Answered by Jim, the Water Pump Expert
icon-social-fb1
+
The specs for the TSC-130 says that the pump cannot run continuously. How long can it run? Can it run for 15 minutes out of every hour?
Russell T
from Arizona
April 17, 2014
Answer
Thank you for your interest in Water Pumps Direct. Per Wayne, the TSC130 will handle a 50/50 duty cycle. For most jobs it can complete the task. If there is a large amount of water, run for an hour and rest the unit for 20 minutes and re-start if needed. Extension cords should not be used. If you absolutely need an extension cord, use the shortest length possible with 12 or 10 gage rating to insure that the pump will not overheat.
Was this answer helpful?
Yes
Thumbs Up Icon
0
No
Thumbs Down Icon
0
