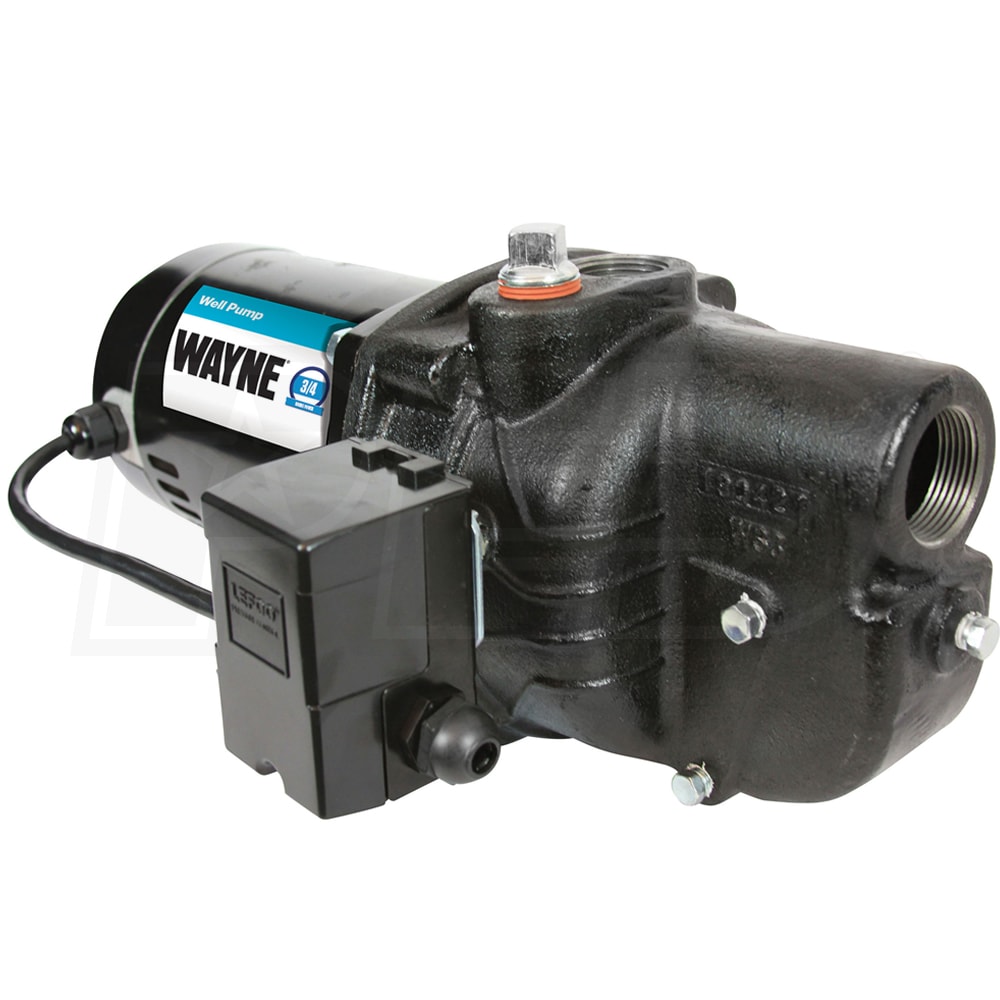

Wayne SWS75 - 3/4 HP Cast Iron Shallow Well Jet Pump

Wayne SWS75 - 3/4 HP Cast Iron Shallow Well Jet Pump
Model: SWS75
$264.00
Factory-Direct
Ships in 4-7 Business Days
Factory items ship direct from the manufacturer.
Shipping times vary.
Free Shipping &
Tax-Free (Except IL)
Free ShippingNo Sales Tax* (Except IL)$264.00Buy Now
Free ShippingNo Sales Tax* (Except IL)$264.00Visit Site
No Sales Tax* (Except IL)$264.00Visit Site
Sales Tax Extra $258.79Visit Site
Factory-Direct
Ships in 4-7 Business Days
Enter your ZIP Code below to see an estimated arrival time of delivery to your home or business.
*We currently CANNOT ship this product to Canada or any destination outside of the United States
Free Shipping
Free Shipping
  • Product Description
  • 2
    Reviews
  • Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+

Inlet Size
1-1/4"
Style
GPM
7.8
Gallons
Features
Features
  • 3/4 HP Cast Iron Shallow Well Jet Pump
  • Offers years of reliable, trouble-free operation
  • High Efficiency Square Flange Motor
  • Thermally protected to prevent overheating
  • 120/240V dual voltage design, factory wired for 120V
  • Includes Pre-Set Pressure Switch
  • Set at 30-50 PSI for automatic operation
  • Designed For Wells 0’ - 25’ In Depth
  • Pumps up to 468 GPH @ 5’ Depth - (50 PSI)
  • Added Features
  • Dedicated priming port for volute filling
  • Durable cast iron volute
  • 3/4” NPT discharge With 1-1/4” suction
  • 3-Year Warranty
Specifications
Motor
Voltage
120/240 Volt
Engine
Continuous Operation
Yes
Horsepower
0.75 hp
Pump
Gallons Per Minute
7.8 Gallons
Inlet Diameter
1-1/4"
Outlet Diameter
3/4"
Housing Material
Cast Iron
Suction Head
25 Feet
Maximum PSI
50
Submersible
No
Overview
Weight
39 Pounds
Product Length
22.30 Inches
Product Width
11.50 Inches
Product Height
10.30 Inches
Consumer Warranty
3 Years
UPC
040066106131

Inlet Size
1-1/4"
Style
GPM
7.8
Gallons
Features
Features
  • 3/4 HP Cast Iron Shallow Well Jet Pump
  • Offers years of reliable, trouble-free operation
  • High Efficiency Square Flange Motor
  • Thermally protected to prevent overheating
  • 120/240V dual voltage design, factory wired for 120V
  • Includes Pre-Set Pressure Switch
  • Set at 30-50 PSI for automatic operation
  • Designed For Wells 0’ - 25’ In Depth
  • Pumps up to 468 GPH @ 5’ Depth - (50 PSI)
  • Added Features
  • Dedicated priming port for volute filling
  • Durable cast iron volute
  • 3/4” NPT discharge With 1-1/4” suction
  • 3-Year Warranty
Specifications
Motor
Voltage
120/240 Volt
Engine
Continuous Operation
Yes
Horsepower
0.75 hp
Pump
Gallons Per Minute
7.8 Gallons
Inlet Diameter
1-1/4"
Outlet Diameter
3/4"
Housing Material
Cast Iron
Suction Head
25 Feet
Maximum PSI
50
Submersible
No
Overview
Weight
39 Pounds
Product Length
22.30 Inches
Product Width
11.50 Inches
Product Height
10.30 Inches
Consumer Warranty
3 Years
UPC
040066106131
Product Specs
+
Specifications
Motor
Voltage
120/240 Volt
Engine
Continuous Operation
Yes
Horsepower
0.75 hp
Pump
Gallons Per Minute
7.8 Gallons
Inlet Diameter
1-1/4"
Outlet Diameter
3/4"
Housing Material
Cast Iron
Suction Head
25 Feet
Maximum PSI
50
Submersible
No
Overview
Weight
39 Pounds
Product Length
22.30 Inches
Product Width
11.50 Inches
Product Height
10.30 Inches
Consumer Warranty
3 Years
UPC
040066106131
