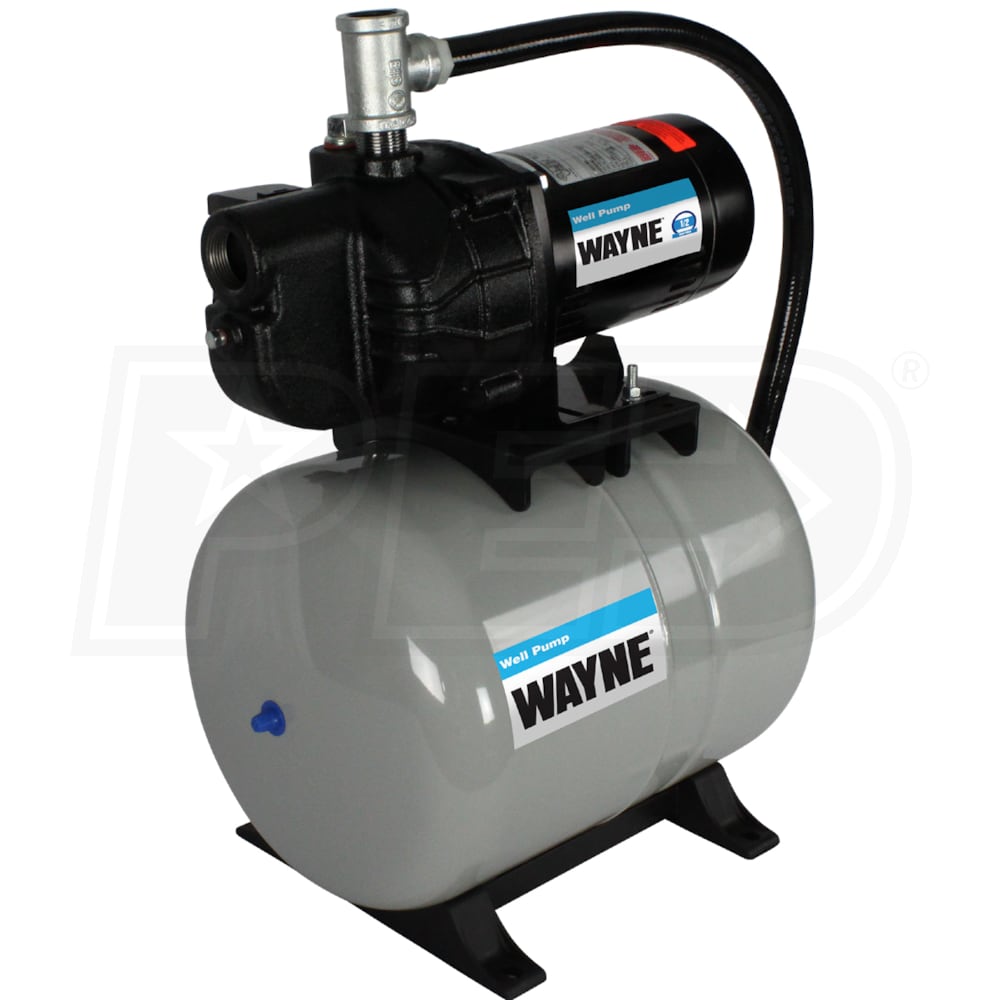

Wayne 1/2 HP Cast Iron Shallow Well Jet Pump w/ 8.5 Gallon Precharged Tank

Model:

SWS50-8.5FX

Write A Review
$563.00
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
Ships in 2-5 Business Days

Wayne 1/2 HP Cast Iron Shallow Well Jet Pump w/ 8.5 Gallon Precharged Tank
Wayne 1/2 HP Cast Iron Shallow Well Jet Pump w/ 8.5 Gallon Precharged Tank
Model: SWS50-8.5FX
$563.00
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

Power Equipment Direct expert image
Expert Recommended Accessories Selected by Jim, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Inlet Size

1-1/4 Inch

Style

Shallow Well

GPM

5.6 Gallons

  • Wayne 1/2 HP Shallow Well Jet Pump System
  • For shallow well applications up to 25' depth
  • 8.5-Gallon Precharged Tank
  • Provides more usable water compared to conventional tanks
  • All Cast Iron Motor Housing
  • Rugged, corrosion-resistant design provides longer pump life
  • 1/2 HP Dual Voltage Motor (120/240V)*
  • Energy efficient, thermally protected design
  • Thermoplastic Impeller
  • For maximum water flow and reliable operation
  • Includes Pre-Set Pressure Switch
  • Set at 30-50 PSI for automatic operation
  • 1-1/4" NPT Intake & 1" NPT Discharge
  • Easily connect to existing system
  • Dedicated Priming Port
  • Makes this pump very easy to use
  • 3-Year Limited Warranty
  • *No Power Cord Included
California residents see
Warning: This product can expose you to chemicals including Di(2-ethylhexyl)phthalate (DEHP) which is known to the State of California to cause Cancer.
For more information go to: www.p65Warnings.ca.gov

Specifications

SWS50-8.5FX
specs product image PID-109266
General Information
Product Category
Water Pump
Motor
Voltage
120/240 Volt
Pump
Gallons Per Minute
5.6 Gallons
Inlet Diameter
1-1/4 Inch
Outlet Diameter
1 Inch
Housing Material
Cast Iron
Impeller Material
Plastic
Suction Head
25 Feet
Maximum PSI
50
Submersible
No
Engine
Continuous Operation
No
Horsepower
0.5 hp
Overview
Product Category
Water Pump
Weight
43.6 Pounds
Consumer Warranty
3 Years
Product Length
24 Inches
Product Width
12.5 Inches
Product Height
8 Inches
UPC
040066218889
