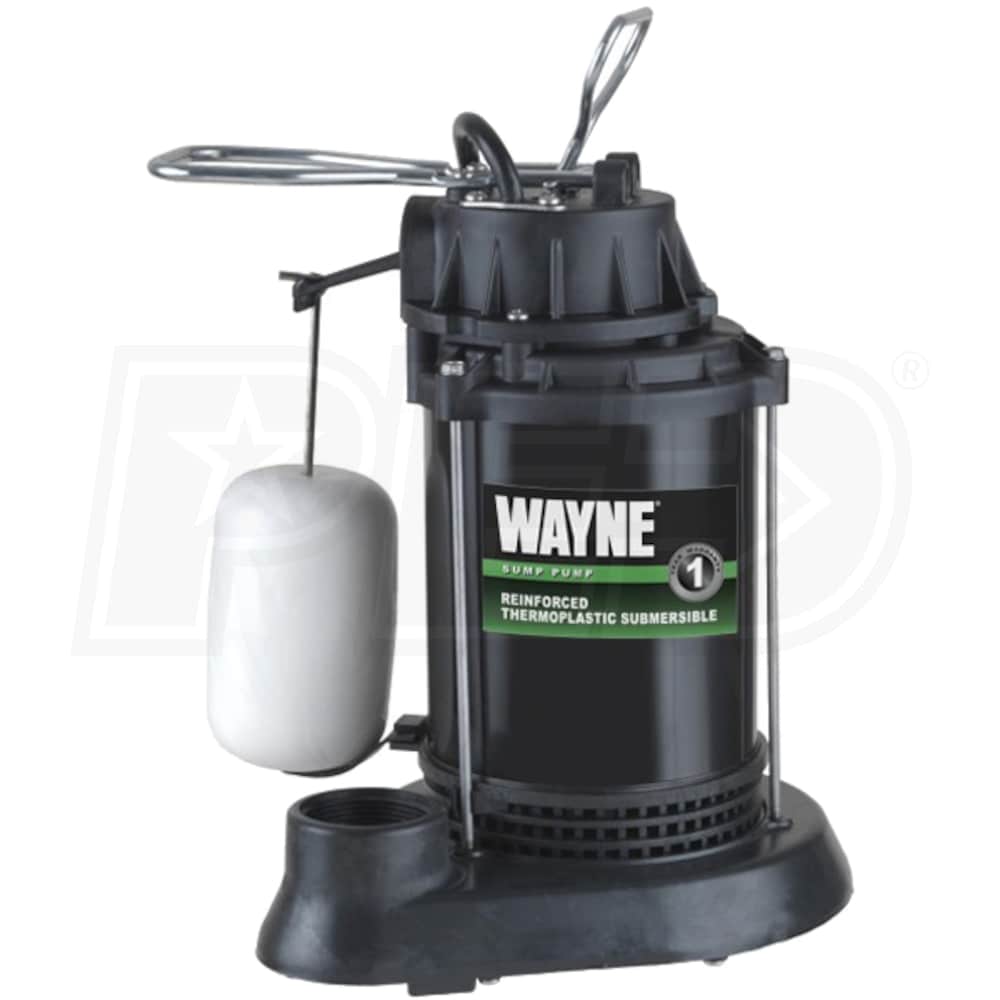

Wayne SPF33 - 1/3 HP Thermoplastic Submersible Sump Pump w/ Vertical Float Switch

Wayne SPF33 - 1/3 HP Thermoplastic Submersible Sump Pump w/ Vertical Float Switch
Model: SPF33
$119.00
Only 1 In-Stock
Ships Friday, Aug 17th
Free Shipping
In-Stock Free ShippingNo Sales Tax* (Except IL)$119.00Buy Now
In-Stock Free ShippingNo Sales Tax* (Except IL)$119.00Visit Site
No Sales Tax* (Except IL)$110.00Visit Site
Sales Tax Extra $119.99Visit Site
Only 1 In-Stock
Ships Friday, Aug 17th
Free Shipping
Free Shipping
Expedited Shipping
Expedited Shipping
*We currently CANNOT ship this product to Canada or any destination outside of the United States
Share
  • Product Description
  • 6
    Reviews
  • 1
    Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+
Style
Primary Sumps Pumps
GPH
3750
Gallons
Switch Type
Vertical Float Switch
Style
Primary
GPH
3750 Gallons
Switch Type
Vertical


Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."

Features
Features
  • Wayne SPF33 1/3 HP Automatic Submersible Sump Pump
  • Assembled in the US with foreign and domestic parts
  • The Hardest Working Pumps, You'll Never Hear™
  • Energy efficient motors & engineered design provide an ultra quiet experience
  • Epoxy-Coated Steel & Reinforced Thermoplastic Construction
  • Rugged, corrosion-resistant design provides long life in sump applications
  • 1/3 HP, Thermally Protected 120V PCS Motor
  • Energy efficient, oil-filled design, for quiet operation and extend motor life
  • Integrated, Guard-Protected Vertical Float Switch w/ Solid Polypropylene Float
  • Prevents switch hang-ups from debris for reliable automatic operation
  • Tested to 1 million cycles*; For performance that lasts
  • Unique Top Suction Design Reduces Clogging
  • Prevents air lock occurrences and eliminates needs for a "weep hole"
  • Glass Reinforced Polycarbonate Impeller
  • Abrasion resistant design provides efficient and reliable output
  • 1-1/2" NPT Discharge
  • Complies with building-codes for residential applications
  • Upper and Lower Ball Bearings
  • Sealed oil-bath engineering for increased lifespan and virtually silent operation
  • Premium John Crane Carbon/Ceramic Shaft Seals & Cast Iron Seal Plate
  • High-quality components helps prevent leaks and galvanic corrosion
  • Designed For Use In 11-Inch or Larger Sump Basins
  • 8-Foot, water-resistant power cord for easier access to power outlet
  • *WAYNE Water Pumps Exceed an Average 1 Million Test Cycles
  • 1-Year Limited Warranty
Specifications
Base
Min Sump Basin Size
11 Inch
Motor
Voltage
120 Volt
Running Amps
3.65
Thermal Protection
Yes
Power Cord Length
8 Feet
Oil Free Motor
No
Starting Amps
19
Pump
Housing Material
Thermoplastic
Impeller Material
Plastic
Handles Solids
No
Float Type
Vertical Float
GPH @ 0 feet
3750
GPH @ 5 feet
3300
GPH @ 10 feet
2718
GPH @ 15 feet
1920
Discharge Port Size
1-1/2 Inch
Built-in check Valve
No
Float On
9 Inches
Float Off
4 Inches
Manual Override
No
Submersible
Yes
Engine
Horsepower
.33 hp
Overview
Weight
12 Pounds
Product Width
9.75 Inches
Product Height
11.5 Inches
Consumer Warranty
1 Year
UPC
040066203649
Style
Primary Sumps Pumps
GPH
3750
Gallons
Switch Type
Vertical Float Switch
Style
Primary
GPH
3750 Gallons
Switch Type
Vertical


Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."

Features
Features
  • Wayne SPF33 1/3 HP Automatic Submersible Sump Pump
  • Assembled in the US with foreign and domestic parts
  • The Hardest Working Pumps, You'll Never Hear™
  • Energy efficient motors & engineered design provide an ultra quiet experience
  • Epoxy-Coated Steel & Reinforced Thermoplastic Construction
  • Rugged, corrosion-resistant design provides long life in sump applications
  • 1/3 HP, Thermally Protected 120V PCS Motor
  • Energy efficient, oil-filled design, for quiet operation and extend motor life
  • Integrated, Guard-Protected Vertical Float Switch w/ Solid Polypropylene Float
  • Prevents switch hang-ups from debris for reliable automatic operation
  • Tested to 1 million cycles*; For performance that lasts
  • Unique Top Suction Design Reduces Clogging
  • Prevents air lock occurrences and eliminates needs for a "weep hole"
  • Glass Reinforced Polycarbonate Impeller
  • Abrasion resistant design provides efficient and reliable output
  • 1-1/2" NPT Discharge
  • Complies with building-codes for residential applications
  • Upper and Lower Ball Bearings
  • Sealed oil-bath engineering for increased lifespan and virtually silent operation
  • Premium John Crane Carbon/Ceramic Shaft Seals & Cast Iron Seal Plate
  • High-quality components helps prevent leaks and galvanic corrosion
  • Designed For Use In 11-Inch or Larger Sump Basins
  • 8-Foot, water-resistant power cord for easier access to power outlet
  • *WAYNE Water Pumps Exceed an Average 1 Million Test Cycles
  • 1-Year Limited Warranty
Specifications
Base
Min Sump Basin Size
11 Inch
Motor
Voltage
120 Volt
Running Amps
3.65
Thermal Protection
Yes
Power Cord Length
8 Feet
Oil Free Motor
No
Starting Amps
19
Pump
Housing Material
Thermoplastic
Impeller Material
Plastic
Handles Solids
No
Float Type
Vertical Float
GPH @ 0 feet
3750
GPH @ 5 feet
3300
GPH @ 10 feet
2718
GPH @ 15 feet
1920
Discharge Port Size
1-1/2 Inch
Built-in check Valve
No
Float On
9 Inches
Float Off
4 Inches
Manual Override
No
Submersible
Yes
Engine
Horsepower
.33 hp
Overview
Weight
12 Pounds
Product Width
9.75 Inches
Product Height
11.5 Inches
Consumer Warranty
1 Year
UPC
040066203649
Product Specs
+
Specifications
Base
Min Sump Basin Size
11 Inch
Motor
Voltage
120 Volt
Running Amps
3.65
Thermal Protection
Yes
Power Cord Length
8 Feet
Oil Free Motor
No
Starting Amps
19
Pump
Housing Material
Thermoplastic
Impeller Material
Plastic
Handles Solids
No
Float Type
Vertical Float
GPH @ 0 feet
3750
GPH @ 5 feet
3300
GPH @ 10 feet
2718
GPH @ 15 feet
1920
Discharge Port Size
1-1/2 Inch
Built-in check Valve
No
Float On
9 Inches
Float Off
4 Inches
Manual Override
No
Submersible
Yes
Engine
Horsepower
.33 hp
Overview
Weight
12 Pounds
Product Width
9.75 Inches
Product Height
11.5 Inches
Consumer Warranty
1 Year
UPC
040066203649
Reviews
(6)
+
Wayne SPF33 Reviews & Ratings
Product Q&A
(1)
+
Search Product Q&A's Answered by Jim, the Sump Pump Expert
icon-social-fb1
+
Does this pump require a weep hole?
Michael J.
from Pennsylvania
April 01, 2017
Answer
While most sump and sewage should have a weep hole drilled in the discharge pipe, this Wayne pump does not require it. This is due to their top suction design. Where most pumps suck the water in through the bottom and underneath the base, this pump sucks the water in from around the top of the base. I always say that, no matter what, it's never a bad idea to drill the weep hole, but with this style of pump, it's not as important.
