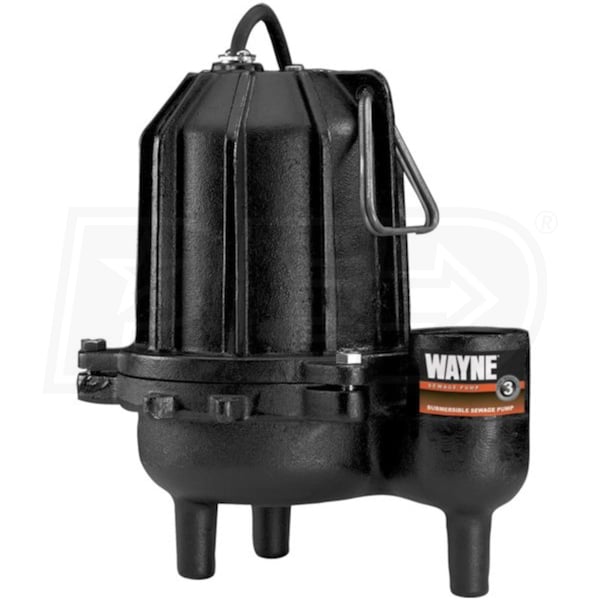

Wayne DSP60 - 6/10 HP Heavy Duty Cast Iron Sewage Pump (2") (Non-Automatic)

Wayne DSP60 - 6/10 HP Heavy Duty Cast Iron Sewage Pump (2") (Non-Automatic)
Model: DSP60
Product Discontinued
Sorry, this product is no longer available.
Continue Shopping With These Categories
Discontinued

(as of 06:22 CST - Details) Sales Tax Extra $368.85Visit Site
Discontinued
Sorry, this product is no longer available
Enter your ZIP Code below to see an estimated arrival time of delivery to your home or business.
*We currently CANNOT ship this product to Canada or any destination outside of the United States
Free Shipping
Free Shipping
  • Product Description
  • 1
    Reviews
  • 1
    Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+
Style
Sewage Pumps
GPH
8200
Gallons
Switch Type
None
Features
Features
  • 6/10 HP Heavy Duty Manual Sewage Pump
  • Designed for residential & light commercial sewage applications
  • Cast Iron Motor Housing, Volute, Seal Plate & Impeller
  • Offers years of reliable, trouble-free operation
  • Thermally Protected Motor
  • Oil-filled, prevents overheating
  • 2" NPT Discharge
  • Capable Of Handling 2" Solids
  • Lower Ball Bearing & Stainless Steel Fasteners
  • Designed for quite operation and extended product life
  • Easy Carry Ring
  • Made for complete portability and versatility
  • Manual Operation
  • Requires Control Box Or Pump Switch (Sold Separately)
Specifications
Motor
Running Amps
11.3
Thermal Protection
Yes
Power Cord Length
10 Feet
Oil Free Motor
No
Engine
Horsepower
.6 hp
Pump
Housing Material
Cast Iron
Solids Handling Size
2 inch
Float Type
No Switch
GPH @ 0 feet
8200
GPH @ 5 feet
7500
GPH @ 10 feet
6000
GPH @ 15 feet
4000
GPH @ 20 feet
2000
Discharge Port Size
2 Inch
Overview
Made in USA
Yes
Weight
54 Pounds
Product Width
14 Inches
Product Height
12 Inches
Consumer Warranty
3 Years
UPC
040066103710
Style
Sewage Pumps
GPH
8200
Gallons
Switch Type
None
Features
Features
  • 6/10 HP Heavy Duty Manual Sewage Pump
  • Designed for residential & light commercial sewage applications
  • Cast Iron Motor Housing, Volute, Seal Plate & Impeller
  • Offers years of reliable, trouble-free operation
  • Thermally Protected Motor
  • Oil-filled, prevents overheating
  • 2" NPT Discharge
  • Capable Of Handling 2" Solids
  • Lower Ball Bearing & Stainless Steel Fasteners
  • Designed for quite operation and extended product life
  • Easy Carry Ring
  • Made for complete portability and versatility
  • Manual Operation
  • Requires Control Box Or Pump Switch (Sold Separately)
Specifications
Motor
Running Amps
11.3
Thermal Protection
Yes
Power Cord Length
10 Feet
Oil Free Motor
No
Engine
Horsepower
.6 hp
Pump
Housing Material
Cast Iron
Solids Handling Size
2 inch
Float Type
No Switch
GPH @ 0 feet
8200
GPH @ 5 feet
7500
GPH @ 10 feet
6000
GPH @ 15 feet
4000
GPH @ 20 feet
2000
Discharge Port Size
2 Inch
Overview
Made in USA
Yes
Weight
54 Pounds
Product Width
14 Inches
Product Height
12 Inches
Consumer Warranty
3 Years
UPC
040066103710
Product Specs
+
Specifications
Motor
Running Amps
11.3
Thermal Protection
Yes
Power Cord Length
10 Feet
Oil Free Motor
No
Engine
Horsepower
.6 hp
Pump
Housing Material
Cast Iron
Solids Handling Size
2 inch
Float Type
No Switch
GPH @ 0 feet
8200
GPH @ 5 feet
7500
GPH @ 10 feet
6000
GPH @ 15 feet
4000
GPH @ 20 feet
2000
Discharge Port Size
2 Inch
Overview
Made in USA
Yes
Weight
54 Pounds
Product Width
14 Inches
Product Height
12 Inches
Consumer Warranty
3 Years
UPC
040066103710
Reviews
(1)
+
Wayne DSP60 Reviews & Ratings
Product Q&A
(1)
+
what is the difference between and automatic & manual sewage pump
Bob Z
from New Jersey
August 14, 2012
Read Response +
Answer
An automatic sewage pump would include a float switch to turn the pump on & off as needed. The manual pump would not include the switch, thus you would either run the pump manually as needed, connect it to a control box or your choice of a float switches for automatic operation. The advantage to the manual pump is to give the consumer a better choice and more flexibility on how he/she may want to operate the pump.
Hide Response -
