Features
Inlet Size
1-1/4 Inch
Style
Convertible Jet
GPM
13.8 Gallons
- Wayne Cast Iron Convertible Well Jet Pump*
- Assembled in the US with foreign and domestic parts
- *Requires Jet Assembly For Operation
- Designed For Wells 0' - 90' In Depth
- Pumps up to 300 GPH @ 10' Depth - (50 PSI)
- All Cast Iron Motor Housing
- Rugged, corrosion-resistant design provides longer pump life
- 1/2 HP Dual Voltage Motor (120/240V)**
- Energy efficient, thermally protected design
- Thermoplastic Impeller
- For maximum water flow and reliable operation
- Includes Pre-Set Pressure Switch
- Set at 30-50 PSI for automatic operation
- 1-1/4" NPT Intake & 1" NPT Discharge
- Easily connect to existing system
- Dedicated Priming Port
- Makes this pump very easy to use
- 3-Year Limited Warranty
- Note - For Wells w/ Static Water At/Between 30' & 50' - Use Jet Assy# 55465-WYN1
- **No Power Cord Included
California residents see
Warning: This product can expose you to chemicals including Di(2-ethylhexyl)phthalate (DEHP) which is known to the State of California to cause Cancer.
For more information go to: www.p65Warnings.ca.gov
Specifications
CWS50
General Information
Product Category
Water Pump
Motor
Voltage
120/240 Volt
Pump
Gallons Per Minute
13.8 Gallons
Inlet Diameter
1-1/4 Inch
Outlet Diameter
1 Inch
Pump Housing Drain
Yes
Housing Material
Cast Iron
Impeller Material
Plastic
Suction Head
90 Feet
Maximum PSI
50
Submersible
No
Engine
Continuous Operation
No
Horsepower
0.5 hp
Overview
Product Category
Water Pump
Weight
43 Pounds
Consumer Warranty
3 Years
Product Length
23.75 Inches
Product Width
12.5 Inches
Product Height
8 Inches
UPC
040066105790
Reviews
(1)
Wayne CWS50 Reviews & Ratings
Product Q&A
Be the First to Ask A Question
Answered by Jim, the Water Pump Expert
How-To Articles
Priming Your Well Pump
Well pumps have been around for centuries, but the days of using a bucket and r...
How to Pick the Perfect Specialty Water Pump
All water pumps are built for the same purpose: moving water. But there are s...
Power Equipment How-To Library
Articles, Tips and Buying Guides from Our Experts
Manuals
Ask A Question!
*Required Fields
+
Thank You For Submitting Your Question
Your submission has been sent successfully. Please give our experts up to two business days to respond.
Media Gallery

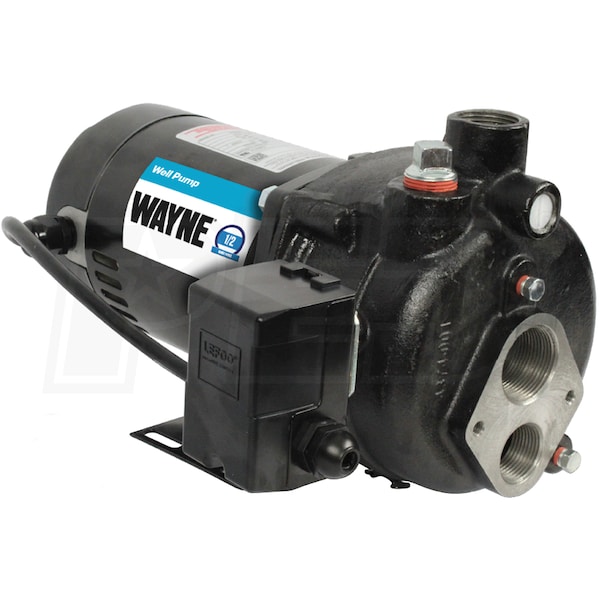

Wayne CWS50 - 1/2 HP Cast Iron Convertible Well Jet Pump
