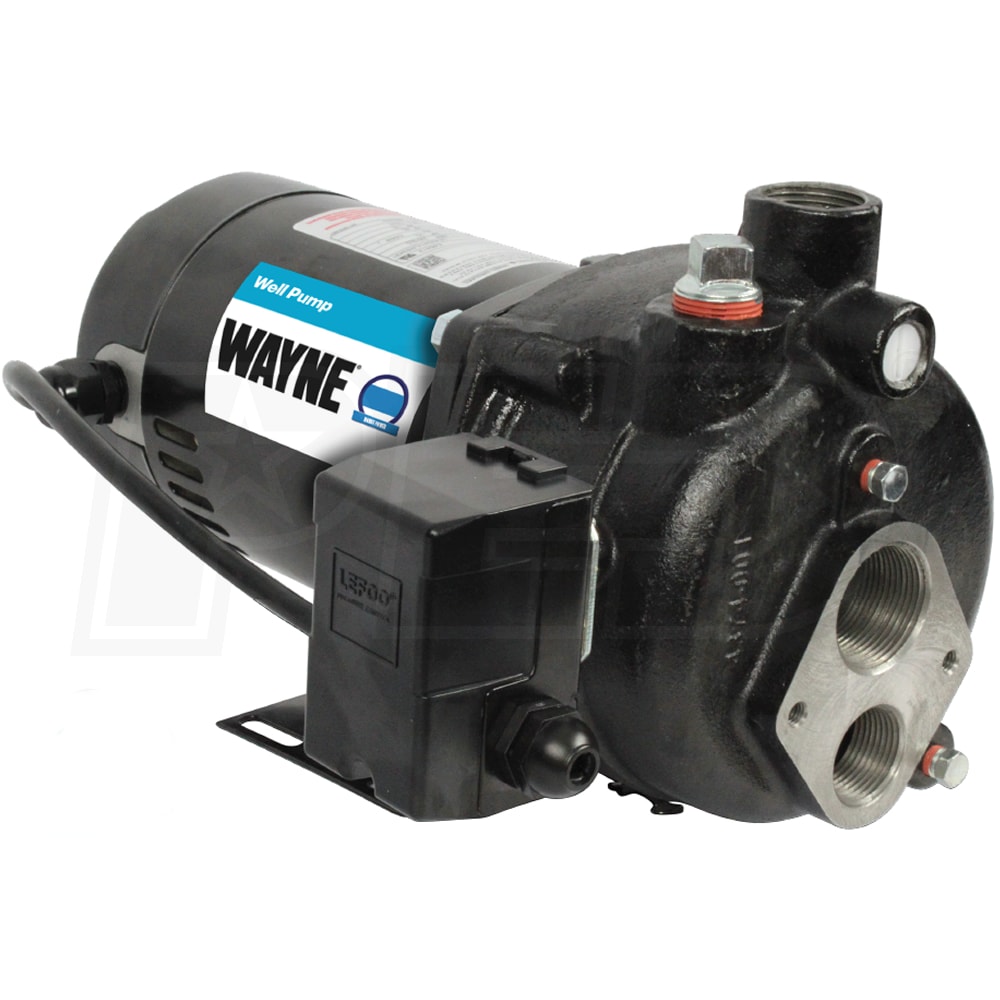

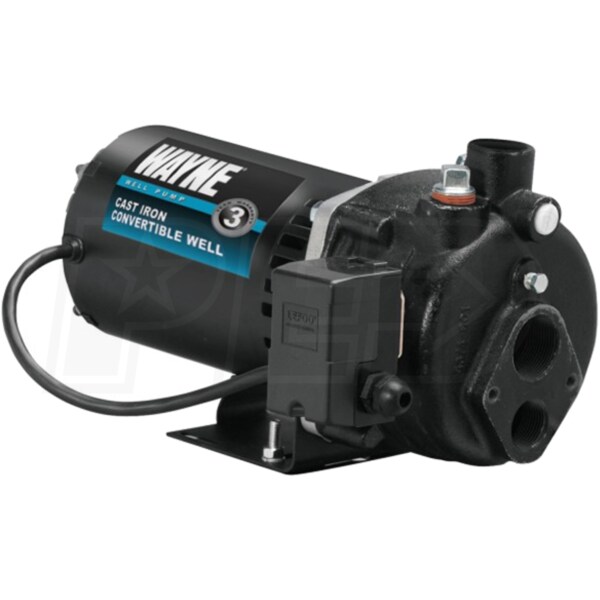

Wayne CWS100 - 1 HP Cast Iron Convertible Well Jet Pump
Model: CWS100
5.0 out of 55.0 out of 55.0 out of 55.0 out of 55.0 out of 5
Number of Reviews(4)
Write a Review
$330.00
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
In-Stock
Ships in 1-3 Business Days
Shipping to60601
Shipping Details
  • Expedited Shipping Available - Shipping rates calculated at Checkout. Learn More
*We currently CANNOT ship this product to Canada or any destination outside of the United States

In-Stock Free Shipping$330.00Buy Now
In-Stock Free Shipping$330.00Visit Site
Share
  • Product Description
  • 4
    Reviews
  • 1
    Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+

Inlet Size
1-1/4"
Style
Convertible Jet Pumps
GPM
16.7
Gallons
Inlet Size
1-1/4"
Style
Convertible Jet
GPM
16.7 Gallons
Features
Features
  • Wayne Cast Iron Convertible Well Jet Pump*
  • Assembled in the US with foreign and domestic parts
  • *Requires Jet Assembly For Operation
  • Designed For Wells 0' - 90' In Depth

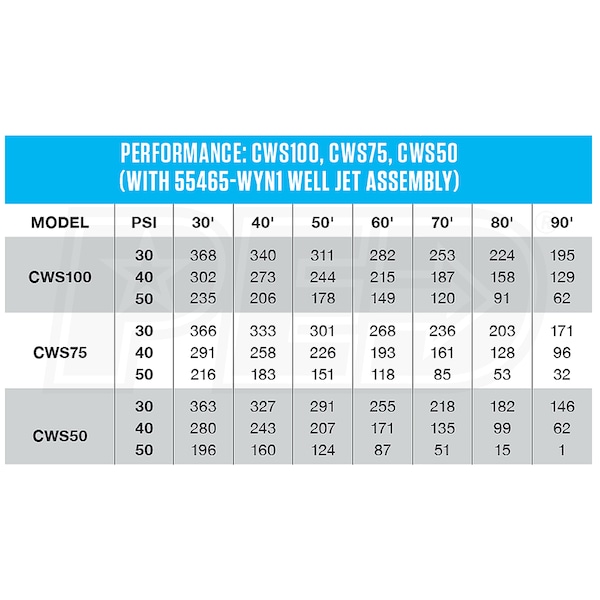

  • Pumps up to 444 GPH @ 10' Depth - (50 PSI)
  • All Cast Iron Motor Housing
  • Rugged, corrosion-resistant design provides longer pump life
  • 1 HP Dual Voltage Motor (120/240V)**
  • Energy efficient, thermally protected design
  • Thermoplastic Impeller
  • For maximum water flow and reliable operation
  • Includes Pre-Set Pressure Switch
  • Set at 30-50 PSI for automatic operation
  • 1-1/4" NPT Intake & 1" NPT Discharge
  • Easily connect to existing system
  • Dedicated Priming Port
  • Makes this pump very easy to use
  • 3-Year Limited Warranty
  • **No Power Cord Included
Specifications
Motor
Voltage
120/240 Volt
Pump
Gallons Per Minute
16.7 Gallons
Inlet Diameter
1-1/4"
Outlet Diameter
1"
Housing Material
Cast Iron
Impeller Material
Plastic
Suction Head
90 Feet
Maximum PSI
50
Submersible
No
Engine
Horsepower
1 hp
Overview
Weight
43 Pounds
Consumer Warranty
3 Years
Product Length
23.75 Inches
Product Width
12.5 Inches
Product Height
8 Inches
UPC
040066218827

Inlet Size
1-1/4"
Style
Convertible Jet Pumps
GPM
16.7
Gallons
Inlet Size
1-1/4"
Style
Convertible Jet
GPM
16.7 Gallons
Features
Features
  • Wayne Cast Iron Convertible Well Jet Pump*
  • Assembled in the US with foreign and domestic parts
  • *Requires Jet Assembly For Operation
  • Designed For Wells 0' - 90' In Depth
  • Pumps up to 444 GPH @ 10' Depth - (50 PSI)
  • All Cast Iron Motor Housing
  • Rugged, corrosion-resistant design provides longer pump life
  • 1 HP Dual Voltage Motor (120/240V)**
  • Energy efficient, thermally protected design
  • Thermoplastic Impeller
  • For maximum water flow and reliable operation
  • Includes Pre-Set Pressure Switch
  • Set at 30-50 PSI for automatic operation
  • 1-1/4" NPT Intake & 1" NPT Discharge
  • Easily connect to existing system
  • Dedicated Priming Port
  • Makes this pump very easy to use
  • 3-Year Limited Warranty
  • **No Power Cord Included
Specifications
Motor
Voltage
120/240 Volt
Pump
Gallons Per Minute
16.7 Gallons
Inlet Diameter
1-1/4"
Outlet Diameter
1"
Housing Material
Cast Iron
Impeller Material
Plastic
Suction Head
90 Feet
Maximum PSI
50
Submersible
No
Engine
Horsepower
1 hp
Overview
Weight
43 Pounds
Consumer Warranty
3 Years
Product Length
23.75 Inches
Product Width
12.5 Inches
Product Height
8 Inches
UPC
040066218827
Product Specs
+
Specifications
Motor
Voltage
120/240 Volt
Pump
Gallons Per Minute
16.7 Gallons
Inlet Diameter
1-1/4"
Outlet Diameter
1"
Housing Material
Cast Iron
Impeller Material
Plastic
Suction Head
90 Feet
Maximum PSI
50
Submersible
No
Engine
Horsepower
1 hp
Overview
Weight
43 Pounds
Consumer Warranty
3 Years
Product Length
23.75 Inches
Product Width
12.5 Inches
Product Height
8 Inches
UPC
040066218827
Reviews
(4)
+
Wayne CWS100 Reviews & Ratings
Product Q&A
(1)
+
Search Product Q&A's Answered by Jim, the Water Pump Expert
icon-social-fb1
+
Hi Jim, I am looking for a replacement well pump for a vacation home located in northern/lower Michigan. The current model details: Wagner 1-1/2 hp Model #056-40250-01 Type RK 3450 RPM 115 Volts 14.8 Amps The pump unfortuantely is over 60yrs old and has cracks in the housing. The pump was used for years at the family's cabin but in 2002 was re-installed with the new constrution (same well though). It has been a great pump and I am having a hard time finding the same HP pump. Our well depth is 150ft. Any advise you can lend would be greatly appreciated. Thank you.
Sheryl
from Michigan
March 28, 2011
Answer
You can check out our selection of deep well pumps at this link. You may also want to consult with a licensed plumber on sizing and installation.
Was this answer helpful?
Yes
Thumbs Up Icon
0
No
Thumbs Down Icon
0
