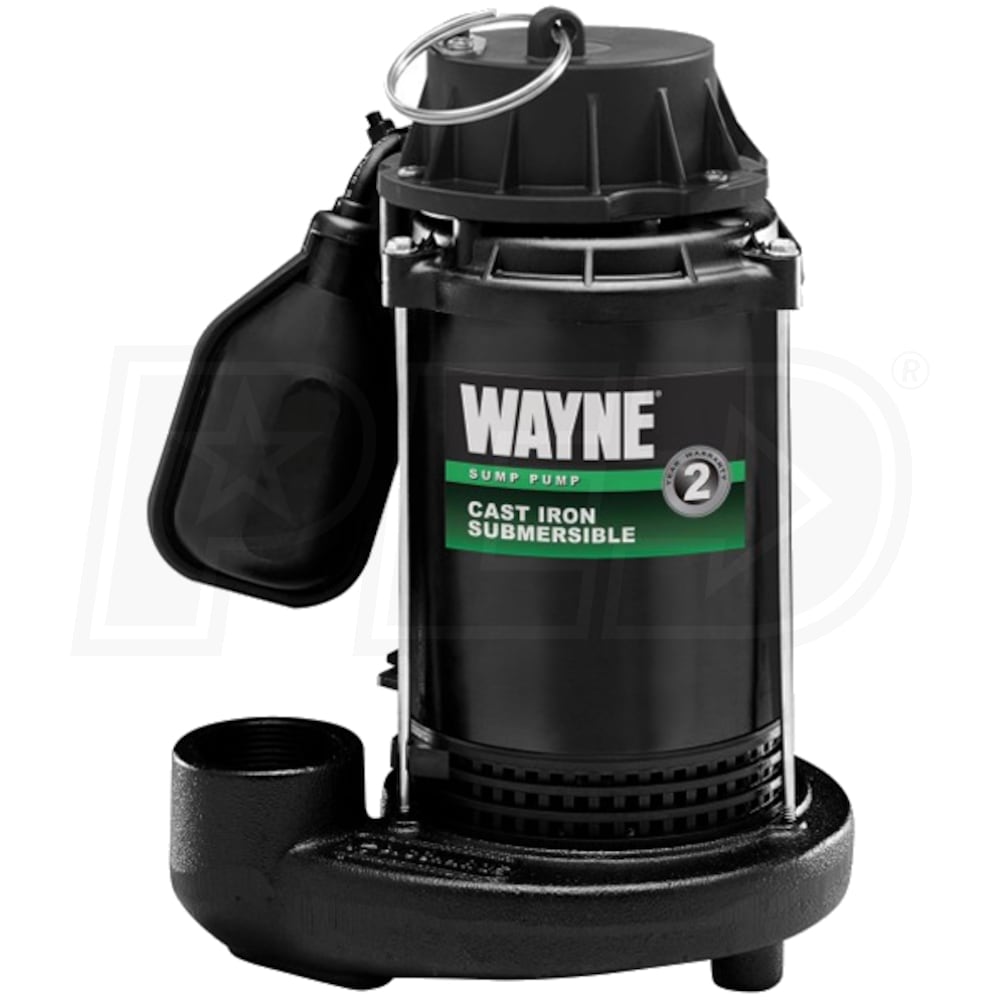

Wayne CDT50 - 1/2 HP Cast Iron Submersible Sump Pump w/ Tether Float Switch

Wayne CDT50 - 1/2 HP Cast Iron Submersible Sump Pump w/ Tether Float Switch
Model: CDT50
$149.99
Factory-Direct
Ships in 2-5 Business Days
Factory items ship direct from the manufacturer.
Shipping times vary.
Free Shipping &
Tax-Free (Except IL)
Free ShippingNo Sales Tax* (Except IL)$149.99Buy Now
Free ShippingNo Sales Tax* (Except IL)$149.99Visit Site
No Sales Tax* (Except IL)$149.99Visit Site

(as of 06:22 CST - Details) Sales Tax Extra $154.07Visit Site
Factory-Direct
Ships in 2-5 Business Days
Free Shipping
Free Shipping
*We currently CANNOT ship this product to Canada or any destination outside of the United States
Share
  • Product Description
  • 3
    Reviews
  • 3
    Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+
Style
Primary Sumps Pumps
GPH
5100
Gallons
Switch Type
Piggy-Back Tether Float Switch
Style
Primary
GPH
5100 Gallons
Switch Type
Piggy-Back Tether


Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."

Features
Features
  • Wayne CDT50 1/2 HP Automatic Submersible Sump Pump
  • Assembled in the US with foreign and domestic parts
  • The Hardest Working Pumps, You'll Never Hear™
  • Energy efficient motors & engineered design provide an ultra quiet experience
  • Epoxy-Coated Steel & Cast Iron Construction
  • Rugged, corrosion-resistant design provides long life in sump applications
  • 1/2 HP, Thermally Protected 120V PCS Motor
  • Energy efficient, oil-filled design, for quiet operation and extend motor life
  • Piggy-Back Tether Float Switch
  • Provides an "On" level of 13" and an "Off" level of 7"
  • Unique Top Suction Design Reduces Clogging
  • Prevents air lock occurrences and eliminates needs for a "weep hole"
  • Glass Reinforced Polycarbonate Impeller
  • Abrasion resistant design provides efficient and reliable output
  • 1-1/2" NPT Discharge
  • Complies with building-codes for residential applications
  • Upper and Lower Ball Bearings
  • Sealed oil-bath engineering for increased lifespan and virtually silent operation
  • Premium John Crane Carbon/Ceramic Shaft Seals & Cast Iron Seal Plate
  • High-quality components helps prevent leaks and galvanic corrosion
  • Designed For Use In 14-Inch or Larger Sump Basins
  • 8-Foot, water-resistant power cord for easier access to power outlet
  • 2-Year Limited Warranty
Specifications
Base
Min Sump Basin Size
14 Inch
Motor
Voltage
120 Volt
Running Amps
3.8
Thermal Protection
Yes
Power Cord Length
8 Feet
Oil Free Motor
No
Engine
Horsepower
.5 hp
Pump
Housing Material
Cast Iron
Impeller Material
Plastic
Handles Solids
No
Float Type
Piggy-Back Tether Switch

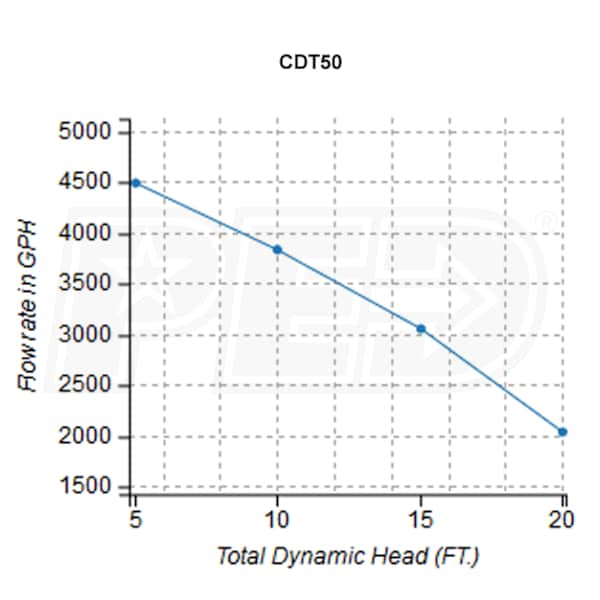

GPH @ 0 feet
5100
GPH @ 5 feet
4500
GPH @ 10 feet
3840
GPH @ 15 feet
306
GPH @ 20 feet
2040
Discharge Port Size
1-1/2 Inch
Built-in check Valve
No
Float On
13 Inches
Float Off
7 Inches
Manual Override
Yes
Overview
Weight
19 Pounds
Product Width
9.75 Inches
Product Height
11.5 Inches
Consumer Warranty
2 Years
UPC
040066204899
Style
Primary Sumps Pumps
GPH
5100
Gallons
Switch Type
Piggy-Back Tether Float Switch
Style
Primary
GPH
5100 Gallons
Switch Type
Piggy-Back Tether


Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."

Features
Features
  • Wayne CDT50 1/2 HP Automatic Submersible Sump Pump
  • Assembled in the US with foreign and domestic parts
  • The Hardest Working Pumps, You'll Never Hear™
  • Energy efficient motors & engineered design provide an ultra quiet experience
  • Epoxy-Coated Steel & Cast Iron Construction
  • Rugged, corrosion-resistant design provides long life in sump applications
  • 1/2 HP, Thermally Protected 120V PCS Motor
  • Energy efficient, oil-filled design, for quiet operation and extend motor life
  • Piggy-Back Tether Float Switch
  • Provides an "On" level of 13" and an "Off" level of 7"
  • Unique Top Suction Design Reduces Clogging
  • Prevents air lock occurrences and eliminates needs for a "weep hole"
  • Glass Reinforced Polycarbonate Impeller
  • Abrasion resistant design provides efficient and reliable output
  • 1-1/2" NPT Discharge
  • Complies with building-codes for residential applications
  • Upper and Lower Ball Bearings
  • Sealed oil-bath engineering for increased lifespan and virtually silent operation
  • Premium John Crane Carbon/Ceramic Shaft Seals & Cast Iron Seal Plate
  • High-quality components helps prevent leaks and galvanic corrosion
  • Designed For Use In 14-Inch or Larger Sump Basins
  • 8-Foot, water-resistant power cord for easier access to power outlet
  • 2-Year Limited Warranty
Specifications
Base
Min Sump Basin Size
14 Inch
Motor
Voltage
120 Volt
Running Amps
3.8
Thermal Protection
Yes
Power Cord Length
8 Feet
Oil Free Motor
No
Engine
Horsepower
.5 hp
Pump
Housing Material
Cast Iron
Impeller Material
Plastic
Handles Solids
No
Float Type
Piggy-Back Tether Switch
GPH @ 0 feet
5100
GPH @ 5 feet
4500
GPH @ 10 feet
3840
GPH @ 15 feet
306
GPH @ 20 feet
2040
Discharge Port Size
1-1/2 Inch
Built-in check Valve
No
Float On
13 Inches
Float Off
7 Inches
Manual Override
Yes
Overview
Weight
19 Pounds
Product Width
9.75 Inches
Product Height
11.5 Inches
Consumer Warranty
2 Years
UPC
040066204899
Product Specs
+
Specifications
Base
Min Sump Basin Size
14 Inch
Motor
Voltage
120 Volt
Running Amps
3.8
Thermal Protection
Yes
Power Cord Length
8 Feet
Oil Free Motor
No
Engine
Horsepower
.5 hp
Pump
Housing Material
Cast Iron
Impeller Material
Plastic
Handles Solids
No
Float Type
Piggy-Back Tether Switch
GPH @ 0 feet
5100
GPH @ 5 feet
4500
GPH @ 10 feet
3840
GPH @ 15 feet
306
GPH @ 20 feet
2040
Discharge Port Size
1-1/2 Inch
Built-in check Valve
No
Float On
13 Inches
Float Off
7 Inches
Manual Override
Yes
Overview
Weight
19 Pounds
Product Width
9.75 Inches
Product Height
11.5 Inches
Consumer Warranty
2 Years
UPC
040066204899
Reviews
(3)
+
Wayne CDT50 Reviews & Ratings
Product Q&A
(3)
+
Search Product Q&A's Answered by Jim, the Sump Pump Expert
icon-social-fb1
+
Does this pump require a weep hole?
Michael J.
from Pennsylvania
April 01, 2017
Answer
While most sump and sewage should have a weep hole drilled in the discharge pipe, this Wayne pump does not require it. This is due to their top suction design. Where most pumps suck the water in through the bottom and underneath the base, this pump sucks the water in from around the top of the base. I always say that, no matter what, it's never a bad idea to drill the weep hole, but with this style of pump, it's not as important.
+
Is this pump capable of handling water softener and washing machine discharge? if not, which brand/model can?
Steve K
from Wisconsin
June 06, 2013
Answer
Generally, sump pumps are not recommended for use in a water softener and/or laundry application. Just about all manufacturers will void the warranty if the pump is installed and fails in this application. You might check out our selection of LAUNDRY / DRAIN PUMP SYSTEMS as most of these self contained systems are designed for laundry and water softener applications.
+
can a theter switch be replaced with afloat switch and what cost differance is there
Donna
from Wisconsin
April 25, 2012
Answer
As long as the original switch utilizes a "piggyback" style plug and the pump and switch each have their own power cord, you can replace that tether switch with any other "piggyback" style Float Switch. Please note however that most "piggyback" style floats will only work for pumps that are rated at 1/2HP and 15 amps or less.
