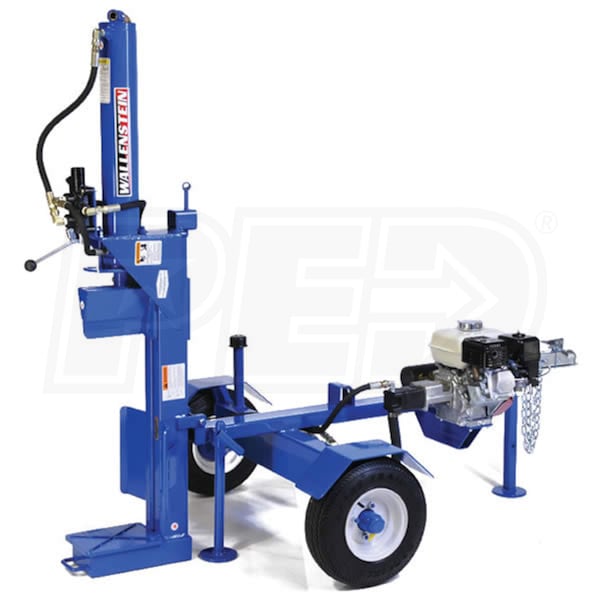

Wallenstein 20-Ton Horizontal / Vertical Gas Log Splitter w/ Honda GX 160cc Engine

Model:

WX540

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Wallenstein 20-Ton Horizontal / Vertical Gas Log Splitter w/ Honda GX 160cc Engine
Wallenstein 20-Ton Horizontal / Vertical Gas Log Splitter w/ Honda GX 160cc Engine
Model: WX540
Product Discontinued
Accessories
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Recommended Accessories

Power Equipment Direct expert image
Expert Recommended Accessories Selected by Dale, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Force

20 Tons

Style

Gas

Type

Vertical / Horizontal

Log Length

24 Inches



Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
  • Horizontal & Vertical Axis Provides Ease of Use
  • Keeps heavier pieces on the ground and saves your back
  • Equipped With A 160cc Honda GX160 Engine
  • Commercial quality and dependability for extended life
  • 2 Stage 11 gpm Hydraulic Pump
  • First stage makes contact with the log
  • Flow decreases, while pressure increases allowing an easy split
  • 14 second average full cycle time
  • Auto Return
  • Splitting wedge returns to start position automatically
  • Allows for easy clearing to ready the next log
  • 9-Inch Wedge Height
  • Splits logs up to 9" in diameter in one shot
  • Saves time and fuel
  • 4-Inch Cylinder With 24-Inch Stroke
  • Hydraulic cylinder splits through logs up to 24" long
  • Plenty of room for the common 16" wide face cord
  • Tough 8" Tires
  • Tows easily over rugged terrain
  • 2" ball hitch and safety chains included
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

WX540
specs product image PID-12331
General Information
Product Category
Log Splitter
Engine
Engine Brand
Honda GX
Starting System
Recoil Start
CC
160 CCs
Fuel Tank Size
1 Gallon
Hydraulics
Auto Return
Yes
Hydraulic Filter
Yes
Hydraulic Oil Included
No
Hydraulic Reservoir Size
3.43 Gallons
Max Pump PSI
3000 PSI
Cylinder Diameter
4 Inches
Cylinder Length
24 Inches
Cycle Time
14 Seconds
Tonnage
20 Tons
Overview
Product Category
Log Splitter
Assembly Required
Yes
Weight
450 Pounds
Consumer Warranty
3 Years
Product Length
80 Inches
Product Width
48 Inches
Product Height
40 Inches
Power Type
Gas
Wedge
Wedge Material
Steel
Wedge Size
9 Inches
Wedge Style
2-way
Log Capacity
Max Log Length
24 Inches
Towing
Towable
Yes
Hitch Type
2 Inch Ball Hitch
Accessories
Jack Stands
Included
Log Cradles
Included
Wood Type Hardness Rating 6" Seasoned 6" Green 12" Seasoned 12" Green 24" Seasoned 24" Green
Alder 590 Lbs. 4+ Tons 6+ Tons 7+ Tons 9+ Tons 27+ Tons 30+ Tons
Ash 1320 Lbs. 7+ Tons 9+ Tons 16+ Tons 22+ Tons 30+ Tons 35+ Tons
Aspen 420 Lbs. 4+ Tons 6+ Tons 7+ Tons 9+ Tons 27+ Tons 30+ Tons
Basswood 410 Lbs. 4+ Tons 6+ Tons 7+ Tons 9+ Tons 27+ Tons 30+ Tons
Beech 1300 Lbs. 7+ Tons 9+ Tons 16+ Tons 22+ Tons 30+ Tons 35+ Tons
Birch 1470 Lbs. 7+ Tons 9+ Tons 16+ Tons 22+ Tons 30+ Tons 35+ Tons
Boxelder 720 Lbs. 6+ Tons 8+ Tons 10+ Tons 13+ Tons 27+ Tons 30+ Tons
Buckeye 350 Lbs. 4+ Tons 6+ Tons 7+ Tons 9+ Tons 27+ Tons 30+ Tons
Catalpa 550 Lbs. 4+ Tons 6+ Tons 7+ Tons 9+ Tons 27+ Tons 30+ Tons
Cedar 900 Lbs. 6+ Tons 8+ Tons 15+ Tons 20+ Tons 27+ Tons 30+ Tons
Cherry 950 Lbs. 6+ Tons 8+ Tons 15+ Tons 20+ Tons 27+ Tons 30+ Tons
Cottonwood 430 Lbs. 4+ Tons 6+ Tons 7+ Tons 9+ Tons 27+ Tons 30+ Tons
Dogwood 2150 Lbs. 10+ Tons 13+ Tons 22+ Tons 27+ Tons 30+ Tons 35+ Tons
Elm 1540 Lbs. 10+ Tons 13+ Tons 16+ Tons 22+ Tons 30+ Tons 35+ Tons
Fir 710 Lbs. 6+ Tons 8+ Tons 10+ Tons 13+ Tons 27+ Tons 30+ Tons
Hickory 1820 Lbs. 10+ Tons 13+ Tons 22+ Tons 27+ Tons 30+ Tons 35+ Tons
Locust 1700 Lbs. 10+ Tons 13+ Tons 22+ Tons 27+ Tons 30+ Tons 35+ Tons
Magnolia 1020 Lbs. 7+ Tons 9+ Tons 16+ Tons 22+ Tons 30+ Tons 35+ Tons
Maple 1450 Lbs. 7+ Tons 9+ Tons 16+ Tons 22+ Tons 30+ Tons 35+ Tons
Oak 1620 Lbs. 10+ Tons 13+ Tons 22+ Tons 27+ Tons 30+ Tons 35+ Tons
Pine 860 Lbs. 6+ Tons 8+ Tons 10+ Tons 13+ Tons 27+ Tons 30+ Tons
Poplar 540 Lbs. 4+ Tons 6+ Tons 7+ Tons 9+ Tons 27+ Tons 30+ Tons
Spruce 510 Lbs. 4+ Tons 6+ Tons 7+ Tons 9+ Tons 27+ Tons 30+ Tons
Sweet Gum 850 Lbs. 6+ Tons 8+ Tons 10+ Tons 13+ Tons 27+ Tons 30+ Tons
Walnut 1010 Lbs. 7+ Tons 9+ Tons 16+ Tons 22+ Tons 30+ Tons 35+ Tons
