VIAIR 95C 12-Volt 120-PSI Air Compressor Kit (9% Duty Cycle @ 100 PSI) w/ Omega Mounting Bracket

Model:

00095

Write A Review
$106.95
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
Ships in 2-5 Business Days
VIAIR 95C 12-Volt 120-PSI Air Compressor Kit (9% Duty Cycle @ 100 PSI) w/ Omega Mounting Bracket
VIAIR 95C 12-Volt 120-PSI Air Compressor Kit (9% Duty Cycle @ 100 PSI) w/ Omega Mounting Bracket
Model: 00095
$106.95
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

Power Equipment Direct expert image
Expert Recommended Accessories Selected by Melissa, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Grade

Consumer

Style

DC Compressors

CFM

.43

Tank Size

0

  • Dependable 12-Volt Permanent Magnetic Motor
  • A light duty solution for smaller air requirements and are meant to fill no larger than a 1.0 gallon air tank
  • Check valve is included; use of a pressure switch & 12V relay is recommended
  • 9% At 100 PSI Duty Cycle
  • Work for up to 5 minutes on, 55 minutes off per hour
  • 10 amp maximum 12-volt amp draw
  • Quickly & efficiently puts out 1.03 CFM flow at zero PSI head pressure; .43 CFM @ 90 PSI
  • Compact & Versatile
  • Weighs only 2.55 pounds, measures 5.4″L x 3.1″W x 4.6″H
  • Run in a well ventilated area, works best with engine running
  • Recommended torque for 1/8" fittings is 10-11 ft.lbs.

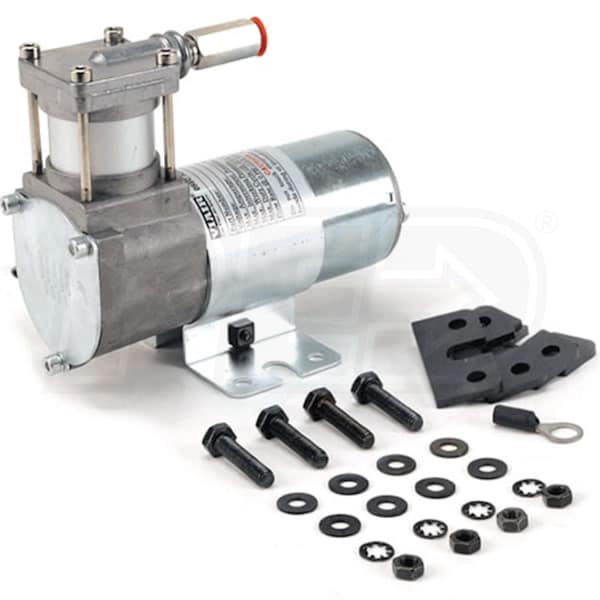

  • Omega Bracket Mounting Hardware & Vibration Isolators Included
  • Use thread sealant for proper installation, teflon tape not recommended
  • 1 Year Limited Factory Warranty
  • Protects your investment from defects in materials and workmanship
California residents see
Warning: This product can expose you to chemicals including Lead which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov

Specifications

00095
specs product image PID-75083
General Information
Product Category
Air Compressor - Portable
Motor
Voltage
12 Volt DC
Magnetic Starter Learn More
Magnetic Starter
The Magnetic Starter is the "thinking cap" for the motor of the air compressor. Magnetic starters are electromagnetically operated switches that provide a safe method for certain motors to be started under a large motor load.
Yes
Amp Draw
10
Pump
CFM Learn More
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
.43
CFM Rated @
90 PSI
Pump Material
Aluminum
Max PSI Learn More
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
120 PSI
Pump Type
Single-Stage
Pump Drive
Direct Drive
Oil Type
Oil Free
Duty Cycle
9%
Tank
Tank Size
0 Gallons
Tank Included
No
Electronic Drain Valve Learn More
Electronic Drain Valve
The inexpensive and reliable electric drain valve (EDV) automatically removes condensate from your air system. It has an integral strainer to prevent clogging and saves time and money by eliminating the need for manual draining
No
Accessories
Pressure Gauge
No
Air Dryer
No
Overview
Product Category
Air Compressor - Portable
Weight
2.55 Pounds
Consumer Warranty
1 Year
Product Length
5.4 Inches
Product Width
3.1 Inches
Product Height
4.6 Inches
Power Type
Electric
UPC
818114000959
Additional Model Numbers

95, 00095
