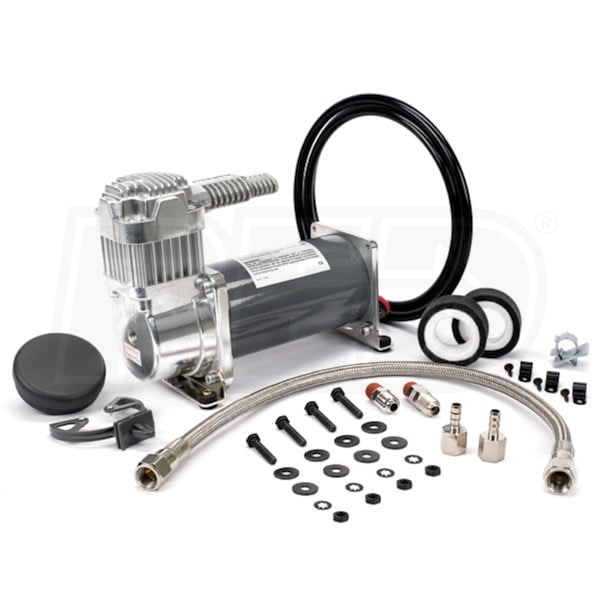

VIAIR 330C IG 12-Volt 150-PSI Industrial Grade Series Air Compressor Kit (100% Duty Cycle @ 100 PSI)

Model:

33050

Write a Review
$281.99
Free Shipping
  Learn More About Free Freight
Factory-Direct
Ships in 2-5 Business Days
Factory items ship direct from the manufacturer. Shipping times vary.

Free Shipping$281.99Buy Now
Free Shipping$281.99Visit Site
VIAIR 330C IG 12-Volt 150-PSI  Industrial Grade Series Air Compressor Kit (100% Duty Cycle @ 100 PSI)
VIAIR 330C IG 12-Volt 150-PSI Industrial Grade Series Air Compressor Kit (100% Duty Cycle @ 100 PSI)
Model: 33050
$281.99
Features
Specifications
Reviews
Accessories
How-To Articles
Manuals
Share

Features

Grade

Consumer

Style

DC Compressors

CFM

.62

Tank Size

0

  • 12-Volt Dependable IG Permanent Magnetic Motor
  • Industrial Grade units are specifically designed to fill air reservoir tanks up to 5 gallons
  • Head assembly includes a newly-developed, patents pending innovative head design for better heat dissipation
  • Certified CE spec. with outstanding sealing properties to the elements
  • Separate Stainless Steel-Braided PTFE-Lined Leader Hoses & 1/4" Check Valve Assembly
  • Protects the compressor against high amperage restarts
  • 100% At 100 PSI Duty Cycle
  • Allows you to work for up to 1 hour; run in a well ventilated area, works best with engine running
  • 16 amp maximum 12-volt amp draw
  • Quickly & efficiently puts out 1.06 CFM flow at zero PSI head pressure; 0.62 CFM @ 90 PSI
  • Remote Mount Air Filter Assembly
  • Cleaner air provides better results; 2 replacement filter elements included for easy maintenance
  • Installation instructions & air line for remote mount air filter are included
  • Compact & Versatile
  • Weighs only 8.25 pounds, measures 9″L x 4″W x 6.75″H
  • Mounting Hardware & Vibration Isolators Included
  • See Install Drawing PDF under the Specs tab for dimensions
  • Use of a pressure switch & 12V relay is recommended
  • 1 Year Limited Factory Warranty
  • Protects your investment from defects in materials and workmanship
California residents see
Warning: This product can expose you to chemicals including Lead which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov

Specifications

33050
specs product image PID-75159
Motor
Voltage
12 Volt DC
Magnetic Starter
Yes
Amp Draw
16
Engine
HP
.25
Pump
CFM
.62
CFM Rated @
90 PSI
Pump Material
Aluminum
Max PSI
150 PSI
Pump Type
Single-Stage
Pump Drive
Direct Drive
Oil Type
Oil Free
Duty Cycle
100%
Tank
Tank Size
0 Gallons
Tank Included
No
Tank Outlet
1/4 Inch
Electronic Drain Valve
No
Accessories
Pressure Gauge
No
Air Dryer
No
Air Filter
Yes
Overview
Weight
8.25 Pounds
Consumer Warranty
1 Year
Product Length
9 Inches
Product Width
4 Inches
Product Height
6.75 Inches
Power Type
Electric
UPC
818114003356
Additional Model Numbers

33050-0, 33050
