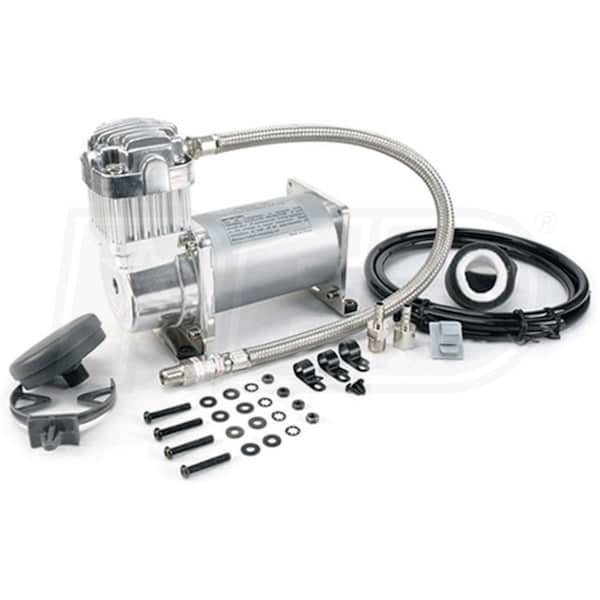

VIAIR 325C 24-Volt 150-PSI Air Compressor Kit (33% Duty Cycle @ 100 PSI)

Name: VIAIR 325C 24-Volt 150-PSI Air Compressor Kit (33% Duty Cycle @ 100 PSI)
Brand: VIAIR
SKU: 75095
Price: 271.50 USD
Availability: InStock

Model:

32538

Write A Review

$271.50

Free Shipping

*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.

Factory-Direct

Ships in 2-5 Business Days

VIAIR 325C 24-Volt 150-PSI Air Compressor Kit (33% Duty Cycle @ 100 PSI)

Model: 32538

$271.50

Accessories

Features

Specifications

Reviews

Product Q&A

How-To Articles

Manuals

Expert Recommended Accessories Selected by Joshua, our Expert

Required Accessories 9

These accessories are required to properly setup/install this product.

Optional Accessories 10

Features

Grade

Consumer

Style

DC Compressors

CFM

.82

Tank Size

0

Dependable 24-Volt Permanent Magnetic Motor
Designed to work with a low amp draw
Use of a pressure switch & 24V relay is recommended
33% At 100 PSI Duty Cycle
Work for up to 20 minutes on, 40 minutes off per hour; run in a well ventilated area, works best with engine running
13 amp maximum 24-volt amp draw; maximum 5-gallon recommended tank size
Quickly & efficiently puts out 1.59 CFM flow at zero PSI head pressure; .82 CFM @ 90 PSI
Automatic Thermal Overload Protector
Protects the compressor from overheating & damage from excessive use
1/4” NPT Stainless Steel Braided Leader Hose
Includes an inline check valve and insulated wiring for simple installation
Remote Mount Air Filter Assembly
Cleaner air provides better results; 2 replacement filter elements included for easy maintenance
Installation instructions & air line for remote mount air filter are included
Compact & Versatile
Weighs only 7.5 pounds, measures 8″L x 4″W x 6.75″H
Mounting Hardware & Vibration Isolators Included
Use thread sealant for proper installation, teflon tape not recommended. Recommended torque is 12-15 ft.lbs.
1 Year Limited Factory Warranty
Protects your investment from defects in materials and workmanship

California residents see

Warning: This product can expose you to chemicals including Lead which is known to the State of California to cause Developmental Harm.

For more information go to: www.p65Warnings.ca.gov

Specifications

32538

General Information

Product Category

Air Compressor - Portable

Motor

Voltage

24 Volt DC

Magnetic Starter

The Magnetic Starter is the "thinking cap" for the motor of the air compressor. Magnetic starters are electromagnetically operated switches that provide a safe method for certain motors to be started under a large motor load.

Yes

Amp Draw

Engine

.25

Pump

CFM

Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications

.82

CFM Rated @

90 PSI

Pump Material

Aluminum

Max PSI

PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver

150 PSI

Pump Type

Single-Stage

Pump Drive

Direct Drive

Oil Type

Oil Free

Duty Cycle

33%

Tank

Tank Size

0 Gallons

Tank Included

Tank Outlet

1/4 Inch

Electronic Drain Valve

The inexpensive and reliable electric drain valve (EDV) automatically removes condensate from your air system. It has an integral strainer to prevent clogging and saves time and money by eliminating the need for manual draining

Accessories

Pressure Gauge

Air Dryer

Air Filter

Yes

Overview

Product Category

Air Compressor - Portable

Weight

7.5 Pounds

Consumer Warranty

1 Year
