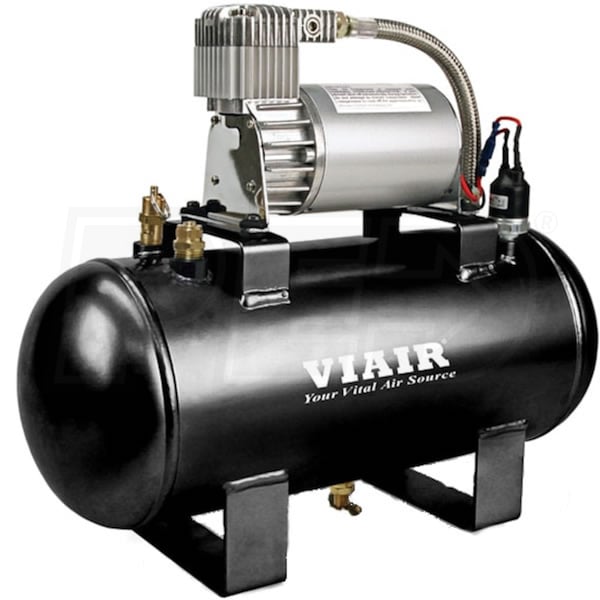

VIAIR 275C 12-Volt 1.5-Gallon 120-PSI Fast-Fill Air Source Kit (25% Duty Cycle @ 100 PSI)

VIAIR 275C 12-Volt 1.5-Gallon 120-PSI Fast-Fill Air Source Kit (25% Duty Cycle @ 100 PSI)
Model: 20003
$179.95
Factory-Direct
Ships in 2-5 Business Days
Factory items ship direct from the manufacturer.
Shipping times vary.
Free Shipping
Free ShippingNo Sales Tax* (Except IL)$179.95Buy Now
Free ShippingNo Sales Tax* (Except IL)$179.95Visit Site
No Sales Tax* (Except IL)$179.95Visit Site
Factory-Direct
Ships in 2-5 Business Days
Free Shipping
Free Shipping
*We currently CANNOT ship this product to Alaska, Hawaii or any destination outside of the United States
Share
  • Product Description
  • 1
    Reviews
  • Product Q&A
  • How-To Articles
  • Manuals
Product Description
+
Grade
Contractor
Style
DC Compressors
CFM
.79
CFM Rated @ 90 PSI
Tank Size
1.5
Gallons
Grade
Contractor
CFM
.79 CFM Rated @ 90 PSI
Tank Size
1.5 Gallons


Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."

Features
Features
  • 12-Volt DC 120 PSI Air Source Kit Is Simple To Use
  • Connect the pressure switch to fused power, make a solid ground, and connect an air line to the compression fitting
  • Fills 0 to 120 PSI in 2 minutes, 10 seconds (±10 sec); 90 to 120 PSI in 35 seconds (±5 sec)
  • Pre-Wired 90 PSI On / 120 PSI Off Pressure Switch
  • A 40-amp relay & appropriately-rated fuse is strongly recommended to preserve the life of the pressure switch
  • 25% At 100 PSI Duty Cycle
  • Allows you to work for 15 minutes on, 45 minutes off; run in a well ventilated area
  • Automatic Thermal Overload Protector
  • Protects the compressor from overheating & damage from excessive use

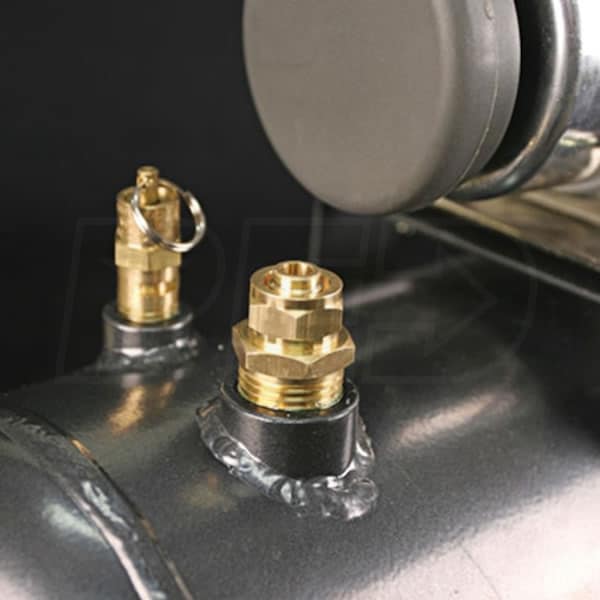

  • 150 PSI-Rated 1.5 Gallon Air Tank With 5 Ports
  • 1/4” NPT ASME safety valve set for 145 PSI; 120 PSI max working pressure
  • 1/4” NPT brass drain cock for easy maintenance
  • 1/2” NPT Port Compression Fitting
  • 3/8” (I.D.) air line connector & leader hose is pre-installed for simple hose hookup
  • Dependable Permanent Magnetic Motor
  • Vehicle engine must be running during operation to maintain performance & prevent amp spikes from harming the system
  • Compact & Versatile
  • Weighs only 15.65 pounds, measures 15.2″L x 5.9″W x 12.8″H to suit a wide variety of applications
  • 1 Year Limited Factory Warranty
  • Protects your investment from defects in materials and workmanship
Specifications
Engine
HP
.25
Motor
Voltage
12 Volt DC
Amp Draw
19
Pump
CFM
.79
CFM Rated @
90 PSI
Pump Material
Aluminum
Pump Type
Single-Stage
Max PSI
120 PSI
Pump Drive
Direct Drive
Oil Type
Oil Free
Duty Cycle
25%
Tank
Tank Size
1.5 Gallons
Tank Outlet
1/2 Inch
Electronic Drain Valve
No
Tank Orientation
Horizontal
Accessories
Pressure Gauge
No
Overview
Certification
ASME
Weight
15.65 Pounds
Product Length
15.2 Inches
Product Width
5.9 Inches
Product Height
12.8 Inches
Consumer Warranty
1 Year
Power Type
Electric
UPC
818114002007
Grade
Contractor
Style
DC Compressors
CFM
.79
CFM Rated @ 90 PSI
Tank Size
1.5
Gallons
Grade
Contractor
CFM
.79 CFM Rated @ 90 PSI
Tank Size
1.5 Gallons
