Tsurumi L4000 - 66 GPM 12-Volt DC Submersible Utility Pump
Tsurumi L4000 - 66 GPM 12-Volt DC Submersible Utility Pump
+
Share This Product
-
Product Description
-
2Reviews
-
1Product Q&A
-
Recommended Accessories
-
How-To Articles
-
Manuals
Product Description
+−
Inlet Size
N/A
Style
GPM
66
Gallons
Inlet Size
N/A
Style
Utility
GPM
66 Gallons
Features
Features
- L4000 Series DC Utility Pump
- Engineered for the tough demands of commercial & recreational duty
- Double Ball Bearing 12-Pole DC Motor
- Liquid-cooled design prevents worrying about a leaking oil-filled motor
- Salt Water Tough
- High-Impact ABS thermoplastic construction for maximum life
- Interchangeable 1-1/2" & 2" Discharge Ports
- The flexibility to choose the discharge option best for your application
- Carbon/Ceramic Mechanical Shaft Seal
- Increased abrasion resistance for increased longevity & service
- Glass/Nylon Composite Impeller
- At 12V move up to 4000 GPH @ 0' & 1400 GPH @ 10'
- Built-In Check Valve
- Holds prime & prohibits back flow through pump when stopped
- Universal Mounting Base & 6' Power Cable
- Makes this pump easy to install, service and remove

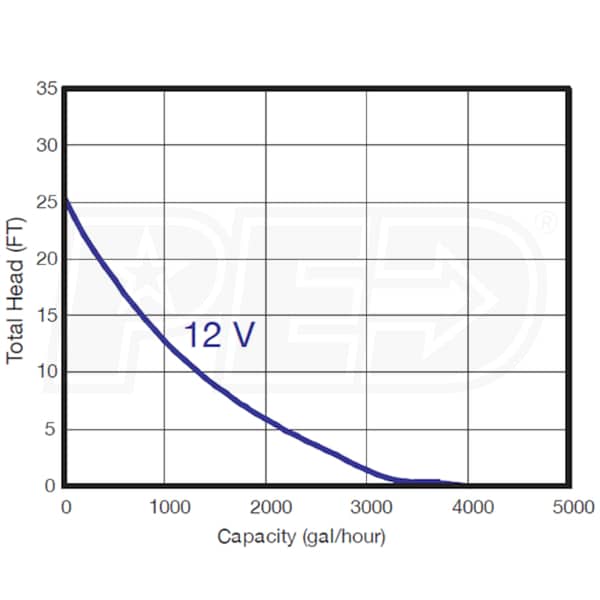

- Please See Additional Images For Pump Curve
- 1-Year Limited Warranty
Specifications
Motor
Voltage
12 Volt DC
Power Cord Length
6 Feet
Pump
Gallons Per Minute
66 Gallons
Outlet Diameter
2"
Housing Material
Thermoplastic
Impeller Material
Nylon
Handles Solids
No
Total Head Lift
33 Feet
Discharge Port Size
1-1/2 Inch and 2 Inch
Built-in check Valve
Yes
Submersible
Yes
Engine
Oil-Cooled
No
Shaft Seal
Silicon Carbide
Accessories
Hose
Sold Separately
Overview
Weight
5.4 Pounds
Consumer Warranty
1 Year
UPC
729321400046
Inlet Size
N/A
Style
GPM
66
Gallons
Inlet Size
N/A
Style
Utility
GPM
66 Gallons
Features
Features
- L4000 Series DC Utility Pump
- Engineered for the tough demands of commercial & recreational duty
- Double Ball Bearing 12-Pole DC Motor
- Liquid-cooled design prevents worrying about a leaking oil-filled motor
- Salt Water Tough
- High-Impact ABS thermoplastic construction for maximum life
- Interchangeable 1-1/2" & 2" Discharge Ports
- The flexibility to choose the discharge option best for your application
- Carbon/Ceramic Mechanical Shaft Seal
- Increased abrasion resistance for increased longevity & service
- Glass/Nylon Composite Impeller
- At 12V move up to 4000 GPH @ 0' & 1400 GPH @ 10'
- Built-In Check Valve
- Holds prime & prohibits back flow through pump when stopped
- Universal Mounting Base & 6' Power Cable
- Makes this pump easy to install, service and remove
- Please See Additional Images For Pump Curve
- 1-Year Limited Warranty
Specifications
Motor
Voltage
12 Volt DC
Power Cord Length
6 Feet
Pump
Gallons Per Minute
66 Gallons
Outlet Diameter
2"
Housing Material
Thermoplastic
Impeller Material
Nylon
Handles Solids
No
Total Head Lift
33 Feet
Discharge Port Size
1-1/2 Inch and 2 Inch
Built-in check Valve
Yes
Submersible
Yes
Engine
Oil-Cooled
No
Shaft Seal
Silicon Carbide
Accessories
Hose
Sold Separately
Overview
Weight
5.4 Pounds
Consumer Warranty
1 Year
UPC
729321400046
Product Specs
+−
Specifications
Motor
Voltage
12 Volt DC
Power Cord Length
6 Feet
Pump
Gallons Per Minute
66 Gallons
Outlet Diameter
2"
Housing Material
Thermoplastic
Impeller Material
Nylon
Handles Solids
No
Total Head Lift
33 Feet
Discharge Port Size
1-1/2 Inch and 2 Inch
Built-in check Valve
Yes
Submersible
Yes
Engine
Oil-Cooled
No
Shaft Seal
Silicon Carbide
Accessories
Hose
Sold Separately
Overview
Weight
5.4 Pounds
Consumer Warranty
1 Year
UPC
729321400046
Product Q&A
(1)
+−
Search Product Q&A's
Answered by Jim, the Water Pump Expert
+−
How many psi will this pump produce
David
from Kansas
April 09, 2016
Answer
The Tsurumi L4000 - 66 GPM (1 1/2"- 2") Submersible Utility Pump DC 12/24V, will produce a max 14.28 PSI with a max head of 33 feet at 24V or a max 10.82PSI with a max head of 25 feet at 12V.
If you have any other questions, please let me know.
If you have any other questions, please let me know.
