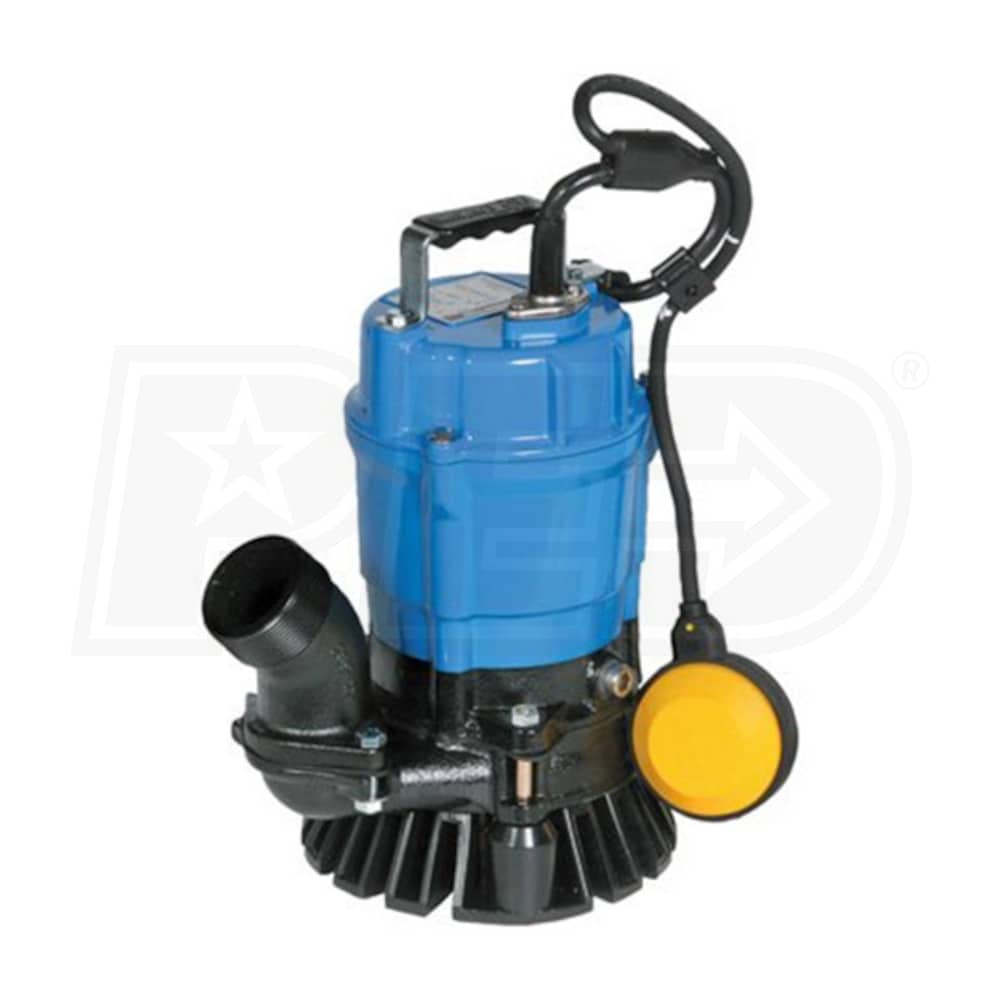

Tsurumi HSZ2.4S-62 - 53 GPM (2") Submersible Trash Pump w/ Float Switch
Model: HSZ2.4S
+
Share This Product
-
Product Description
-
23Reviews
-
3Product Q&A
-
Recommended Accessories
-
How-To Articles
-
Manuals
Product Description
+−
Inlet Size
N/A
Style
GPM
53
Gallons
Inlet Size
N/A
Style
Trash
GPM
53 Gallons
Features
Features
- Submersible Trash Pump w/ Float Switch
- Easily handles sand, debris, and solids up to 1/4"
- 1/2-HP 5.4-Amp Motor (12.5-Amp Starting) w/ Thermal Protection
- Continuous duty rated, capable of pumping up to 3180 GPH
- Grey Iron Casting Case
- Lightweight & durable design resists corrosion
- Built-In Shaft Mounted Agitator
- Suspends solids to provide minimal wear and clogging
- Urethane Semi-Vortex Impeller
- Designed for maximum durability and performance
- Double Inside Mechanical Seal w/ Silicon Faces
- Provides the longest operational life of any seal available
- Oil Lifter
- Provides lubrication of the seal faces
- V-Ring Seal Design
- Protects mechanical seal from abrasive particles
- 45° Angled Discharge Connector
- Provides a more stable installation for discharge hoses
- 20' Heavy-Duty Cord
- 2-Year Limited Warranty
Specifications
Motor
Voltage
120 Volt
Running Amps
5.4
Power Cord Length
20 Feet
Pump
Gallons Per Minute
53 Gallons
Outlet Diameter
2"
Housing Material
Cast Iron
Impeller Material
Plastic
Solids Handling Size
.25 inch
Total Head Lift
39 Feet
Submersible
Yes
Engine
Shaft Seal
Silicon Carbide
Horsepower
0.5 hp
Accessories
Float Switch
Yes
Overview
Weight
30 Pounds
Consumer Warranty
2 Years
Product Width
13.5 Inches
Product Height
15.125 Inches
UPC
894787000373
Additional Model Numbers
HSZ2.4S-62, HSZ2.4S
Inlet Size
N/A
Style
GPM
53
Gallons
Inlet Size
N/A
Style
Trash
GPM
53 Gallons
Features
Features
- Submersible Trash Pump w/ Float Switch
- Easily handles sand, debris, and solids up to 1/4"
- 1/2-HP 5.4-Amp Motor (12.5-Amp Starting) w/ Thermal Protection
- Continuous duty rated, capable of pumping up to 3180 GPH
- Grey Iron Casting Case
- Lightweight & durable design resists corrosion
- Built-In Shaft Mounted Agitator
- Suspends solids to provide minimal wear and clogging
- Urethane Semi-Vortex Impeller
- Designed for maximum durability and performance
- Double Inside Mechanical Seal w/ Silicon Faces
- Provides the longest operational life of any seal available
- Oil Lifter
- Provides lubrication of the seal faces
- V-Ring Seal Design
- Protects mechanical seal from abrasive particles
- 45° Angled Discharge Connector
- Provides a more stable installation for discharge hoses
- 20' Heavy-Duty Cord
- 2-Year Limited Warranty
Specifications
Motor
Voltage
120 Volt
Running Amps
5.4
Power Cord Length
20 Feet
Pump
Gallons Per Minute
53 Gallons
Outlet Diameter
2"
Housing Material
Cast Iron
Impeller Material
Plastic
Solids Handling Size
.25 inch
Total Head Lift
39 Feet
Submersible
Yes
Engine
Shaft Seal
Silicon Carbide
Horsepower
0.5 hp
Accessories
Float Switch
Yes
Overview
Weight
30 Pounds
Consumer Warranty
2 Years
Product Width
13.5 Inches
Product Height
15.125 Inches
UPC
894787000373
Additional Model Numbers
HSZ2.4S-62, HSZ2.4S
Product Specs
+−
Specifications
Motor
Voltage
120 Volt
Running Amps
5.4
Power Cord Length
20 Feet
Pump
Gallons Per Minute
53 Gallons
Outlet Diameter
2"
Housing Material
Cast Iron
Impeller Material
Plastic
Solids Handling Size
.25 inch
Total Head Lift
39 Feet
Submersible
Yes
Engine
Shaft Seal
Silicon Carbide
Horsepower
0.5 hp
Accessories
Float Switch
Yes
Overview
Weight
30 Pounds
Consumer Warranty
2 Years
Product Width
13.5 Inches
Product Height
15.125 Inches
UPC
894787000373
Additional Model Numbers
HSZ2.4S-62, HSZ2.4S
Product Q&A
(3)
+−
Search Product Q&A's
Answered by Jim, the Water Pump Expert
+−
what is the minimum depth at which the float switch can be set to be activated?
Matt
from South Carolina
January 17, 2015
Answer
The minimum "ON" level for the Tsurumi HSZ2.4S-62 is 15-1/8".
Was this answer helpful?
Yes
2
No
0
+−
Hi Jim,
I am looking for a pump that can not only pump standing water but one that I can use a suction hose to suction up water from a hole in the floor and then have it discharged out a discharge hose. Would this pump be capable of this? What would I need as far as hoses and what would be the procedure?
Thanks.
David Trost
from Virginia
January 11, 2014
Answer
Thank you for your interest in Water Pumps Direct. Unfortunately, we do not offer any type of dual action pump that can work as both a submersible and non-submersible pump for your application. You would need to purchase a submersible pump like the Tsurumi HSZ2.4S-62 AND something like a Pacer ELECTRIC DEWATERING PUMP.
Was this answer helpful?
Yes
0
No
0
+−
How long is the elec cord?
Peter
from New York
January 23, 2013
Answer
This Trash pump has a 20' Heavy-Duty Cord.
Was this answer helpful?
Yes
0
No
0
