Features
Inlet Size
4 Inch
Style
Trash
GPM
500 Gallons
Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
- PTO-Powered 4” Self-Priming Trash Pump
- For high volume water transfer/evacuation applications
- Primes in seconds, not minutes, using the tractor's power
- The ability to pump solids up to 2" diameter
- Designed To Last For Years, No Engine To Maintain
- Die cast aluminum centrifugal pump w/ cast iron wear parts
- Viton® mechanical seal, Buna-N flapper valve and o-rings
- TGIC Powder Coated Steel Frame
- Extends frame life from everyday wear and tear
- 3-Point Hitch Design
- Includes tractor mounting hardware & PTO Shaft
- For Use With 15-HP or Greater, Category 1 Tractors (540 RPM)
- Runs for over 2 hours on 1 gallon of fuel
Specifications
TP-4PTR
General Information
Product Category
Water Pump
Pump
Gallons Per Minute
500 Gallons
Inlet Diameter
4 Inch
Outlet Diameter
4 Inch
Self Priming
Yes
Pump Head Material
Aluminum
Pump Housing Drain
Yes
Quick Clean Out
No
Mechanical Seal Material
Viton
Impeller Material
Cast Iron
Solids Handling Size
2 inch
Suction Head
20 Feet
Maximum PSI
50
Total Head Lift
120 Feet
Submersible
No
Engine
Continuous Operation
Yes
Required HP
15 HP
Overview
Product Category
Water Pump
Weight
325 Pounds
Consumer Warranty
1 Year
Product Length
36 Inches
Product Width
32 Inches
Product Height
33 Inches
Accessories
Tool Kit
No
Strainer
Sold Separately
Float Switch
No
Hose Couplings
No
Hose
Sold Separately
Hose Bands
No
Lifting Hook
No
Wheel Kit
No
Reviews
(1)
TrunkPump TP-4PTR Reviews & Ratings
Product Q&A
Be the First to Ask A Question
Answered by Jim, the Water Pump Expert
How-To Articles
What to Do Before, During, and After a Flood
Flooding is scary. It can happen anytime, anywhere, and causes damage without d...
How to Pick the Perfect Trash Pump
Water pumps are meant to pump clear water. But when you introduce debris and ot...
Power Equipment How-To Library
Articles, Tips and Buying Guides from Our Experts
Manuals
Ask A Question!
*Required Fields
+
Thank You For Submitting Your Question
Your submission has been sent successfully. Please give our experts up to two business days to respond.
Media Gallery

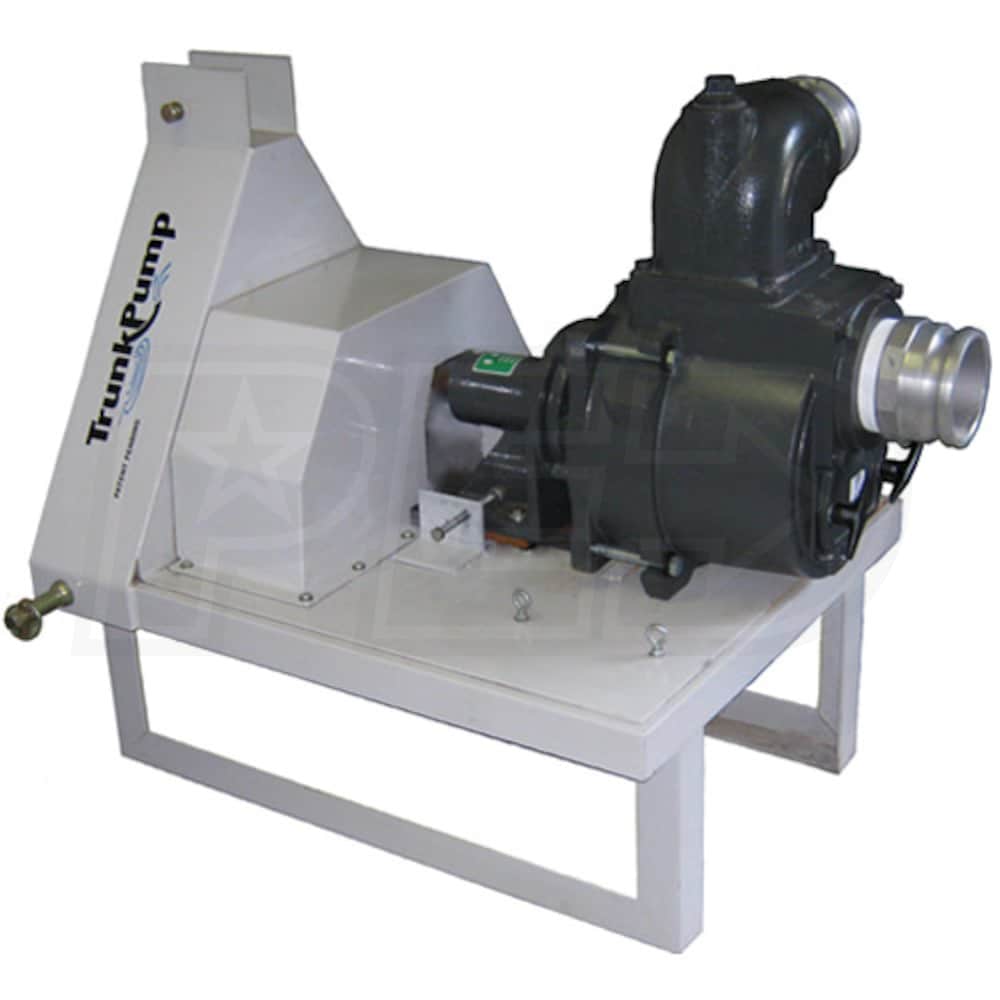

TrunkPump TP-4PTR - 500 GPM (4") PTO Trash Pump
