Features
Inlet Size
3 Inch
Style
Trash
GPM
320 Gallons
Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
- PTO-Powered 3” Self-Priming Trash Pump
- For water transfer/evacuation applications
- Primes in seconds, not minutes, using the tractor's power
- The ability to pump solids up to 1.25" diameter
- Heavy-Duty, withstands abuse, great for the rental market
- Designed To Last For Years, No Engine To Maintain
- Die cast aluminum centrifugal pump w/ cast iron wear parts
- Silicon carbide, self-lubricated seal w/ graphite infused seat
- EPDM elastomers
- TGIC Powder Coated Steel Frame
- Extends frame life from everyday wear and tear
- 3-Point Hitch Design
- Includes tractor mounting hardware & PTO Shaft
- For Use With 8-HP or Greater, Category 1 Tractors (540 RPM)
- Runs for over 2 hours on 1 gallon of fuel
Specifications
TP-3PTR
General Information
Product Category
Water Pump
Pump
Gallons Per Minute
320 Gallons
Inlet Diameter
3 Inch
Outlet Diameter
3 Inch
Self Priming
Yes
Pump Head Material
Aluminum
Pump Housing Drain
Yes
Quick Clean Out
No
Mechanical Seal Material
Silicon Carbide
Impeller Material
Cast Iron
Solids Handling Size
1.25 inch
Suction Head
25 Feet
Maximum PSI
40
Total Head Lift
105 Feet
Submersible
No
Engine
Continuous Operation
Yes
Required HP
8 HP
Overview
Product Category
Water Pump
Weight
225 Pounds
Consumer Warranty
1 Year
Product Length
32 Inches
Product Width
26 Inches
Product Height
37 Inches
Accessories
Tool Kit
No
Strainer
Sold Separately
Float Switch
No
Hose Couplings
No
Hose
Sold Separately
Hose Bands
No
Lifting Hook
No
Wheel Kit
No
Reviews
(1)
TrunkPump TP-3PTR Reviews & Ratings
Product Q&A
(1)
Product Questions
Answered by Jim, the Water Pump Expert
3" PTO says no quick clean out; so what is involved in cleaning it out once it becomes clogged with debris?
Bill
from Georgia
October 23, 2012
How-To Articles
What to Do Before, During, and After a Flood
Flooding is scary. It can happen anytime, anywhere, and causes damage without d...
How to Pick the Perfect Trash Pump
Water pumps are meant to pump clear water. But when you introduce debris and ot...
Power Equipment How-To Library
Articles, Tips and Buying Guides from Our Experts
Manuals
Ask A Question!
*Required Fields
+
Thank You For Submitting Your Question
Your submission has been sent successfully. Please give our experts up to two business days to respond.
Media Gallery

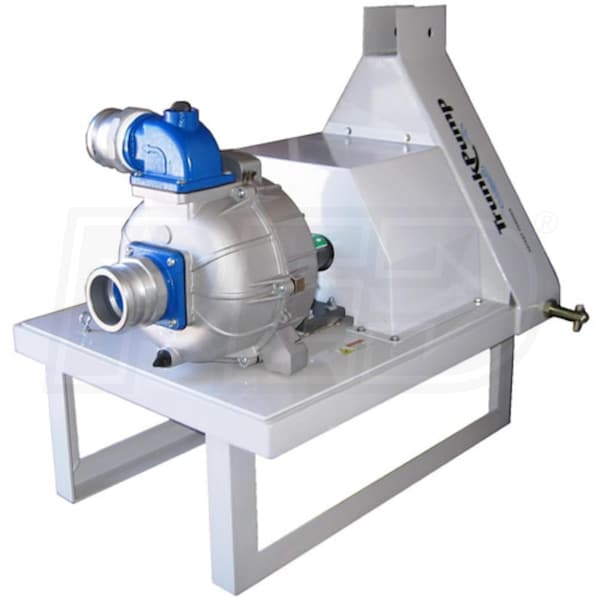

TrunkPump TP-3PTR - 320 GPM (3") PTO Trash Pump
