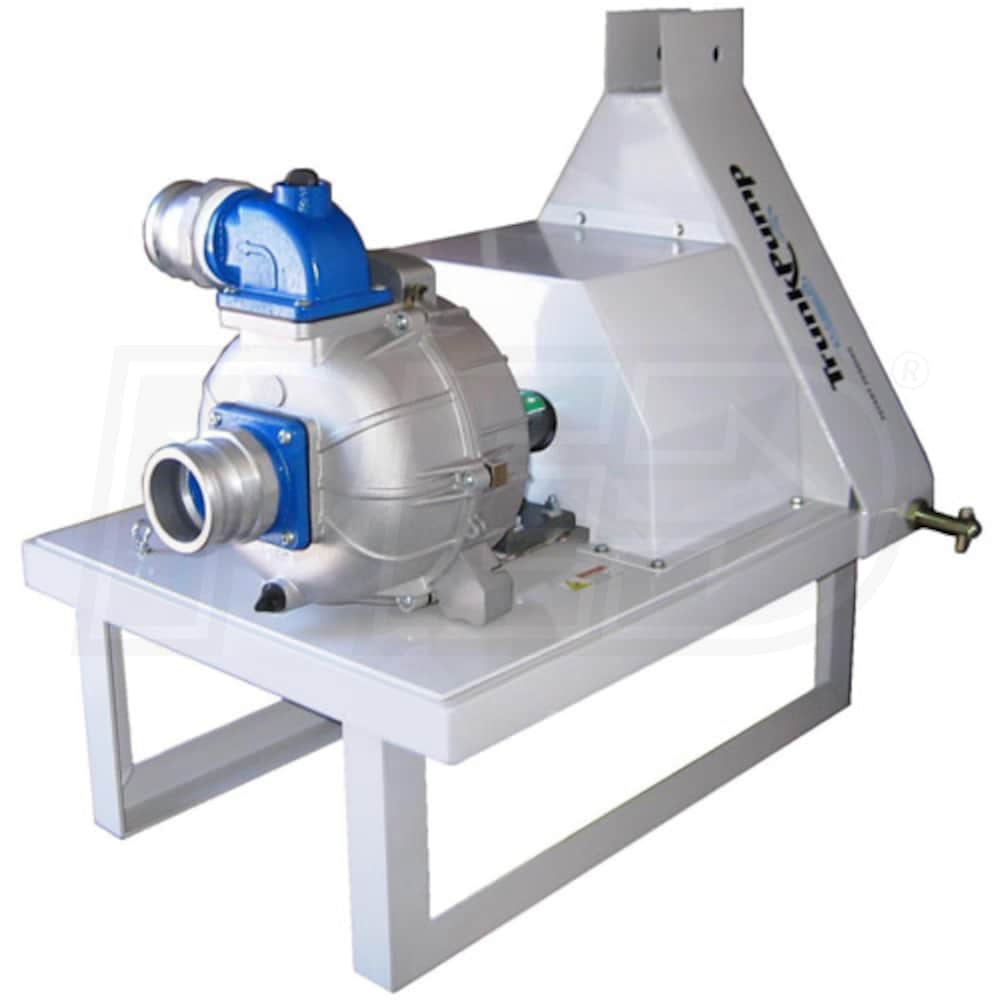

TrunkPump TP-2PTP - 180 GPM (2") High Pressure PTO Water Pump
Model: TP-2PTP
+
Share This Product
-
Product Description
-
1Reviews
-
Product Q&A
-
Recommended Accessories
-
How-To Articles
-
Manuals
Product Description
+−
Inlet Size
2"
Style

GPM
180
Gallons
Inlet Size
2"
Style
Dewatering
GPM
180 Gallons
Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
Features
Features
- PTO-Powered 2” Self-Priming High Pressure Pump
- For irrigation and high head/pressure applications
- Primes in seconds, not minutes, using the tractor's power
- Great for use when moderate volume is required
- Designed To Last For Years
- No engine to maintain
- Die cast aluminum centrifugal pump w/ aluminum closed impeller
- Cast iron volute & EPDM seal w/ carbon and ceramic faces
- TGIC Powder Coated Steel Frame
- Extends frame life from everyday wear and tear
- 3-Point Hitch Design
- Includes tractor mounting hardware & PTO Shaft
- For Use With 8-HP or Greater Category 1 Tractors (540 RPM)
- Runs for over 2 hours on 1 gallon of fuel
Specifications
Pump
Gallons Per Minute
180 Gallons
Inlet Diameter
2"
Outlet Diameter
2"
Self Priming
Yes
Pump Head Material
Aluminum
Pump Housing Drain
Yes
Quick Clean Out
No
Mechanical Seal Material
Ceramic Carbon
Impeller Material
Aluminum
Suction Head
18 Feet
Maximum PSI
88
Total Head Lift
205 Feet
Submersible
No
Engine
Continuous Operation
Yes
Required HP
8 HP
Accessories
Tool Kit
No
Strainer
Sold Separately
Hose Couplings
No
Float Switch
No
Hose
Sold Separately
Hose Bands
No
Lifting Hook
No
Wheel Kit
No
Overview
Weight
225 Pounds
Consumer Warranty
1 Year
Product Length
32 Inches
Product Width
26 Inches
Product Height
37 Inches
Inlet Size
2"
Style

GPM
180
Gallons
Inlet Size
2"
Style
Dewatering
GPM
180 Gallons
