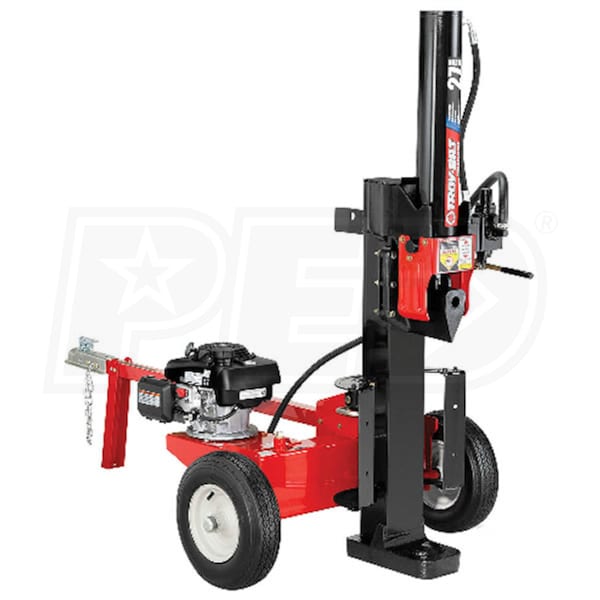

Troy-Bilt 27-Ton Horizontal / Vertical Gas Log Splitter

Model:

24BG57M1766

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Troy-Bilt 27-Ton Horizontal / Vertical Gas Log Splitter
Troy-Bilt 27-Ton Horizontal / Vertical Gas Log Splitter
Model: 24BG57M1766
Product Discontinued
Features
Specifications
Reviews
How-To Articles
Manuals

Features

Troy-Bilt 27-Ton Horizontal / Vertical Gas Log Splitter


Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
  • 27 Tons Of Ram Force
  • Quickly makes a stack of firewood out of the largest trees & logs
  • 208cc Vertical OHV/OHC Troy-Bilt® Engine
  • Dependable & easy to start
  • Heavy-Duty 2 Stage Pump
  • Work faster with automatic return & 19-second cycle time
  • Easily Change From Horizontal To Vertical Splitting
  • Save your back & roll big chunks into place in the vertical mode
  • Horizontal waist-height mode takes care of most other splitting
  • Log Cradles Included
  • Holds split wood on the beam, less bending & straining your back
  • Cast Iron Splitting Wedge
  • Durable wedge can be resharpened, & replaced if necessary
  • 25 Inch Maximum Log Capacity
  • Accepts logs over 2 feet long
  • 3 Gallon Hydraulic Reservoir
  • Hydraulic fluid is included
  • Hitch & Jack Stand Included
  • Some assembly required; see Owner's Manual for details

Specifications

24BG57M1766
specs product image PID-9101
Engine
Engine Brand
Troy-Bilt
Starting System
Recoil Start
CC
208 CCs
Hydraulics
Auto Return
Yes
Hydraulic Filter
Yes
Hydraulic Oil Included
Yes
Hydraulic Reservoir Size
3 Gallons
Cylinder Diameter
4.5 Inches
Cylinder Length
24 Inches
Cycle Time
19 Seconds
Tonnage
27 Tons
Overview
Assembly Required
No
Weight
600 Pounds
Made in USA
No
Consumer Warranty
2 Years
UPC
043033562008
Wedge
Wedge Material
Cast Iron
Wedge Style
2-way
Replaceable Wedge
Yes
Sharpenable Wedge
Yes
Log Capacity
Max Log Length
25 Inches
Towing
Towable
Yes
D.O.T. Lights
No
Fenders
No
Hitch Type
2 Inch Ball Hitch
Max Towing Speed
45 MPH
Accessories
Jack Stands
Included
Log Cradles
Included
Wood Type Hardness Rating 6" Seasoned 6" Green 12" Seasoned 12" Green 24" Seasoned 24" Green
Alder 590 Lbs. 4+ Tons 6+ Tons 7+ Tons 9+ Tons 27+ Tons 30+ Tons
Ash 1320 Lbs. 7+ Tons 9+ Tons 16+ Tons 22+ Tons 30+ Tons 35+ Tons
Aspen 420 Lbs. 4+ Tons 6+ Tons 7+ Tons 9+ Tons 27+ Tons 30+ Tons
Basswood 410 Lbs. 4+ Tons 6+ Tons 7+ Tons 9+ Tons 27+ Tons 30+ Tons
Beech 1300 Lbs. 7+ Tons 9+ Tons 16+ Tons 22+ Tons 30+ Tons 35+ Tons
Birch 1470 Lbs. 7+ Tons 9+ Tons 16+ Tons 22+ Tons 30+ Tons 35+ Tons
Boxelder 720 Lbs. 6+ Tons 8+ Tons 10+ Tons 13+ Tons 27+ Tons 30+ Tons
Buckeye 350 Lbs. 4+ Tons 6+ Tons 7+ Tons 9+ Tons 27+ Tons 30+ Tons
Catalpa 550 Lbs. 4+ Tons 6+ Tons 7+ Tons 9+ Tons 27+ Tons 30+ Tons
Cedar 900 Lbs. 6+ Tons 8+ Tons 15+ Tons 20+ Tons 27+ Tons 30+ Tons
Cherry 950 Lbs. 6+ Tons 8+ Tons 15+ Tons 20+ Tons 27+ Tons 30+ Tons
Cottonwood 430 Lbs. 4+ Tons 6+ Tons 7+ Tons 9+ Tons 27+ Tons 30+ Tons
Dogwood 2150 Lbs. 10+ Tons 13+ Tons 22+ Tons 27+ Tons 30+ Tons 35+ Tons
Elm 1540 Lbs. 10+ Tons 13+ Tons 16+ Tons 22+ Tons 30+ Tons 35+ Tons
Fir 710 Lbs. 6+ Tons 8+ Tons 10+ Tons 13+ Tons 27+ Tons 30+ Tons
Hickory 1820 Lbs. 10+ Tons 13+ Tons 22+ Tons 27+ Tons 30+ Tons 35+ Tons
Locust 1700 Lbs. 10+ Tons 13+ Tons 22+ Tons 27+ Tons 30+ Tons 35+ Tons
Magnolia 1020 Lbs. 7+ Tons 9+ Tons 16+ Tons 22+ Tons 30+ Tons 35+ Tons
Maple 1450 Lbs. 7+ Tons 9+ Tons 16+ Tons 22+ Tons 30+ Tons 35+ Tons
Oak 1620 Lbs. 10+ Tons 13+ Tons 22+ Tons 27+ Tons 30+ Tons 35+ Tons
Pine 860 Lbs. 6+ Tons 8+ Tons 10+ Tons 13+ Tons 27+ Tons 30+ Tons
Poplar 540 Lbs. 4+ Tons 6+ Tons 7+ Tons 9+ Tons 27+ Tons 30+ Tons
Spruce 510 Lbs. 4+ Tons 6+ Tons 7+ Tons 9+ Tons 27+ Tons 30+ Tons
Sweet Gum 850 Lbs. 6+ Tons 8+ Tons 10+ Tons 13+ Tons 27+ Tons 30+ Tons
Walnut 1010 Lbs. 7+ Tons 9+ Tons 16+ Tons 22+ Tons 30+ Tons 35+ Tons

Reviews

(9)
Troy-Bilt 24BG57M1766 Reviews & Ratings
Customer Rating
4.44
(9 Ratings)
5
(6)
4
(1)
3
(2)
2
(0)
1
(0)
27-ton Troy-Bilt Wood Splitter
By William J.
Meridian, Mississippi
Review Posted 11/29/2015
Great machine for splitting, but log side cradles are not strong enough. the bolts continue to shear.
William J. Recommends This
Was this review helpful?
Rating Breakdown
Features
4/5
icon-review-marker
Quality
5/5
icon-review-marker
Performance
5/5
icon-review-marker
Value
4/5
icon-review-marker
Verified Buyer
Verified Buyer
Troy-Bilt 27-Ton Horizontal / Vertical Gas Log Splitter
By Katherine G.
Darrington, Washington
Purchased 09/16/2015 |
Review Posted 10/09/2015
I wanted to purchase a new log splitter for my husband as our old one was wearing out. Local stores were sold out for the season. I found Log Log Splitters Direct on line and they had one available and it was the size we were looking for.
Katherine G. Recommends This
Was this review helpful?
Rating Breakdown
Features
4/5
icon-review-marker
Quality
5/5
icon-review-marker
Performance
5/5
icon-review-marker
Value
4/5
icon-review-marker
Low Quality of Troy-Bilt Logsplitter
By Harry T.
Pennsylvania
Review Posted 10/01/2015
I owned a 27-ton Troy-Bilt log splitter for 6 years, which I purchased new. I split about 5-10 cords a year with it. The valve control handle broke once a few years ago and I had to pay to get it repaired.

Just this year, the cylinder broke and hydraulic fluid leaked out after a weld gave way near the valve handle, going into the cylinder wedge. To me, the welding is basic quality control, it should not break.

I called the manufacturer and found out there was another issue as well, and they had a formal recall for it. Three issues with the quality of the machine in 6 years.
Harry T. Does Not Recommend This
Was this review helpful?
Rating Breakdown
Features
5/5
icon-review-marker
Quality
1/5
icon-review-marker
Performance
5/5
icon-review-marker
Value
3/5
icon-review-marker
Verified Buyer
Verified Buyer
Two Fold Review
By Mary P.
Huntingtown, Maryland
Purchased 07/05/2015 |
Review Posted 09/15/2015
To whom it may concern:(A) The log splitter itself works great and is very powerful and have found nothing that it cannot split. (B) The power source is the easiest to start with excessive power, would recommend it to anyone. 2.Engineering leaves a lot to be desired. I feel a recall should be done to the base landing gear in the front of the frame.

The drop down channel support cannot be lowered,the channel is too long as a result the unit must be removed from my Polaris six wheeler (500 sportsman) to get ground clearance. The penny wise & dollar foolish left my Grandson with two smashed hands & eight stitches in his right hand.

I am going to put a small cranking gear on the front to accommodate any height needed to insure a positive disconnect without incident. I am expecting a reply to this review and would appreciate aid in cost of the change & hospital bills.

I am not an engineer but will make my unit safe for anyone using it. I do not want the situation to get ugly. Respectfully Russell Piovesan 2019 Solomons Island Rd, Huntingtown, Md 20639 PHONE 410 5353026.
Mary P. Recommends This
Was this review helpful?
Rating Breakdown
Features
1/5
icon-review-marker
Quality
5/5
icon-review-marker
Performance
5/5
icon-review-marker
Value
1/5
icon-review-marker
Verified Buyer
Verified Buyer
Excellent
By Elwood S.
Kinde, Michigan
Purchased 05/31/2015 |
Review Posted 07/02/2015
I prep it, and it started on the first pull ! I couldn't believe it. Plus the pull was extremely easy! Half the tension of other motors. I really love the cradle arms, which were standard. That takes a lot of strain off my back. I also like the dislodger, again standard equipment. It is well built and I love it. I don't have to rent one now and can use this at my leisure.
Elwood S. Recommends This
Was this review helpful?
Rating Breakdown
Features
5/5
icon-review-marker
Quality
5/5
icon-review-marker
Performance
4/5
icon-review-marker
Value
5/5
icon-review-marker
Splits everything
By James
Michigan
Review Posted 10/25/2014
Bought this splitter a few months ago and wish I would have bought it a long time ago!

I split about 10 cords so far this year and it has went through everything. There was one nasty crotch in an old oak tree that I did have to wiggle it a few times, but it ultimately did split through it. Only problem is I can't find a larger log catcher for it.
James Recommends This
Was this review helpful?
Rating Breakdown
Features
4/5
icon-review-marker
Quality
5/5
icon-review-marker
Performance
5/5
icon-review-marker
Value
5/5
icon-review-marker
Pros:
Price, Light Weight, Exceeded Expectations, Reliable
Does the job
By Ray
New York
Review Posted 05/15/2014
Works great, splits anything you can roll over to it.. Lightweight to move around.. Starts one pull.. Split about 10 cords, yet to drop a log on the engine, guess if you are a klutz, that would be an issue..
Ray Recommends This
Was this review helpful?
Rating Breakdown
Features
5/5
icon-review-marker
Quality
5/5
icon-review-marker
Performance
5/5
icon-review-marker
Value
5/5
icon-review-marker
Pros:
Price, Light Weight, Exceeded Expectations, I'd Buy It Again
Follow up
By Frank T.
Gladwyne, Pennsylvania
Review Posted 04/15/2014
I split over 100 cords, still going strong. Still good for the money with my trusty Honda engine. I would not buy it again though, only because I need a four way wedge and a log lift. In other words my back will break down before this machine. Perfect for a home owner.. I guess its for sale... t.b.
Frank T. Recommends This
Was this review helpful?
Rating Breakdown
Features
4/5
icon-review-marker
Quality
5/5
icon-review-marker
Performance
5/5
icon-review-marker
Value
5/5
icon-review-marker
Pros:
Durable, Easy To Use, Price, Reliable
Cons:
No Cons
Troy Bilt
By Frank T.
gladwyne, Pennsylvania
Review Posted 12/07/2012
Good for the money, I did 40 cords and simply the thing broke and I had to ship it, but I have the 3 yr. plan. Starts up everytime.
It's a shame the logs fall on the motor in the horizontal position.
Was this review helpful?
Rating Breakdown
Features
3/5
icon-review-marker
Quality
3/5
icon-review-marker
Performance
3/5
icon-review-marker
Value
3/5
icon-review-marker
