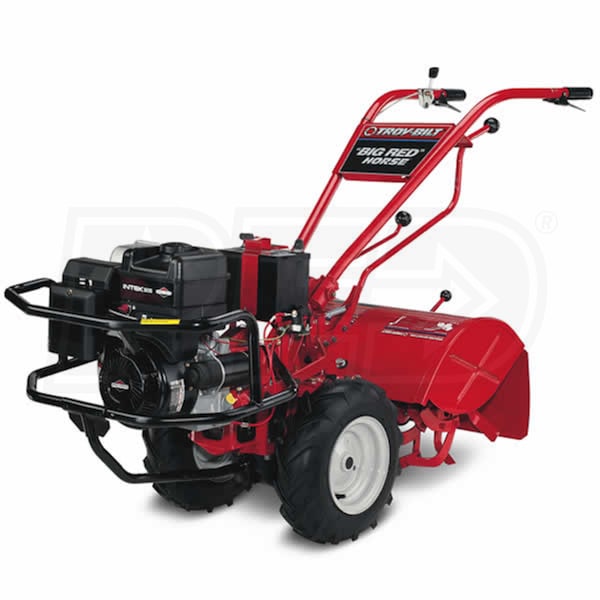

Troy-Bilt Big Red™ (20") 306cc Forward Rotating Rear Tine Tiller w/ Electric Start

Troy-Bilt Big Red™ (20") 306cc Forward Rotating Rear Tine Tiller w/ Electric Start
Our Price
Compare Prices
Shipping Info
Model: 21AE682L766
(Based on expert analysis, manufacturer ratings and customer reviews)
4.2 out of 54.2 out of 54.2 out of 54.2 out of 54.2 out of 5
Number of Reviews (18)
Write A Review
$2,599.99

Only 5 In-Stock
Ships Monday, Jul 22nd
Shipping Crate Icon
Free Shipping
Add-Ons
+$50.00
Extended Warranty
Excludes CA

In-Stock Free Shipping$2,599.99Buy Now
In-Stock Free Freight$2,599.99Visit Site
$2,649.99Visit Site
Only 5 In-Stock
Ships Monday, Jul 22nd
Free Freight
Free Freight
Lift Gate Services
Lift Gate Service
*We currently CANNOT ship this product to California or any destination outside of the United States
Share
  • Product Description
  • 18
    Reviews
  • 1
    Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+
Stirring
Stirring
Yes
Breaking
Breaking
Hard SoilHard Soil
Engine
Tines
Rear Tine Tillers
Tine Rotation
Forward Rotation
Width / Depth
20 / 6
Stirring
Yes
Breaking
Hard Soil
Engine
Briggs & Stratton
Tines
Rear
Tine Rotation
Forward
Width / Depth
20 / 6 Inches
Features
Features
  • 306cc Briggs & Stratton Powerbuilt Engine
  • Electric start makes starting an easy task
  • 4 forward, neutral & 2 reverse speeds
  • 14.5 ft-lbs gross torque
  • Provides the power needed to cultivate the most compact soil
  • Rugged Cast-Iron Transmission With Bronze Gear Drive
  • Perfect for soil preparation and groundbreaking
  • Designed for gardens over 2,500 square feet
  • Forward-Rotating 12" Diameter Bolo Tines
  • Adjustable tilling depth up to 6 inches
  • 20" tilling width w/ full-sided tine shields
  • Provides added safety & operator protection
  • 16" x 4" AG Tires
  • Designed for greater maneuverability
  • Just One Hand« Operation
  • Plow style handle makes this tiller easy to use
  • Additional Features
  • Standard Power Take-Off (PTO)
  • Full Wrap-Around Front Bumper
  • 2-Year Limited Warranty
Specifications
Motor
Battery Included
Included
Engine
Engine Brand
Briggs & Stratton
Starting System
12-Volt Key Start
CC
306 CCs
Engine Cycle
4-Cycle
Engine Cylinders
1 Cylinder
Oil Filter
No
Torque
14.5 Lbs
Tines
Tine Position
Rear
Tine Direction
Forward Rotation
Tine Diameter
12 Inches
Depth Adjustments
7 Positions
Tilling Width Min
20 Inches
Tilling Width Max
20 Inches
Tilling Depth Min
6 Inches
Tilling Depth Max
6 Inches
Drive
Forward Speeds
4 Forward
Reverse Speeds
2 Reverse
Transmission
Cast-Iron Gear Box
Accessories
Side Shield
Yes
Wheels
Front Tire Size
16 Inch
Overview
Made in USA
Yes
Weight
389 Pounds
Product Length
62 Inches
Product Width
27 Inches
Product Height
33 Inches
Consumer Warranty
2 Years
UPC
043033572601
Stirring
Stirring
Yes
Breaking
Breaking
Hard SoilHard Soil
Engine
Tines
Rear Tine Tillers
Tine Rotation
Forward Rotation
Width / Depth
20 / 6
Stirring
Yes
Breaking
Hard Soil
Engine
Briggs & Stratton
Tines
Rear
Tine Rotation
Forward
Width / Depth
20 / 6 Inches
Features
Features
  • 306cc Briggs & Stratton Powerbuilt Engine
  • Electric start makes starting an easy task
  • 4 forward, neutral & 2 reverse speeds
  • 14.5 ft-lbs gross torque
  • Provides the power needed to cultivate the most compact soil
  • Rugged Cast-Iron Transmission With Bronze Gear Drive
  • Perfect for soil preparation and groundbreaking
  • Designed for gardens over 2,500 square feet
  • Forward-Rotating 12" Diameter Bolo Tines
  • Adjustable tilling depth up to 6 inches
  • 20" tilling width w/ full-sided tine shields
  • Provides added safety & operator protection
  • 16" x 4" AG Tires
  • Designed for greater maneuverability
  • Just One Hand« Operation
  • Plow style handle makes this tiller easy to use
  • Additional Features
  • Standard Power Take-Off (PTO)
  • Full Wrap-Around Front Bumper
  • 2-Year Limited Warranty
Specifications
Motor
Battery Included
Included
Engine
Engine Brand
Briggs & Stratton
Starting System
12-Volt Key Start
CC
306 CCs
Engine Cycle
4-Cycle
Engine Cylinders
1 Cylinder
Oil Filter
No
Torque
14.5 Lbs
Tines
Tine Position
Rear
Tine Direction
Forward Rotation
Tine Diameter
12 Inches
Depth Adjustments
7 Positions
Tilling Width Min
20 Inches
Tilling Width Max
20 Inches
Tilling Depth Min
6 Inches
Tilling Depth Max
6 Inches
Drive
Forward Speeds
4 Forward
Reverse Speeds
2 Reverse
Transmission
Cast-Iron Gear Box
Accessories
Side Shield
Yes
Wheels
Front Tire Size
16 Inch
Overview
Made in USA
Yes
Weight
389 Pounds
Product Length
62 Inches
Product Width
27 Inches
Product Height
33 Inches
Consumer Warranty
2 Years
UPC
043033572601
Product Specs
+
Specifications
Motor
Battery Included
Included
Engine
Engine Brand
Briggs & Stratton
Starting System
12-Volt Key Start
CC
306 CCs
Engine Cycle
4-Cycle
Engine Cylinders
1 Cylinder
Oil Filter
No
Torque
14.5 Lbs
Tines
Tine Position
Rear
Tine Direction
Forward Rotation
Tine Diameter
12 Inches
Depth Adjustments
7 Positions
Tilling Width Min
20 Inches
Tilling Width Max
20 Inches
Tilling Depth Min
6 Inches
Tilling Depth Max
6 Inches
Drive
Forward Speeds
4 Forward
Reverse Speeds
2 Reverse
Transmission
Cast-Iron Gear Box
Accessories
Side Shield
Yes
Wheels
Front Tire Size
16 Inch
Overview
Made in USA
Yes
Weight
389 Pounds
Product Length
62 Inches
Product Width
27 Inches
Product Height
33 Inches
Consumer Warranty
2 Years
UPC
043033572601
Reviews
(18)
+
Troy-Bilt 21AE682L766 Reviews & Ratings
71% of Reviewers Recommend This Product
Product Q&A
(1)
+
Search Product Q&A's Answered by Jake, the Tiller Expert
icon-social-fb1
+
Hi. Will you explain the 'dual rotating' tines verses the 'counter rotating' tines. I am perplexed in buying between these two features. Thank you! Mike
Mike
from Pennsylvania
July 14, 2011
Answer
Mike - you may want to take a look at our buyer's guide for rear tine tillers. This will answer your question in detail, and give you some other things to think about and look for when choosing the right tiller. Just click on this link: Pick the perfect tiller
