Features
- 19HP/540cc Briggs & Stratton Intek Series OHV Engine
- Full-pressure lubrication with spin on oil filter
- OHV design for increased efficiency and optimal power transfer
- Foot-Pedal Automatic CVT Transmission
- Very much like driving your car - the farther you push the pedal the faster you go
- Transmission is designed to mow lawns - not to pull heavy loads
- 46-Inch, 2-Blade Steel Mower Deck
- 13-gauge stamped steel deck design
- Lever operated deck lift and PTO (blade) engagement
- 2 anti-scalp gauge wheels allow the deck to float over the turf
- Deck wash port for easier cleaning underneath deck
- Operator-Controlled Mow In Reverse
- Lets you engage cutting blades while in reverse for quicker mowing
- Soft Touch Steering Wheel
- Turning and maneuvering that's easier on the hands
- 18-inch turning radius
- Fully-Welded Step-Thru Frame
- Makes it easy to get on and off
Specifications
TB46

Engine
Engine Brand
Briggs & Stratton
Starting System
12-Volt Key Start
Engine Cycle
4-Cycle
HP
19 HP
CC
540 CCs
Fuel Tank Size
2.3 Gallons
Engine Cylinders
1 Cylinder
Oil Filter
Yes
Consumer Engine Warranty
2 Years
Motor
Battery Voltage
12 Volts
Battery Type
Lead Acid
Battery Included
Included
Overview
Weight
505 Pounds
Consumer Warranty
2 Years
Product Length
71.0 Inches
Product Width
48.5 up/56.0 down Inches
UPC
043033566167
Additional Model Numbers
13AL78KT066, TB46
Deck
Cutting Options
3-in-1 (Side-Discharge/Bag/Mulch)
Deck Material
13-Gauge
Deck Construction
Stamped
Spindle Material
Aluminum
Blades
2 Blades
Deck Positions
5 Positions
Cutting Width
46 Inches
Cutting Height
1.5-3.5 Inches
Deck Lift System
Manual Hand Operated
Engagement
Manual
Deck Drive
Belt
Drive
Speeds
Variable
Maximum Speed
5.2 MPH
Maximum Reverse Speed
2.5 MPH
Drive Wheels
Rear Wheels
Transmission Type
CVT - Automatic
Accessories
Rear Bagger
Sold Separately
Seat Type
Mid Back
Hour Meter
Sold Separately
Arm Rests
No
Front Bumper
No
Trailer Hitch
No
Mulcher Kit
Sold Separately
Headlights
Included
Wheels
Front Tire Size
15 x 6 Inch
Front Axle
Stamped Steel
Rear Tire Size
20 x 8 Inch
Tire Type
Pneumatic Wheels
Reviews
Troy-Bilt TB46 Reviews & Ratings
Be the First to Write a Review
Do you own this product?
Please share your insights with fellow shoppers.
Please share your insights with fellow shoppers.
How-To Articles
Manuals
TB46

Ask A Question!
*Required Fields
+
Thank You For Submitting Your Question
Your submission has been sent successfully. Please give our experts up to two business days to respond.

Media Gallery

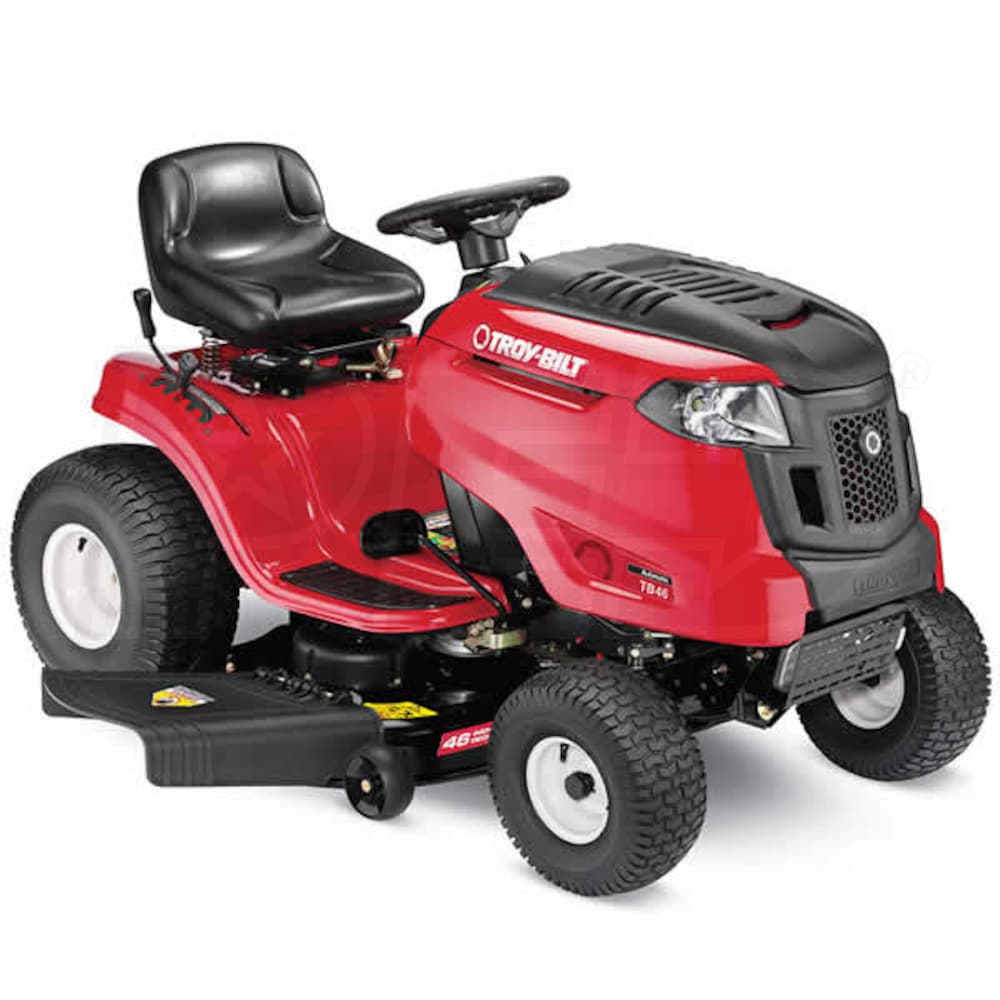

Troy-Bilt TB46 (46") 19HP Lawn Tractor
