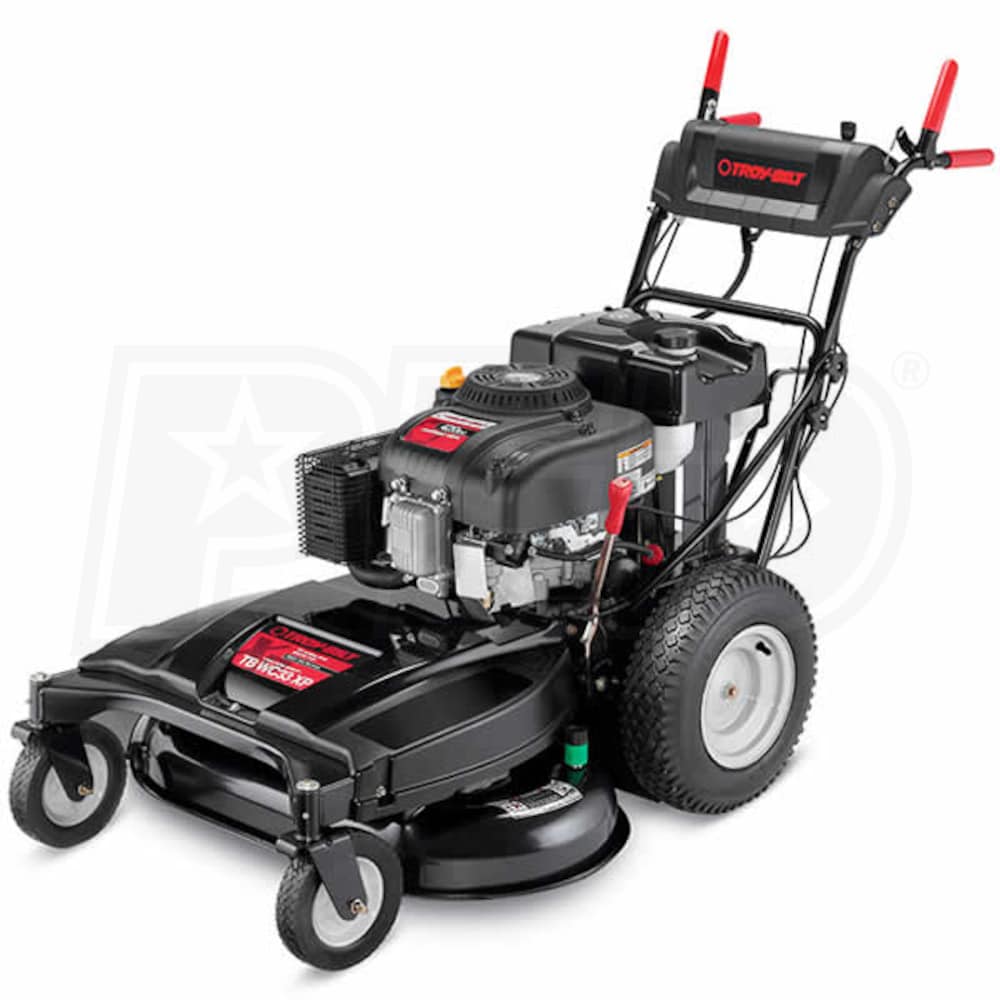

Troy-Bilt TB WC33 XP (33") 420cc Wide Area Self-Propelled Lawn Mower
Model:
TB WC33 XP
+
Share This Product
Features
- 420cc Troy-Bilt 4-Cycle OHV Engine
- Variable throttle control for maximum performance
- Keyed electric start for sure starts every time
- Hour meter with maintenance reminder
- Rear Wheel, Self-Propelled Drive System
- 4 forward speeds plus power reverse
- Allows you to set your speed based on terrain
- Blade Brake Clutch
- Safety feature stops the mower blade, but not the engine
- Allows you to step away from the mower without having to restart
- Extra Wide 33-Inch, Twin Blade Steel Mower Deck
- Delivers professional-quality cut every time
- Mulch and side discharge right out of the box (bagger optional)
- Integrated premium deck washing system
- Single Lever Cutting Height Adjustment
- Raise or lower deck to any of 8 cutting positions with one lever
- Zero-Turn Maneuverability
- Caster (swivel) style front wheels with ball bearings
- Large rear wheels for superior traction over uneven ground
Specifications
TB WC33 XP

Engine
Engine Brand
Troy-Bilt
Starting System
12-Volt Key Start
Engine Cycle
4-Cycle
CC
420 CCs
Fuel Tank Size
2 Gallons
Engine Cylinders
1 Cylinder
Oil Filter
No
Consumer Engine Warranty
3 Years
Motor
Battery Voltage
12 Volts
Battery Type
Lead Acid
Battery Included
Included
Overview
Weight
250 Pounds
Consumer Warranty
3 Years
Product Length
75 Inches
Product Width
48 Inches
Product Height
45 Inches
UPC
043033570393
Additional Model Numbers
12AE76JU011, TB WC33 XP
Deck
Cutting Options
3-in-1 (Side-Discharge/Bag/Mulch)
Deck Material
Steel
Deck Construction
Stamped
Blades
2 Blades
Spindle Material
Steel
Deck Positions
8 Positions
Cutting Width
33 Inches
Cutting Height
1.25-3.5 Inches
Drive
Speeds
4 Speeds
Drive Wheels
Rear Wheels
Drive System
Belt-Drive
Accessories
Rear Bagger
Sold Separately
Engine Guard
No
Hour Meter
Included
Arm Rests
No
Front Bumper
No
Trailer Hitch
No
Mulcher Kit
Included
Headlights
No
Wheels
Front Tire Size
8 Inch
Rear Tire Size
16 Inch
Reviews
(11)
Troy-Bilt TB WC33 XP Reviews & Ratings
Customer Rating
3.91
(11 Ratings)
5
(5)

4
(2)

3
(2)

2
(2)

1
(0)


Like Troy built but
By Fred S.
Lafayette, New Jersey
Purchased 05/09/2016 |
Review Posted 05/31/2016
Have used this a few times . I always used to guess but according to the hour meter it takes me 2 1/2 hrs to mow front and back. Plus wise it's new , engine is 12hp compared to my old 8 hp model which still works. Cons shifter rod to low just plain sucks , my old mower has blade and drive levers on the left handle which makes it much easier to turn in tight areas.
Caster wheels are too close to deck , mowing height lever on old model was a small very easy to use crank , this lever is easy but is made with cheap thin grade metal to hold it in position and I do not think it will last long . No grease fittings on axels or blade bearings will have me buying new parts I never needed with the old one. mulching blade won't even pick up a dead leaf at next to last deck setting. I bought new because I liked the old model hoping it would be similar . If I could return it I'd rather buy a rebuilt older brand . In time I'll see if it lasts as long as the first ...I highly doubt it !
Caster wheels are too close to deck , mowing height lever on old model was a small very easy to use crank , this lever is easy but is made with cheap thin grade metal to hold it in position and I do not think it will last long . No grease fittings on axels or blade bearings will have me buying new parts I never needed with the old one. mulching blade won't even pick up a dead leaf at next to last deck setting. I bought new because I liked the old model hoping it would be similar . If I could return it I'd rather buy a rebuilt older brand . In time I'll see if it lasts as long as the first ...I highly doubt it !
Fred S. Does Not Recommend This
Was this review helpful?
Rating Breakdown
3/5
3/5
4/5
3/5

EZ Mowing
By Gary M.
Rushville, Illinois
Purchased 04/21/2016 |
Review Posted 05/25/2016
Have 6 hours on mower. Works great. Does good level job in my rough yard. Has a extremely good height adjustment. Gears are great and spaced appropriately for most mowing conditions. Well 4th gear is best used for moving from operation to operation, unless you like to sprint along and just hit the high spots.
I have mowed some boot-top-high grass, and it did well without lugging the engine or stressing the cutting. But one wet morning in tall grass, it built up a wad inside the deck and threw the engine to deck shaft belt. However, it was easy to reinstall and be off. I advise against mowing tall, wet grass, as is well advised with any mower.
The machine operates very smoothly and seems very fuel efficient. It has used 2 oz. of engine oil in the 6 hours, but keeps using less and less. Between the 4th and 5th hour, I was mowing in 3rd gear and it suddenly just died. Started looking for the problem, took a couple of minutes, and that the wire cluster plug had came off the ignition switch.
Reinstalled the plug and it ran fine. It hasn't happened since. I believe, after setting the mower up, it would be a good idea to use cable fasteners to secure wiring and cables to handle bars. Overall, I believe it to be a well-priced, well-designed machine. Time will tell in the long haul.
I have mowed some boot-top-high grass, and it did well without lugging the engine or stressing the cutting. But one wet morning in tall grass, it built up a wad inside the deck and threw the engine to deck shaft belt. However, it was easy to reinstall and be off. I advise against mowing tall, wet grass, as is well advised with any mower.
The machine operates very smoothly and seems very fuel efficient. It has used 2 oz. of engine oil in the 6 hours, but keeps using less and less. Between the 4th and 5th hour, I was mowing in 3rd gear and it suddenly just died. Started looking for the problem, took a couple of minutes, and that the wire cluster plug had came off the ignition switch.
Reinstalled the plug and it ran fine. It hasn't happened since. I believe, after setting the mower up, it would be a good idea to use cable fasteners to secure wiring and cables to handle bars. Overall, I believe it to be a well-priced, well-designed machine. Time will tell in the long haul.
Gary M. Recommends This
Was this review helpful?
Rating Breakdown
5/5
4/5
4/5
5/5

Engine blew within 1 hour
By Timothy S.
LONDON, Ohio
Purchased 04/18/2016 |
Review Posted 05/23/2016
First impression - good equipment. Delivery was well done. However, 1 hour into first mowing, blue smoke appeared and that led to loading mower on trailer, driving 20 miles to an authorized warranty dealer, who after a week is still too busy to look at it.
I have had other great Troy-Bilt equipment, including 8 hp tiller that is 40 years old and still going strong. It may be a fluke with this one - the jury is out as I await warranty repair.
I have had other great Troy-Bilt equipment, including 8 hp tiller that is 40 years old and still going strong. It may be a fluke with this one - the jury is out as I await warranty repair.
Timothy S. Does Not Recommend This
Was this review helpful?
Rating Breakdown
4/5
4/5
1/5
1/5

Good mower
By Judith K.
Parkville, Maryland
Purchased 07/04/2015 |
Review Posted 09/09/2015
The Troy Bolton walk behind is really good perfect for medium size yards with small gates. It powers threw tall grass without a problem.
Judith K. Recommends This
Was this review helpful?
Rating Breakdown
4/5
5/5
4/5
4/5

best mower
By Terrell P.
Maryville, Tennessee
Purchased 06/21/2015 |
Review Posted 08/14/2015
Mower cuts great. I love this thing.
Terrell P. Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5

TB WC33
By David S.
Schenectady, New York
Purchased 06/04/2015 |
Review Posted 07/06/2015
So far, so good. I've mowed home lawn about six times so far and mower seems great.
David S. Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5

Mower Evaluation
By Ron S.
Columbia, Missouri
Purchased 06/04/2015 |
Review Posted 06/27/2015
Okay, I have mowed about 3 times with my new Troy-Bilt. My yard is flat in front & pretty steep in back.
Here is my view of mower so far:
*Arrived in great shape-boxed solid.
*Assembly easy..anyone can do it.
*CHECK OIL-from other reviews I read, it was first thing I did after assembly. It was 1/2 qt low.
*Little cranky to start, but I probably need to figure out how much to choke.
*After first use I had to raise deck 1 notch higher than I normally mow, as it will shave any high spots down to the dirt in a hurry due to the front wheels extending out in front of deck. Not a complaint, but if your yard isn't perfectly flat/even this mower will make it that way if deck set too low!
*This thing is a man's man-mower. I am still trying to get used to it, but it is heavy & can be awkward until you get used to letting the mower do the work for you.
*Practice mowing away from landscaping/trees/etc for a bit. Takes some getting used to using both hands to keep drive engaged, & mower deck engaged (left drive-right blades...or is it right drive-left blades!). If you confuse the mower engagement lever for the drive engagement lever you may end up running over your pretty landscaping when you are stopping the blades instead of the drive! Believe me, you are not going to hold this thing back manually if you are heading toward something with drive engaged! Again not a complaint-just have to think about it when mowing.
Stuff I am correcting:
*Rubber grips are pretty little shiny red ones, but slick as snot when you start sweating. Mower will literally pull out of your hands when they get wet. I am looking for rough textured grips, & will use cycling handlebar tape if I can't find grips that will work. Maybe rubber palmed gloves would work, but gloves may get hot on 95 degree day.
*Shifter lever a bit unhandy. It is located at back of mower/engine assembly. It is a bit low to get to when needing to back up on hillside or incline. You are trying to hold the mower, let off drive lever, reach down to shift in reverse, then get back up to drive lever to back up, then hold mower, reach down to shift back into forward, then get back up to drive lever. I have already seen that I can make a bracket & new shift lever bracket to get it closer to drive levers. If you don't live on a hill, this is no issue whatsoever though.
*Probably get a bit better mulching blade once this one has some use on it. It isn't bad, but could mulch a little better.
Good stuff:
*Power, power, power!! This thing is a beast for power.
*I was surprised how quiet it is...nice!
*Blade speed is fast-so mows clean if if grass a bit wet.
*Built solid-other than a bit of plastic in the upper handlebar area for hour meter & throttle, this thing is built like a tank.
*Neighbor envy! The guys in the neighborhood hide with their self-propelled Toros when I bring this dude out!!!
Overall a great mower if you want something built well & don't mind getting a bit of a workout when mowing. If you are one to send the wife out to mow, or don't want to work those boney little arms & legs skip this mower & hire the neighbors kid to mow for you!
Here is my view of mower so far:
*Arrived in great shape-boxed solid.
*Assembly easy..anyone can do it.
*CHECK OIL-from other reviews I read, it was first thing I did after assembly. It was 1/2 qt low.
*Little cranky to start, but I probably need to figure out how much to choke.
*After first use I had to raise deck 1 notch higher than I normally mow, as it will shave any high spots down to the dirt in a hurry due to the front wheels extending out in front of deck. Not a complaint, but if your yard isn't perfectly flat/even this mower will make it that way if deck set too low!
*This thing is a man's man-mower. I am still trying to get used to it, but it is heavy & can be awkward until you get used to letting the mower do the work for you.
*Practice mowing away from landscaping/trees/etc for a bit. Takes some getting used to using both hands to keep drive engaged, & mower deck engaged (left drive-right blades...or is it right drive-left blades!). If you confuse the mower engagement lever for the drive engagement lever you may end up running over your pretty landscaping when you are stopping the blades instead of the drive! Believe me, you are not going to hold this thing back manually if you are heading toward something with drive engaged! Again not a complaint-just have to think about it when mowing.
Stuff I am correcting:
*Rubber grips are pretty little shiny red ones, but slick as snot when you start sweating. Mower will literally pull out of your hands when they get wet. I am looking for rough textured grips, & will use cycling handlebar tape if I can't find grips that will work. Maybe rubber palmed gloves would work, but gloves may get hot on 95 degree day.
*Shifter lever a bit unhandy. It is located at back of mower/engine assembly. It is a bit low to get to when needing to back up on hillside or incline. You are trying to hold the mower, let off drive lever, reach down to shift in reverse, then get back up to drive lever to back up, then hold mower, reach down to shift back into forward, then get back up to drive lever. I have already seen that I can make a bracket & new shift lever bracket to get it closer to drive levers. If you don't live on a hill, this is no issue whatsoever though.
*Probably get a bit better mulching blade once this one has some use on it. It isn't bad, but could mulch a little better.
Good stuff:
*Power, power, power!! This thing is a beast for power.
*I was surprised how quiet it is...nice!
*Blade speed is fast-so mows clean if if grass a bit wet.
*Built solid-other than a bit of plastic in the upper handlebar area for hour meter & throttle, this thing is built like a tank.
*Neighbor envy! The guys in the neighborhood hide with their self-propelled Toros when I bring this dude out!!!
Overall a great mower if you want something built well & don't mind getting a bit of a workout when mowing. If you are one to send the wife out to mow, or don't want to work those boney little arms & legs skip this mower & hire the neighbors kid to mow for you!
Ron S. Recommends This
Was this review helpful?
Rating Breakdown
4/5
5/5
5/5
5/5
Pros:
Durable, Quiet, Fast, I'd Buy It Again
Cons:
Heavy

Don't plan to use this model in tall grass!
By R D M.
Arlington, Tennessee
Purchased 05/13/2015 |
Review Posted 06/26/2015
Got this to use on my farm and the first time I used it (on its highest setting) in foot high pasture grass, the blades locked up and smoked the timing belt before I could shut it off. When the timing belt slipped, the blades start hitting each other and shut off the mower. The culprit was a 1-1/2" limb hiding in the grass. The lockup also bent the tension pulley arm for the timing belt so much that my repairman had to take it off and straighten it and the blades started hitting the slightly warped mower deck on one side. After initial repairs, I went back to work and after a few hours not hitting anything, the belt driving the blades stretched so much that it could not keep the blades turning. I will say that the unit's drive wheels were able to pull it up steep hills, which is why I got it to begin with. My advice is keep it in the short grass and perhaps buy shorter blades that won't hit each other even if the timing belt slips.
R D M. Does Not Recommend This
Was this review helpful?
Expert Response
Thank you for your review, you are correct this model is not meant for tall grass or limbs please try to keep it on Shorter Grass and try to avoid thick weeds to prevent the mower from smoking the belts. This mower was intended to be used as a finish cut mower.

Dale V.
Power Equipment Expert
Rating Breakdown
3/5
1/5
2/5
1/5

Disappointed
By Lupe R.
Waco, Texas
Purchased 04/06/2015 |
Review Posted 06/08/2015
After waiting @ 2 weeks longer than expeted delivery I'm Very sad to say that this mower is already broke and I'm not sure where to get the parts. I'm not even finished paying on it and its not working. Not sure if I will be ordering again.
Lupe R. Does Not Recommend This
Was this review helpful?
Expert Response
I apologize for the inconvenience you are experiencing with your recently purchased mower. What parts in particular are you missing as we would be able to have these shipped to your from Troy-Bilt directly as they were missing from your Troy-Bilt mower. Please give us a call at 1 (800) 837-8247 with the listing of items needed and we will have these ordered for you.
Once again I sincerely apologize for the inconvenience and will be happy to assist. Thank you for your patience and cooperation.
Once again I sincerely apologize for the inconvenience and will be happy to assist. Thank you for your patience and cooperation.

Dale V.
Power Equipment Expert
Rating Breakdown
1/5
1/5
1/5
1/5

Chetuga
By Chester P.
Seneca, South Carolina
Purchased 05/05/2015 |
Review Posted 05/26/2015
Mower arrived in good health and is performing very well...better than anticipated. Shipping, however did not include a key, manual or any accessories.
Chester P. Recommends This
Was this review helpful?
Expert Response
We sincerely apologize for the inconvenience of the missing items. I do see you contacted us and we were hopefully able to help in the tight spot. Again, please don't forget to send us a copy of the receipt for any of the missing items you picked up locally. We will be more than happy to reimburse. If there is something you were unable to get or something else you need, please don't hesitate in contacting us, as we would be happy to help.

Dale V.
Power Equipment Expert
Rating Breakdown
5/5
5/5
5/5
5/5
