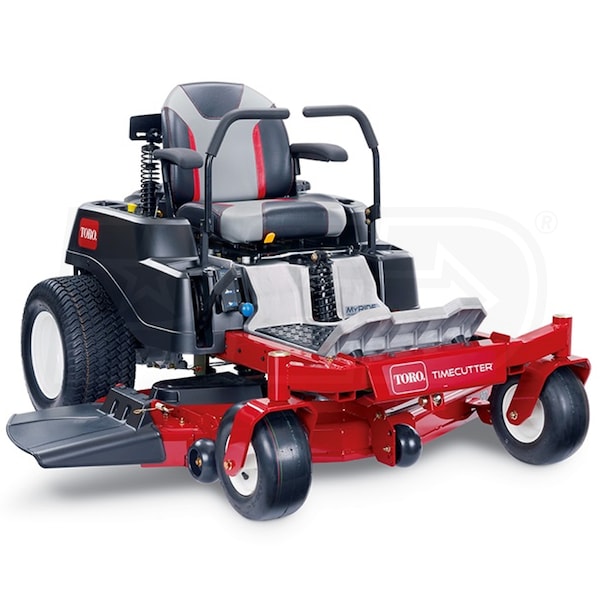

Toro TimeCutter MyRIDE® MX5075 (50") 24.5HP Zero Turn Lawn Mower

Model:

74778

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Toro TimeCutter MyRIDE® MX5075 (50
Toro TimeCutter MyRIDE® MX5075 (50") 24.5HP Zero Turn Lawn Mower
Model: 74778
Was $4,199.99
Product Discontinued
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Features

Grade

Semi-Pro

Style

Zero Turn

Surface Area

Office Building, Farm, or Parks

Terrain

Hilly

Width

50 Cutting Inches

Engine

Toro V-Twin



Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
  • Mower Is Too Large To Fit On Lift Gate For Delivery
  • Must have a loading dock or fork lift @ delivery locale to unload
  • Commercial 24.5HP/708cc Toro V-Twin OHV Engine
  • Cast iron cylinder liners protect against harmful debris
  • Dual feeding carburetors increase throughput and efficiency
  • Patented self-cleaning air filtration system for longer engine life
  • Dual Hydrostatic ZT-2200 Transmission
  • Low-maintenance design with a 10cc pump and motor
  • Delivers higher ground speeds and smooth performance
  • 50-Inch, 3-Blade Fabricated Mower Deck
  • Crafted using extremely durable 10-gauge steel
  • (1) nose and (2) anti-scalp rollers to prevent ground outs
  • Designed with an easy-to-use foot-assisted height-of-cut adjustment
  • Tool-Free Oil Changes
  • Easiest oil change you've ever experienced
  • Integrated oil drain hose keeps the oil off your floor
  • Simply pull the hose off the holder and position it accordingly
  • MyRIDE® Suspension System
  • Adjustable seat suspension system to match the rider's needs
  • Suspended operator platform reduces shock load, increasing comfort
  • Smart Speed® Control
  • Choose different speed ranges with the flip of a lever
  • TRIM: 0 to 3 mph for trimming around trees and landscaping
  • TOW: 0 to 5.5 mph for towing capabilities
  • MOW: 0 to 7 mph for mowing large, open areas at high speed
  • Commercial Grade DNA
  • Includes tool box, washout port, cup holder, and armrests
  • Large 3-gallon fuel capacity and hitch kit for increased productivity
  • Engine guard and automatic parking brake keep user and machine safe
  • Generous 3-Year Warranty
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
WARNING: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm..
For more information go to: www.p65Warnings.ca.gov

Specifications

74778
specs product image PID-83058
Engine
Engine Brand
Toro V-Twin
Starting System
12-Volt Key Start
Engine Cycle
4-Cycle
HP
24.5 HP
CC
708 CCs
Fuel Tank Size
3 Gallons
Engine Cylinders
2 Cylinders
Oil Filter
Yes
Low Oil Shutdown
No
Consumer Engine Warranty
3 Years
Commercial Engine Warranty
3 Years
Motor
Battery Voltage
12 Volts
Battery Type
Lead Acid
Battery Included
Included
Overview
Weight
633 Pounds
Consumer Warranty
3 Years
Commercial Warranty
30 Days
Product Length
72.9 Inches
Product Width
53.5 Inches
Product Height
43 Inches
UPC
021038747781
Deck
Cutting Options
3-in-1 (Side-Discharge/Bag/Mulch)
Deck Material
10-Gauge
Deck Construction
Welded
Blades
3 Blades
Spindle Material
Aluminum
Deck Positions
7 Positions
Cutting Width
50 Inches
Cutting Height
1.5-4
Deck Lift System
Manual Hand Operated
Engagement
PTO Electric
Deck Drive
Belt
Number of Wheels
3 Wheels
Drive
Speeds
Variable
Maximum Speed
7 MPH
Maximum Reverse Speed
3 MPH
Drive Wheels
Rear Wheels
Transmission Type
Hydrostatic
Drive System
ZT-2200 Hydro-Gear Transaxle
Accessories
Engine Guard
Yes
Seat Type
High Back w/ Seat Springs
Arm Rests
Included
Hitch
Included
Floor Mat
Yes
Headlights
No
Washout Port
Yes
Wheels
Front Tire Size
13 x 6.5 Inch
Rear Tire Size
20 x 10 Inch
Tire Type
Pneumatic Wheels
