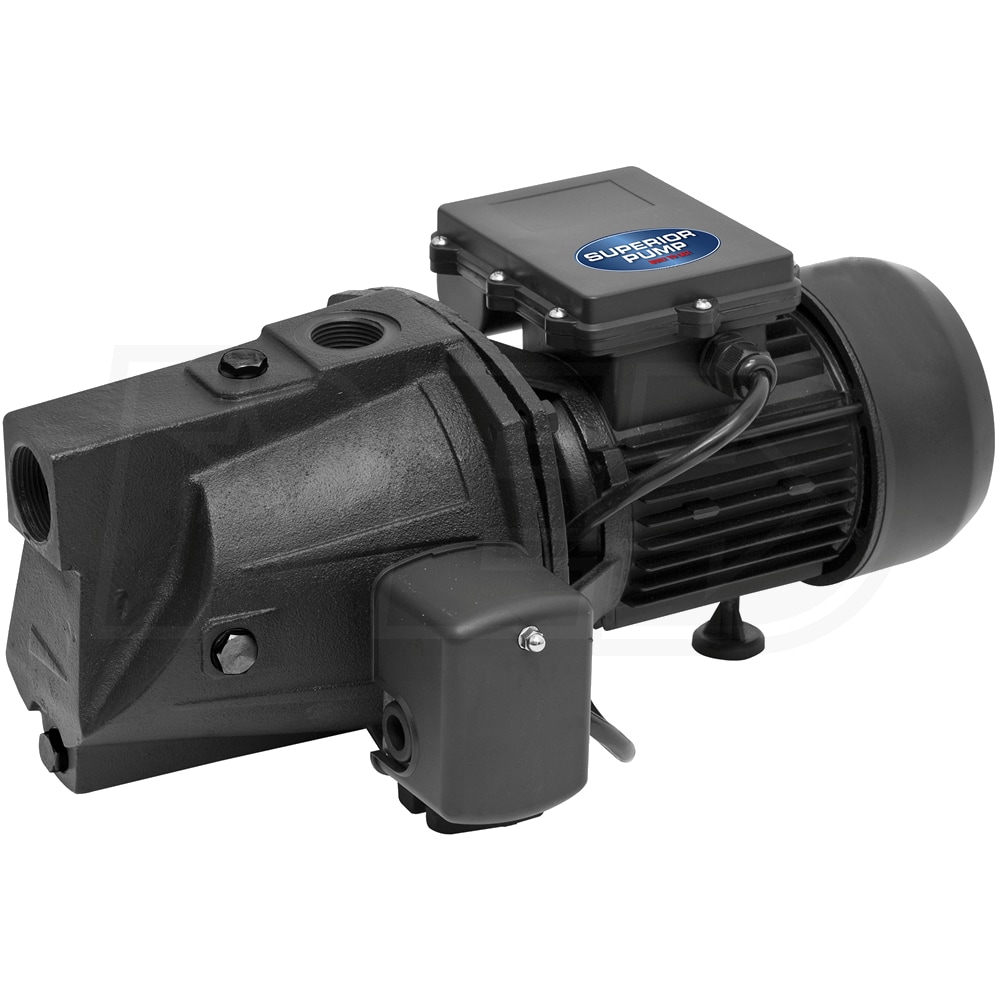

Superior Pump 13.75 GPM 3/4 HP Cast Iron Shallow Well Jet Pump
Model: 94705
5.0 out of 55.0 out of 55.0 out of 55.0 out of 55.0 out of 5
Number of Reviews(2)
Write a Review
$160.00
Free Shipping
Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
In-Stock
Ships in 3-5 Days
Shipping to60601
Shipping Details
  • Expedited Shipping Available - Shipping rates calculated at Checkout. Learn More
*We currently CANNOT ship this product to Canada or any destination outside of the United States
In-Stock Free Shipping$160.00Buy Now
In-Stock Free Shipping$160.00Visit Site
Share
  • Product Description
  • 2
    Reviews
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+

Inlet Size
1-1/4"
Style
Shallow Well Pumps
GPM
13.75
Gallons
Inlet Size
1-1/4"
Style
Shallow Well
GPM
13.75 Gallons
Features
Features
  • Superior 3/4 HP Shallow Well Jet Pump
  • For shallow well applications up to 25' depth
  • Provides up to 13.75 GPM
  • Cast Iron Pump Body & Seal Plate
  • Robust design, extends pump life

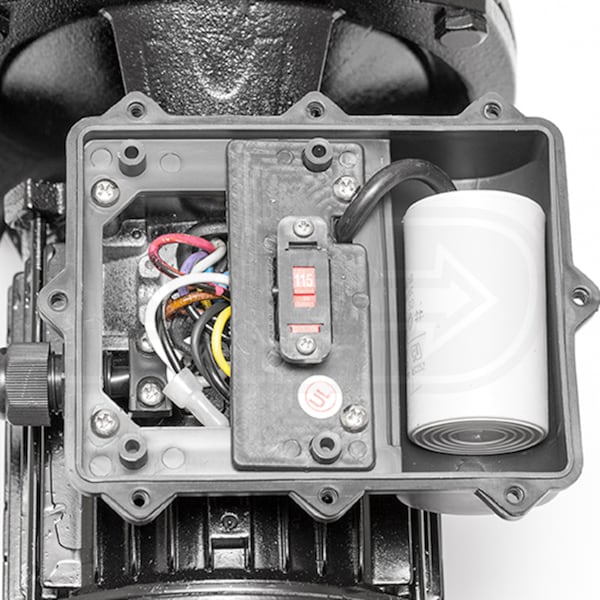

  • 115/230V Dual Voltage 3/4 HP Electric Motor w/ Overload Protection
  • Factory set @ 115V for easy installation
  • Permanently lubricated ball bearings for smoother operation

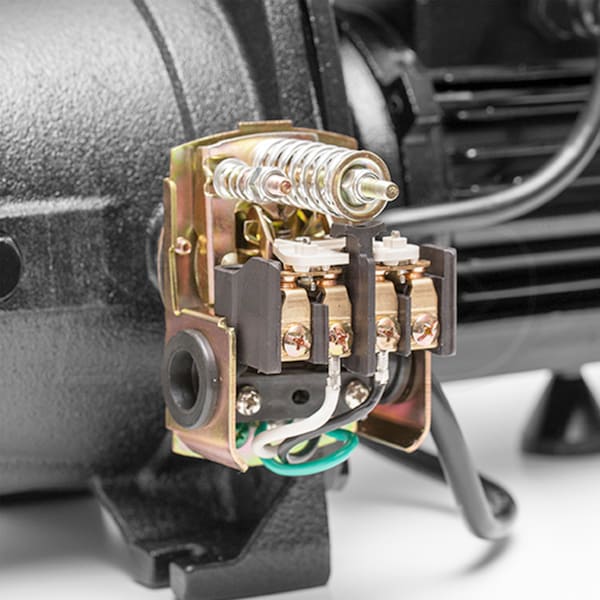

  • Pre-mounted Pressure Switch (20/40 Factory Preset)
  • Fully adjustable design makes it easy to adapt to your current plumbing system
  • Allows for a maximum of 74 PSI

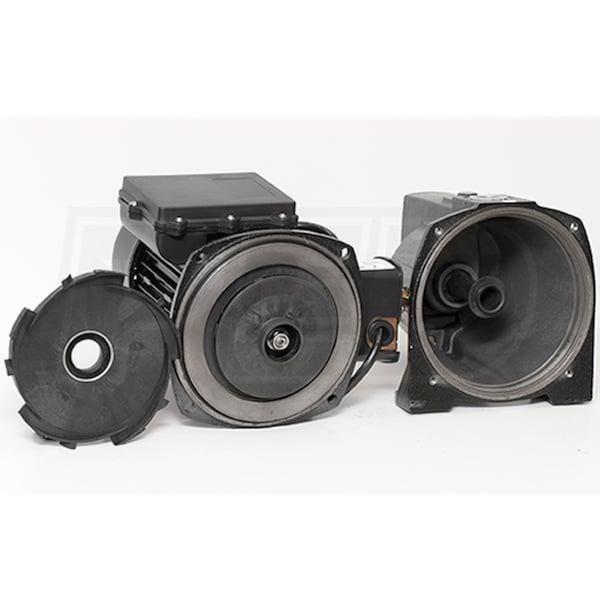

  • Thermoplastic Impeller & Glass-Filled Thermoplastic Diffuser
  • Corrosion-resistant design provides excellent pump performance
  • 1-1/4" FNPT - Intake/Suction & 1" Discharge
  • Compatible with most residential plumbing applications
  • 1-Year Pump & 3-Year Motor Limited Warranty
Specifications
Motor
Voltage
120/240 Volt
Running Amps
7.8/3.9
Thermal Protection
Yes
Pump
Gallons Per Minute
13.75 Gallons
Inlet Diameter
1-1/4"
Outlet Diameter
1"
Pump Head Material
Cast Iron
Pump Housing Drain
Yes
Housing Material
Cast Iron
Impeller Material
Plastic
Suction Head
25 Feet
Maximum PSI
74
Submersible
No
Engine
Horsepower
0.75 hp
Consumer Engine Warranty
3 Years
Accessories
Pressure Switch
Yes
Overview
Weight
34 Pounds
Consumer Warranty
1 Year
UPC
725113947058

Inlet Size
1-1/4"
Style
Shallow Well Pumps
GPM
13.75
Gallons
Inlet Size
1-1/4"
Style
Shallow Well
GPM
13.75 Gallons
