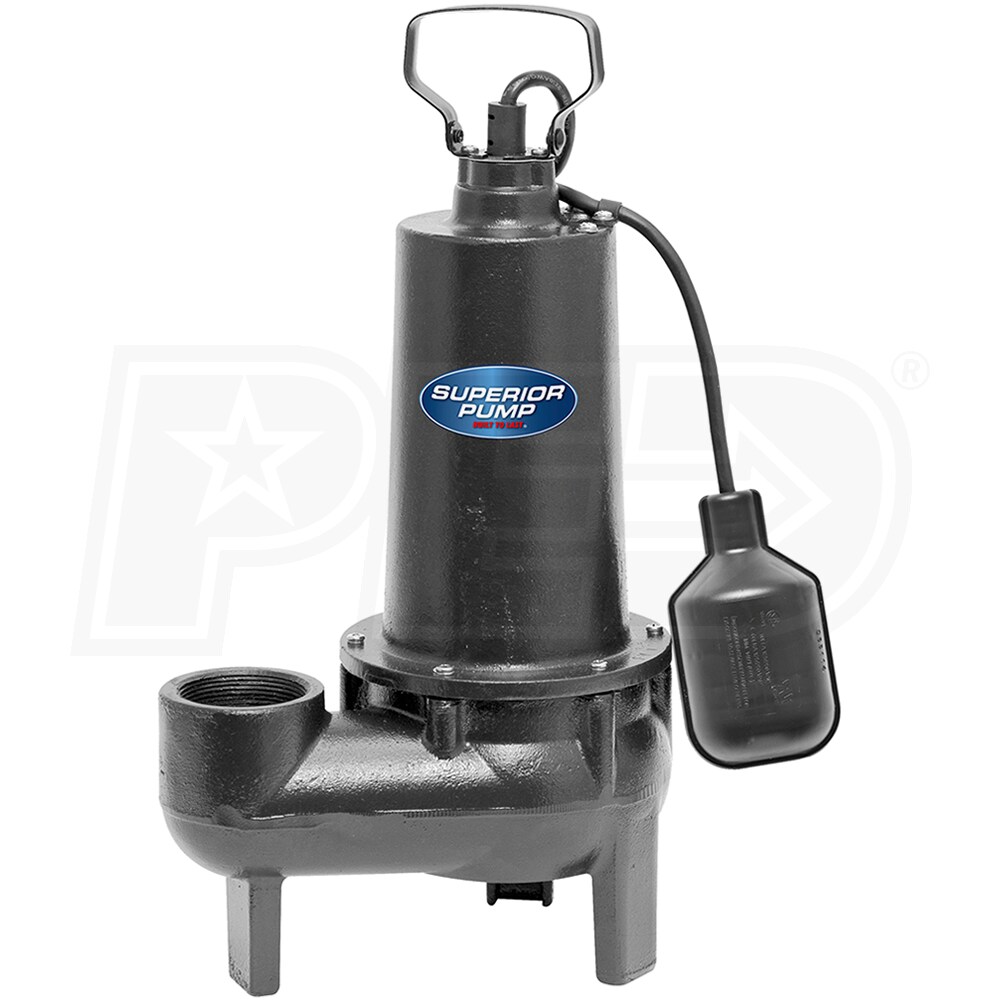

Superior Pump 93501 - 1/2 HP Cast Iron Sewage Pump (2") w/ Piggyback Tether Float
Model:
93501
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Jim, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
Style
Sewage Pump
GPH
4800 Gallons
Switch Type
Piggy-Back Tether
- Submersible Sewage/Ejector Pump w/ Tether Float Switch
- Ideal for average waste removal
- Thermally Protected, 1/2 HP Split Capacitor Motor
- Continuous duty design, only draws 7.6A
- Heavy-Duty Cast Iron Housing & Base Construction
- For rapid heat dissipation and extended life
- Bottom Suction Design
- Able to pass up to 2" solids
- High-Quality Components
- Stainless steel motor shaft & fasteners
- High Impact ABS plastic non-clogging Vortex impeller
California residents see
Warning: This product can expose you to chemicals including Vinyl chloride which is known to the State of California to cause Cancer.
For more information go to: www.p65Warnings.ca.gov
Specifications
93501
General Information
Product Category
Sump Pump
Base
Base Material
Cast Iron
Min Sump Basin Size
18 Inch
Motor
Voltage
120 Volt
Running Amps
7.6
Thermal Protection
Yes
Power Cord Length
10 Feet
Oil Free Motor
No
Pump
Mechanical Seal Material
Ceramic Carbon
Housing Material
Cast Iron
Impeller Material
Nylon
Solids Handling Size
2 inch
Handles Solids
Yes
Float Type
Piggy-Back Tether Switch
GPH @ 0 feet
4800
GPH @ 5 feet
4080
GPH @ 10 feet
3600
GPH @ 15 feet
2640
GPH @ 20 feet
780
Discharge Port Size
2 Inch
Check Valve Included
No
Float On
14 Inches
Float Off
6 Inches
Manual Override
Yes
Max Head
25 Feet
Submersible
Yes
Engine
Horsepower
.5 hp
Overview
Product Category
Sump Pump
Weight
27 Pounds
Consumer Warranty
1 Year
Product Length
8.5 Inches
Product Width
6 Inches
Product Height
16.25 Inches
UPC
725113935017
Reviews
(9)
Superior Pump 93501 Reviews & Ratings
Product Q&A
(2)
Product Questions
Answered by Jim, the Sump Pump Expert
Will this pump work as a sewer ejection pump for a basement bathroom or do I need a 'grinder' pump?
Bryan W.
from Michigan
May 02, 2017
Can the on off level be adjusted? I am pumping from a 4' dia tank and I don think I want to displace that much water into my leach field at one time.
Gary Cook
from California
June 16, 2012
