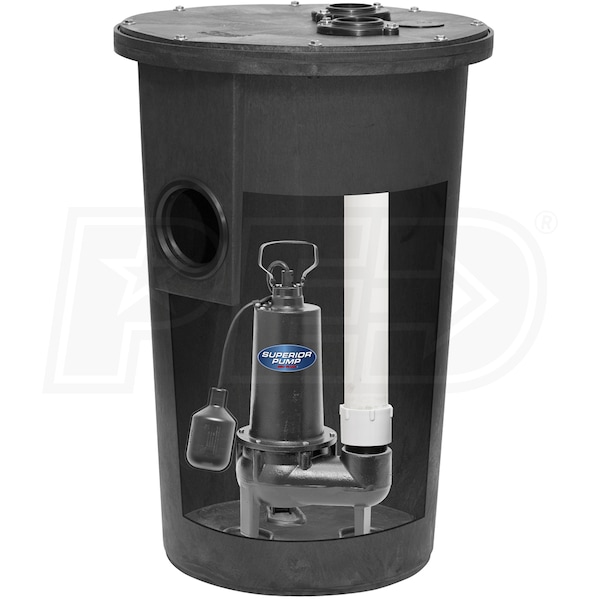

Superior Pump 93015 - 1/2 HP Cast Iron Sewage Pump System (2")

Name: Superior Pump 93015 - 1/2 HP Cast Iron Sewage Pump System (2")
Brand: Superior Pump
SKU: 5220
Price: 499.00 USD
Availability: InStock
Rating: 4.50 (10 reviews)

Model:

93015

Write A Review

$499.00

Free Shipping

Only 3 In-Stock

Ships Thursday, Oct 5th

Shipping to60601

Superior Pump 93015 - 1/2 HP Cast Iron Sewage Pump System (2")

Model: 93015

$499.00

Accessories

Features

Specifications

Reviews

Product Q&A

How-To Articles

Manuals

Expert Recommended Accessories Selected by Jim, our Expert

Required Accessories 9

These accessories are required to properly setup/install this product.

Optional Accessories 10

Features

Style

Sewage Pump

GPH

4800 Gallons

Switch Type

Piggy-Back Tether

Complete Sewage Pump System
Everything you need in one box
Submersible Sewage/Ejector Pump w/ Tether Float Switch
Ideal for average waste removal
Thermally Protected, 1/2 HP Split Capacitor Motor
Continuous duty design, only draws 7.6A
Heavy-Duty Cast Iron Housing & Base Construction
For rapid heat dissipation and extended life
Bottom Suction Design
Able to pass up to 2" solids
High-Quality Components
Stainless steel motor shaft & fasteners
High Impact ABS plastic non-clogging Vortex impeller
18" x 30" Durable Structural Foam Sewage Basin w/ 4" Inlets
Industry standard design
18" Structural Foam Cover w/ Gasket Kit
Accommodates standard 2" discharge and vent pipes
2" Full Flow Check Valve w/ Rubber Boots
Makes installation a breeze

California residents see

Warning: This product can expose you to chemicals including Vinyl chloride which is known to the State of California to cause Cancer.

For more information go to: www.p65Warnings.ca.gov

Specifications

93015

General Information

Product Category

Sump Pump

Base

Base Material

Cast Iron

Min Sump Basin Size

18 Inch

Motor

Voltage

120 Volt

Running Amps

7.6

Thermal Protection

Yes

Power Cord Length

10 Feet

Oil Free Motor

Pump

Housing Material

Cast Iron

Impeller Material

Nylon

Solids Handling Size

2 inch

Handles Solids

Yes

Float Type

Piggy-Back Tether Switch

GPH @ 0 feet

4800

GPH @ 5 feet

4080

GPH @ 10 feet

3600

GPH @ 15 feet

2640

GPH @ 20 feet

1500

Discharge Port Size

2 Inch

Check Valve Included

Yes

Float On

14 Inches

Float Off

6 Inches

Manual Override

Yes

Engine

Horsepower

.5 hp

Overview

Product Category

Sump Pump

Weight

41 Pounds

Consumer Warranty

1 Year

Product Length

22.5 Inches

Product Width

22.5 Inches

Product Height

30 Inches

UPC

725113930159

Accessories

Alarm

Wi-Fi enabled

Reviews

(10)

Superior Pump 93015 Reviews & Ratings

Product Q&A

(3)

Product Questions Answered by Jim, the Sump Pump Expert

In our garage remodel project, there will be a 50 foot run from the output of the sewage sump pump to our 4" drain in the crawl space of the house proper. The first 3 feet will be vertical. The rest will be gently downhill. I like the idea of a pump that grinds the sewage so that there aren't large chunks of sewage trundling along that long, very slight down hill run - chunks that might decide to stop and block 'traffic'. Is this pump in the grinder category? If not, am I obsessing over a potential blockage that would never happen -making this a fine pump for the 3/4 bathroom in our garage remodel?

John W

from Alabama

August 15, 2013

Answer

Thank you for your interest in Sump Pumps Direct. 99.9% of the time, a standard sewage pump like the one inside the Superior model 93015 will be more than sufficient to handle an extra basement bathroom application. The 50 foot (3' vertical and approx. 47' horizontal) run will not be a problem. Standard sewage pumps will easily handle the human waste and toilet paper and you should not experience any issues providing the system is installed correctly. The problems that you could run into would be if someone is flushing other things down the toilet that shouldn't be. At that point, you could experience a jammed impeller at the pump.
If you have additional questions, please let me know.

Was this answer helpful?

Yes

Hello-We are building a new house with a small footprint. As such our second bathroom is in our basement. We would like to install a pump to remove sewage and shower water. What would you recomend? The bathroom will mainly be used for occasional guests. Laundry water will be independent. Does it vent with a standard vent stack, we certainly dont want a stinky basement. HELP

John S Anderson

from New York

May 09, 2012

Answer

The Superior Pump model 93015 1/2 HP Cast Iron Sewage Pump System or Bur-Cam 4/10 HP Heavy Duty Cast Iron Sewage Pump System, model 400419T would be an ideal set-up for your application. It comes with everything you need with the exception of the PVC discharge and venting pipe. For safe and secure operation for venting, it is required to use schedule 40 pipe or heavier. This is required by the UPC (Universal Plumbing Code) and is for your safety. Venting should be through the roof of the building unless otherwise noted by you local or state codes.

Was this answer helpful?

Yes

I currently have a sump pump in my basement with 2" discharge. I would like to add a bathroom in the basement that is below the street level sewer line by about 5-6 feet. I have a sump pump well that is below floor level by about 2 feet. What would work to accomplish this need. Would a lift ginder/lift pump work in place of the sump for the clothes washer and would it pump out the sewage effectively?

Ed Walker

from West Virginia

November 13, 2011

Answer

Your sump pump will always work independantly of your sewage pump and the Superior model 93015 Cast Iron Sewage Pump system or the Little Giant Model WCSS50 - 4/10 HP Cast Iron Sewage Pump System would be a good choice to handle the new bathroom. Ideally, something similiar to a Wayne Model SYLT30 - 1/3 HP Pre-Assembled Laundry Tray System would also be installed to handle the laundry water as standard sump and sewage pumps are not designed to handle the chemicals associated with laundry applications and will void your warranty for sump and sewage pumps. That being said, if you are against installing a seperate laundry system, the sewage system would tolerate the laundry application better than the sump pump.

Was this answer helpful?

Yes
