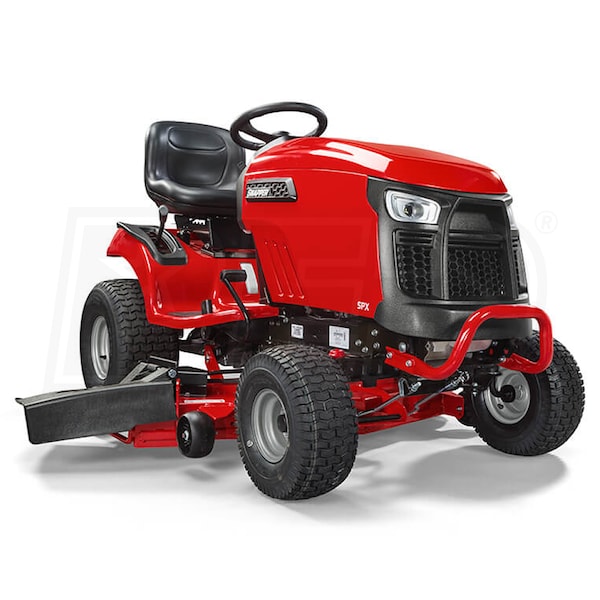

Snapper SPX (48") 25HP Lawn Tractor

Model:

2691504

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Snapper SPX (48
Snapper SPX (48") 25HP Lawn Tractor
Model: 2691504
Product Discontinued
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Features

Grade

Mid-Grade

Style

Lawn Tractor

Surface Area

Office Building, Farm, or Parks

Terrain

Hilly

Width

48 Cutting Inches

Engine

Briggs & Stratton



Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
  • 25HP/724cc Briggs & Stratton Pro Series™ 4-Cycle OHV Engine
  • Dual seal cartridge-type air filter for an extended engine life
  • Overhead valve design (OHV) reduces carbon deposits
  • Easy and dependable electronic ignition at any temperature
  • Tuff-Torque K46 Hydrostatic Transmission
  • Heat-treated powder metal gears designed to take a beating
  • Seamless vehicle-like pedal controlled variable acceleration
  • 48-Inch Fabricated (Welded) Steel Mower Deck
  • Mid-sized deck requires fewer passes and is ideal for tight yards
  • 4 anti-scalp wheels prevent groundouts on uneven terrain
  • Intuitive 7-position, hand-lever operated height-of-cut adjustment
  • Washout Port
  • Attach hose, turn on water, and rinse away the garden debris
  • Extremely convenient - keep your storage area clipping free
  • Turning On A Dime
  • 14" turning radius ideal for unique landscapes and yard obstacles
  • Taking tighter turns allows you to mow more efficiently, saving time
  • Front Tube Bumper
  • Durable steel design protects against motor damage
  • If you need a few extra inches, the bumper is easily removable
  • Comfort Comes Standard
  • Adjustable high-back spring seat w/ 9 positions to choose from
  • Features premium LEDs, hour meter, cruise control, and fuel gauge

Specifications

2691504
specs product image PID-95807
Engine
Engine Brand
Briggs & Stratton
Starting System
12-Volt Key Start
Engine Cycle
4-Cycle
HP
25 HP
CC
724 CCs
Fuel Tank Size
3.5 Gallons
Engine Cylinders
2 Cylinders
Oil Filter
Yes
Consumer Engine Warranty
2 Years
Commercial Engine Warranty
1 Year
Motor
Battery Voltage
12 Volts
Battery Type
Lead Acid
Battery Included
Included
Overview
Weight
520 Pounds
Consumer Warranty
3 Years
Commercial Warranty
90 Days
Product Length
74 Inches
Product Width
59 Inches
Product Height
46 Inches
Power Type
Gas
UPC
047282146620
Deck
Cutting Options
3-in-1 (Side-Discharge/Bag/Mulch)
Deck Material
10-Gauge
Deck Construction
Welded
Spindle Material
Aluminum
Blades
3 Blades
Deck Positions
7 Positions
Cutting Width
48 Inches
Cutting Height
1.5-4.0 Inches
Deck Lift System
Manual Hand Operated
Engagement
PTO Electric
Deck Drive
Belt
Drive
Speeds
Variable
Maximum Speed
5.5 MPH
Maximum Reverse Speed
3.3 MPH
Drive Wheels
Rear Wheels
Transmission Type
Hydrostatic
Drive System
Tuff Torq K46
Accessories
Rear Bagger
Sold Separately
Seat Type
High Back w/ Seat Springs
Hour Meter
Included
Arm Rests
No
Front Bumper
Included
Mulcher Kit
Sold Separately
Headlights
Included
Washout Port
Yes
Wheels
Front Tire Size
15 x 6 Inch
Front Axle
Cast-Iron
Rear Tire Size
20 x 10 Inch
Tire Type
Pneumatic Wheels
