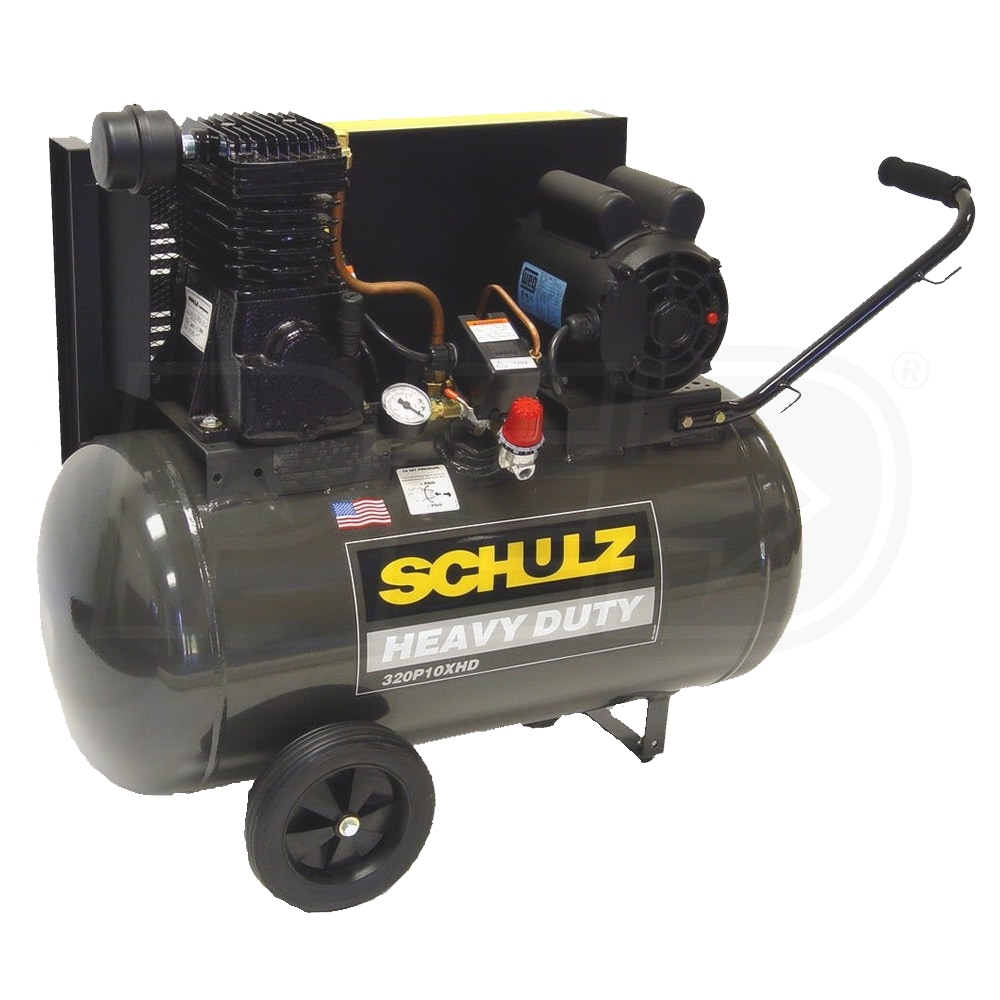

Schulz 2-HP 20-Gallon (Belt-Drive) Dual-Voltage Air Compressor

Model:

931.8039-0

Write A Review
$904.00
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
Ships in 2-5 Business Days

Schulz 2-HP 20-Gallon (Belt-Drive) Dual-Voltage Air Compressor
Schulz 2-HP 20-Gallon (Belt-Drive) Dual-Voltage Air Compressor
Model: 931.8039-0
$904.00
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

Power Equipment Direct expert image
Expert Recommended Accessories Selected by Melissa, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Grade

Contractor

Style

Portable - Horizontal

CFM

6.2

Tank Size

20

  • Heavy-Duty 2-HP 110/230V Belt Drive Compressor
  • Produces 6.2 CFM @ 100PSI; 5.4 CFM & 140 PSI
  • Durable & dependable performance drives many air tools
  • Can be used for operating paint sprayers, air tools, grease guns, airbrushes, caulking guns, inflating tires and plastic toys

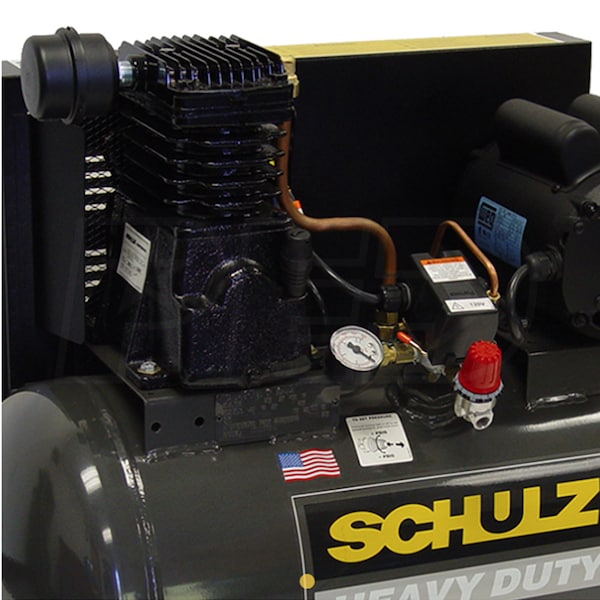

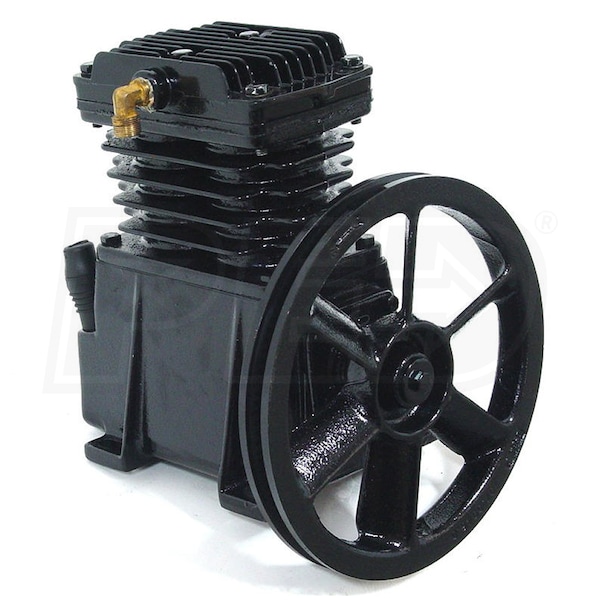

  • Single Stage Splash Lubricated Cast Iron Pump
  • Low 860 RPM for less wear and tear
  • Large Swedish stainless steel reed valves
  • Oversized crankcase for large oil capacity; 0.53 quarts
  • Pressure Switch & Thermal Protector Reset
  • Offers optimum performance for your jobs
  • Measures the air pressure inside your air tank accurately
  • Heat protection halts temperature before it can burn up the motor
  • Air Pressure Regulator
  • Provides the best solution to manage compressed air
  • Maintains consistent pressure and prevents overdriving tools
  • Includes air filter to remove contaminants such as dirt & oil from hoses
  • 20-Gallon Tank w/ Wheel Kit & Handle
  • No hassle large viewing pressure gauge
  • Easy to move around the jobsite, shop or garage
  • Rubber feet prevent vibration and movement
  • Tank Safety Pressure Relief Valve
  • Prevent damage or over pressurization should a malfunction occur
  • Factory installed & set at specific limit to provide extra protection
  • Convenient Manual Drain
  • Makes tank simple to maintain
  • Routine draining prevents air contamination & prolongs tool life
  • 1-Year Manufacturer Warranty
  • Quality Systems Certified: ISO9001
  • Unit Comes Set-Up In 110V; Must Be Hardwired To 230V
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

931.8039-0
specs product image PID-85513
General Information
Product Category
Air Compressor - Portable
Engine
HP
2
Motor
Voltage
120/240 Volt AC
Phase
1-Phase
Magnetic Starter Learn More
Magnetic Starter
The Magnetic Starter is the "thinking cap" for the motor of the air compressor. Magnetic starters are electromagnetically operated switches that provide a safe method for certain motors to be started under a large motor load.
No
Amp Draw
15
Recommended Breaker
20 Amp Breaker
Pump
CFM Learn More
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
6.2
CFM Rated @
100 PSI
Pump Material
Solid Cast Iron
Max PSI Learn More
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
140 PSI
Oil Sight Glass
No
Pump Type
Single-Stage
After Cooler Learn More
After Cooler
An aftercooler is a mechanical heat exchanger designed to remove the heat and moisture of compression from a compressed air stream so the air is cool and dry enough for use in air-operated equipment. A compressed air aftercooler has three primary functions: Cool the air discharged from the air compressor
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off Learn More
Pump Low Oil Shut-off
Prevents the air compressor from operating or restarting without an adequate amount of oil in the compressor
No
Tank
Tank Size
20 Gallons
Tank Outlet
1/4 Inch
Electronic Drain Valve Learn More
Electronic Drain Valve
The inexpensive and reliable electric drain valve (EDV) automatically removes condensate from your air system. It has an integral strainer to prevent clogging and saves time and money by eliminating the need for manual draining
No
Tank Orientation
Horizontal
Accessories
Pressure Gauge
Yes
Air Dryer
No
Air Filter
Yes
Overview
Product Category
Air Compressor - Portable
Weight
157 Pounds
Certification
ASME
Consumer Warranty
1 Year
Product Length
43 Inches
Product Width
18 Inches
Product Height
29 Inches
Dimensions
Do Not Include Handle
Power Type
Electric

Reviews

(1)
Schulz 931.8039-0 Reviews & Ratings

Product Q&A

(1)
Expert avatar photo
Product Questions Answered by Melissa, the Air Compressor Expert
Schulz's website lists this model as 10 CFM; your website states 6.2 CFM. What is the actual CFM?
