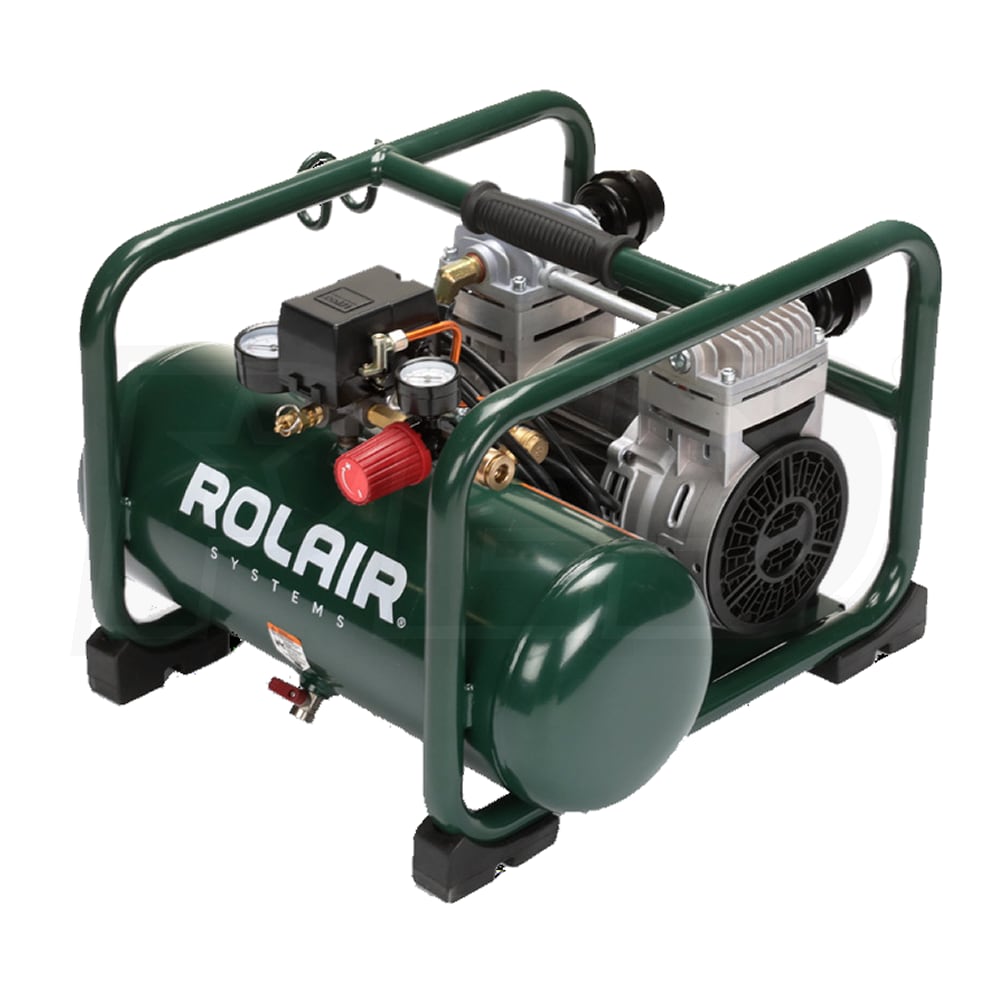

Rolair 2-HP 3-Gallon Ultra Quiet Oil-Free Hot Dog Air Compressor

Rolair 2-HP 3-Gallon Ultra Quiet Oil-Free Hot Dog Air Compressor
Our Price
Compare Prices
Shipping Info
Model: JC20
(Based on expert analysis, manufacturer ratings and customer reviews)
5.0 out of 55.0 out of 55.0 out of 55.0 out of 55.0 out of 5
Number of Reviews (3)
Write A Review
$332.00

Ships in 2-5 Business Days
Shipping Crate Icon
Free Shipping
Holiday Shipping Schedule
Holiday Schedule -
Extended Warranty
Excludes CA

Free Shipping$332.00Buy Now
Free Shipping$332.00Visit Site
$332.00Visit Site
Ships in 2-5 Business Days
Free Shipping
Free Shipping
*We currently CANNOT ship this product to Alaska, Hawaii or any destination outside of the United States
Share
  • Product Description
  • 3
    Reviews
  • 2
    Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+
Grade
Contractor
Style
Hot Dog
CFM
4.5
CFM Rated @ 90 PSI
Tank Size
3
Gallons
Grade
Contractor
CFM
4.5 CFM Rated @ 90 PSI
Tank Size
3 Gallons
Features
Features
  • High Performance Ultra Quiet Air Compressor
  • Produces only 70dBA; ideal for indoor use where noise is an issue
  • Durable roll cage provides extra protection for motor and pump
  • Great for inside trim, finish carpentry & framing applications
  • Oil-Free Single Stage 2 Cylinder Pump
  • Includes dual intake filters for extra clean air
  • Start/Stop pressure switch measures pressure inside tank
  • Requires no pump maintenance and delivers no oil contamination on your end product, powered equipment, or the environment
  • Heavy-Duty 2.0-HP 1700RPM Motor
  • Oil-free eliminates the need for costly oil changes
  • Draws only 12-amps; works on most household outlets
  • Low amp draw makes it easier to start in cold weather conditions
  • Automatic Thermal Protection
  • Protects the motor from overheating and excessive use
  • Safety relief valve controls and limits the pressure build-up in the system
  • Powerful 120-150 PSI Operating Pressure
  • Puts out 5.5 CFM @ 40 PSI; 4.5 CFM @ 90 PSI
  • Provides faster recovery time and more CFM production
  • 3-Gallon Air Tank
  • Easy access tank drain simplifies maintenance
  • Cord wrap keeps cord nicely wrapped and organized
  • Lightweight, easy to transport & store at only 68 pounds
  • Built-In Regulator With Gauge
  • Tank & tool pressure gauges can be checked at a glance
  • Adjust the airline pressure accurately for peak tool performance
Specifications
Engine
HP
2
Motor
Voltage
115 Volt AC
Phase
1-Phase
dBA
70
Amp Draw
12
Pump
CFM
4.5
CFM Rated @
90 PSI
CFM @ 40 PSI
5.5
Pump Material
Aluminum
Max PSI
150 PSI
Oil Sight Glass
No
Pump Type
Single-Stage
After Cooler
No
Pump Drive
Direct Drive
Oil Type
Oil Free
Tank
Tank Size
3 Gallons
Tank Included
Yes
Tank Outlet
1/4 Inch
Electronic Drain Valve
No
Tank Orientation
Horizontal
Accessories
Pressure Gauge
Yes
Air Dryer
No
Air Filter
Yes
Overview
Weight
68 Pounds
Certification
CSA, ETL
Consumer Warranty
1 Year
Product Length
19.7 Inches
Product Width
19.7 Inches
Product Height
14.75 Inches
Power Type
Electric
UPC
662865012118
Grade
Contractor
Style
Hot Dog
CFM
4.5
CFM Rated @ 90 PSI
Tank Size
3
Gallons
Grade
Contractor
CFM
4.5 CFM Rated @ 90 PSI
Tank Size
3 Gallons
Features
Features
  • High Performance Ultra Quiet Air Compressor
  • Produces only 70dBA; ideal for indoor use where noise is an issue
  • Durable roll cage provides extra protection for motor and pump
  • Great for inside trim, finish carpentry & framing applications
  • Oil-Free Single Stage 2 Cylinder Pump
  • Includes dual intake filters for extra clean air
  • Start/Stop pressure switch measures pressure inside tank
  • Requires no pump maintenance and delivers no oil contamination on your end product, powered equipment, or the environment
  • Heavy-Duty 2.0-HP 1700RPM Motor
  • Oil-free eliminates the need for costly oil changes
  • Draws only 12-amps; works on most household outlets
  • Low amp draw makes it easier to start in cold weather conditions
  • Automatic Thermal Protection
  • Protects the motor from overheating and excessive use
  • Safety relief valve controls and limits the pressure build-up in the system
  • Powerful 120-150 PSI Operating Pressure
  • Puts out 5.5 CFM @ 40 PSI; 4.5 CFM @ 90 PSI
  • Provides faster recovery time and more CFM production
  • 3-Gallon Air Tank
  • Easy access tank drain simplifies maintenance
  • Cord wrap keeps cord nicely wrapped and organized
  • Lightweight, easy to transport & store at only 68 pounds
  • Built-In Regulator With Gauge
  • Tank & tool pressure gauges can be checked at a glance
  • Adjust the airline pressure accurately for peak tool performance
Specifications
Engine
HP
2
Motor
Voltage
115 Volt AC
Phase
1-Phase
dBA
70
Amp Draw
12
Pump
CFM
4.5
CFM Rated @
90 PSI
CFM @ 40 PSI
5.5
Pump Material
Aluminum
Max PSI
150 PSI
Oil Sight Glass
No
Pump Type
Single-Stage
After Cooler
No
Pump Drive
Direct Drive
Oil Type
Oil Free
Tank
Tank Size
3 Gallons
Tank Included
Yes
Tank Outlet
1/4 Inch
Electronic Drain Valve
No
Tank Orientation
Horizontal
Accessories
Pressure Gauge
Yes
Air Dryer
No
Air Filter
Yes
Overview
Weight
68 Pounds
Certification
CSA, ETL
Consumer Warranty
1 Year
Product Length
19.7 Inches
Product Width
19.7 Inches
Product Height
14.75 Inches
Power Type
Electric
UPC
662865012118
Product Specs
+
Specifications
Engine
HP
2
Motor
Voltage
115 Volt AC
Phase
1-Phase
dBA
70
Amp Draw
12
Pump
CFM
4.5
CFM Rated @
90 PSI
CFM @ 40 PSI
5.5
Pump Material
Aluminum
Max PSI
150 PSI
Oil Sight Glass
No
Pump Type
Single-Stage
After Cooler
No
Pump Drive
Direct Drive
Oil Type
Oil Free
Tank
Tank Size
3 Gallons
Tank Included
Yes
Tank Outlet
1/4 Inch
Electronic Drain Valve
No
Tank Orientation
Horizontal
Accessories
Pressure Gauge
Yes
Air Dryer
No
Air Filter
Yes
Overview
Weight
68 Pounds
Certification
CSA, ETL
Consumer Warranty
1 Year
Product Length
19.7 Inches
Product Width
19.7 Inches
Product Height
14.75 Inches
Power Type
Electric
UPC
662865012118
Reviews
(3)
+
Rolair JC20 Reviews & Ratings
Product Q&A
(2)
+
Search Product Q&A's Answered by Gabrielle, the Air Compressor Expert
icon-social-fb1
+
What's the run hour life of this compressor?
Kim
from Louisiana
July 30, 2019
Answer
The pump is rated between 1,500-2,000 hours.
+
Do oil-less compressors last as long as compressors that use oil?
kevin
from Indiana
December 20, 2018
Answer

It is pretty close to oil-lubricated compressors. Truthfully, the life expectancy is even better than some oil-lubricated compressors. You are looking at about 1500-2000 hours for this Rolair unit.



You can learn more about the differences between oil-free and oil-lubricated compressors in this article:https://www.aircompressorsdirect.com/stories/1582-Oil-Lubricated-Vs-Oil-Free-Air-Compressors.html
