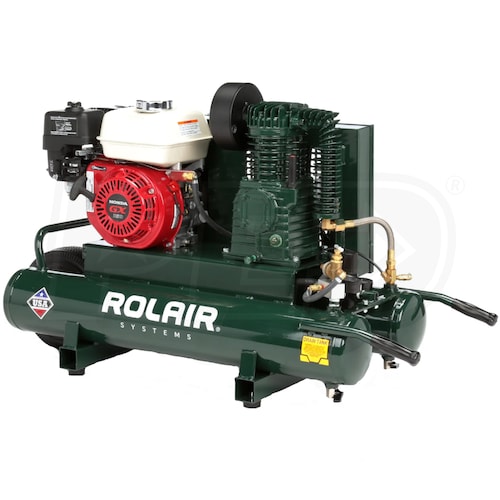

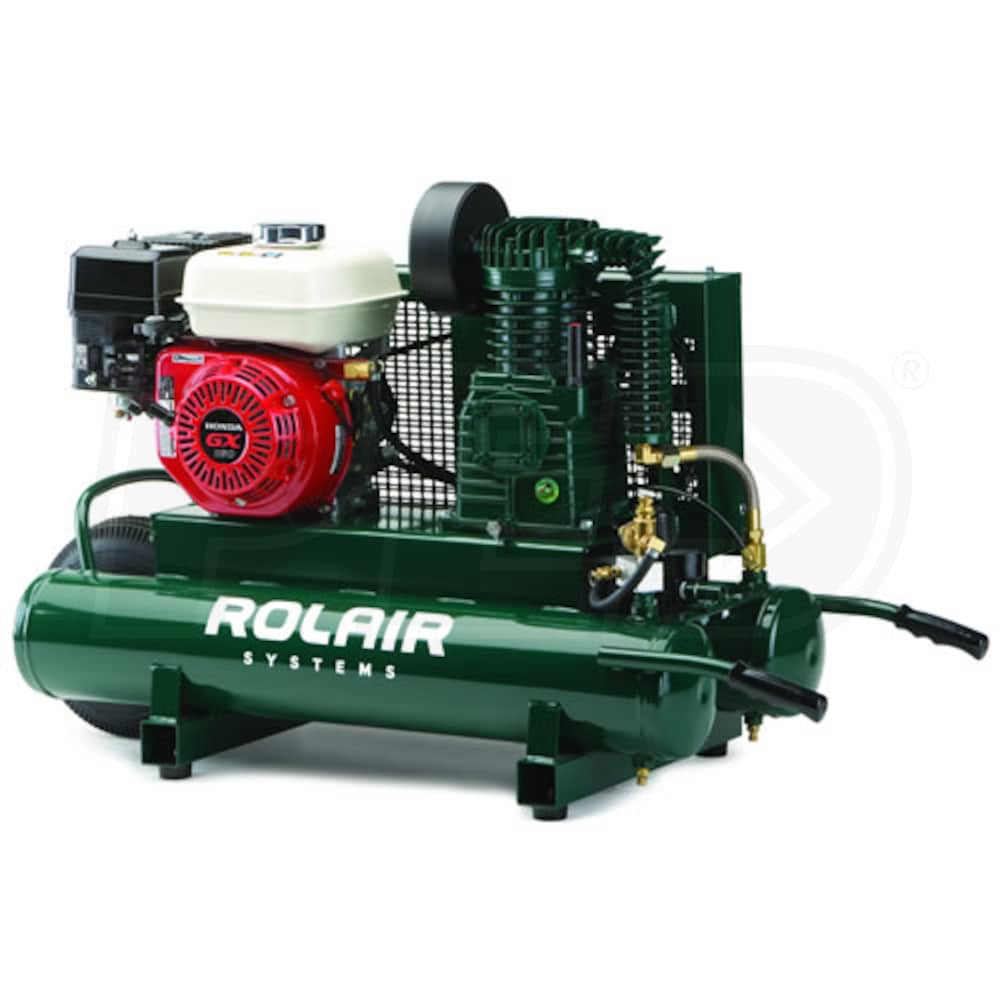

Rolair 5.5-HP 9-Gallon Gas Wheelbarrow Air Compressor w/ Honda Engine
Model:
4090HK17
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Joshua, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
Grade
Contractor
Style
Wheel Barrow
Engine Brand
Honda GX
CFM
8.9
Tank Size
9
Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
- 5.5 HP Honda Commercial Grade Engine
- Quiet, reliable, & easy to start
- Low oil shutdown protects the engine
- Automatic Idle Control
- Provides fuel economy & long service life
- Heavy Duty Single Stage Pump
- Cast-iron twin cylinders get the job done
- Hardened steel reed valve plates are rugged & dependable
- Multi-Finned 11 Inch Flywheel & Air-Cooled Aftercooler
- Pump runs cooler & lasts longer
- Oil Sight Gauge
- Easily maintain the proper oil level
- Totally Enclosed Steel Belt Guard
- Protects during transport and use
- Schmidt belt tightening device for easy maintenance
- Pressure Gauge
- Marked 0-200 in 5 pound graduations for accurate use
California residents see
Warning: This product can expose you to chemicals including Lead which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov
Specifications
4090HK17
General Information
Product Category
Air Compressor - Portable
Engine
HP
5.5
Auto Idle
Yes
Engine Brand
Honda GX
Starting System
Recoil Start
Engine Low Oil Shut-off
Yes
Pump
CFM
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
8.9
CFM Rated @
90 PSI
Pump Material
Aluminum w/ Cast Iron Sleeve
Max PSI
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
135 PSI
Pump Type
Single-Stage
After Cooler
After Cooler
An aftercooler is a mechanical heat exchanger designed to remove the heat and moisture of compression from a compressed air stream so the air is cool and dry enough for use in air-operated equipment. A compressed air aftercooler has three primary functions: Cool the air discharged from the air compressor
Yes
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
Pump Low Oil Shut-off
Prevents the air compressor from operating or restarting without an adequate amount of oil in the compressor
No
Tank
Tank Size
9 Gallons
Tank Outlet
1/4 Inch
Electronic Drain Valve
Electronic Drain Valve
The inexpensive and reliable electric drain valve (EDV) automatically removes condensate from your air system. It has an integral strainer to prevent clogging and saves time and money by eliminating the need for manual draining
No
Tank Orientation
Horizontal
Accessories
Pressure Gauge
Yes
Air Dryer
No
Overview
Product Category
Air Compressor - Portable
Weight
174 Pounds
Consumer Warranty
1 Year
Product Length
46 Inches
Product Width
19 Inches
Product Height
28 Inches
Power Type
Gas
