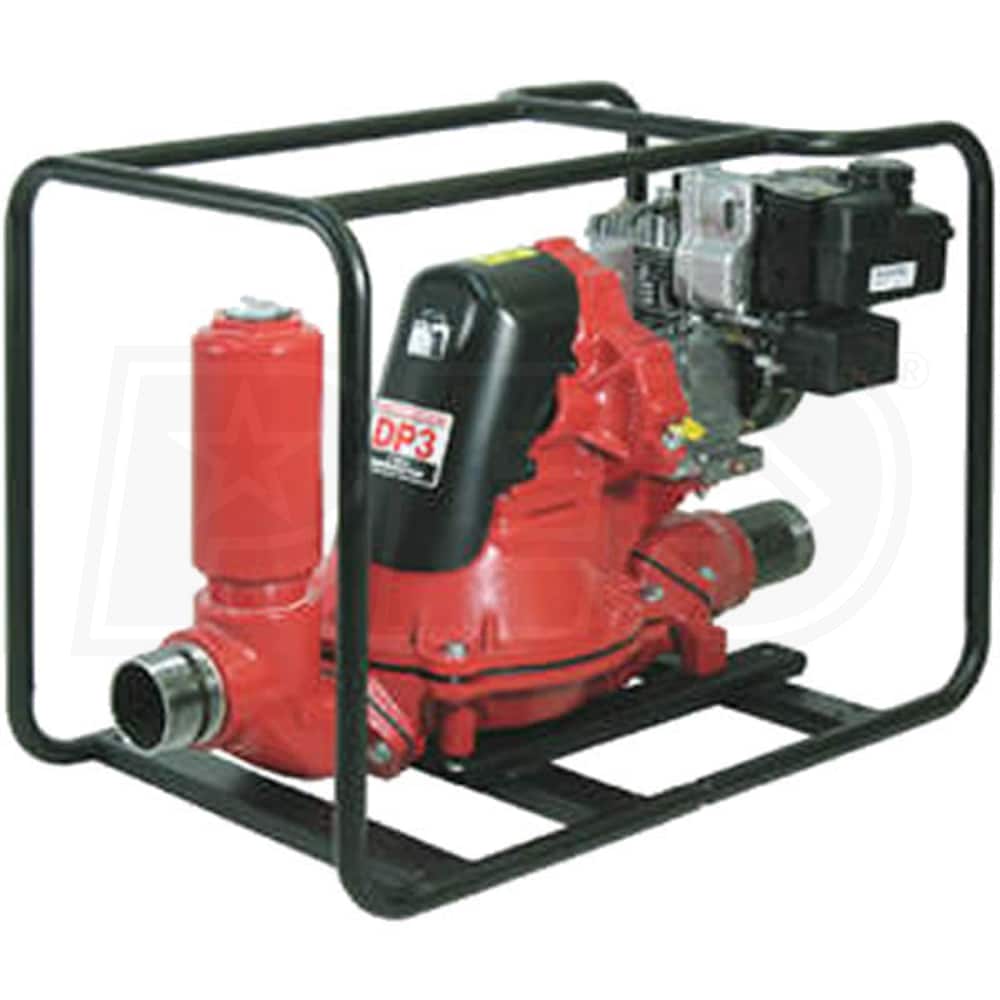

Riverside Pumps DP3B - 80 GPM (3") Diaphragm Pump w/ Briggs & Stratton 550 Series™ Engine
Riverside Pumps DP3B - 80 GPM (3") Diaphragm Pump w/ Briggs & Stratton 550 Series™ Engine
+
Share This Product
-
Product Description
-
Reviews
-
Product Q&A
-
Recommended Accessories
-
How-To Articles
-
Manuals
Product Description
+−
Inlet Size
3"
Style
GPM
80
Gallons
Engine
Inlet Size
3"
Style
Diaphragm
GPM
80 Gallons
Engine
Briggs & Stratton
Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
Features
Features
- Premium Series 3" Diaphragm "Mud Hog" Pump
- Pumps heavy mud/sludge that's too thick for centrifugal pumps
- 127cc Briggs & Stratton 550 Series™ 4-Stroke OHV Engine
- Dura-Bore™ cast iron sleeve to combat wear & abuse
- OHV design for running cooler, cleaner & more fuel efficient
- One-Piece X-Cross Section Aluminum Pump Rod
- Simple, durable design for reliable operation & easy service
- Heavy-Duty Self-Priming Diaphragm Pump
- Neoprene rubber elastomer w/ woven Nylon core
- Air Cushion Chamber (Standpipe)
- Helps to reduce hose and diaphragm stress
- Cast-Aluminum Pump Housing
- Thick-wall design for durability and longevity
- Run-Dry Without Damage To The Pump
- Great for seepage control and varying drainage speeds
- 0.5-Gallon Fuel Tank
- Allows this pump to run over 2 hours
- 1" Steel Roll Cage
- Provides added protection during operation, transportation & storage
- 2-Year Pump & 2-Year Engine Warranty
Specifications
Pump
Gallons Per Minute
80 Gallons
Inlet Diameter
3"
Outlet Diameter
3"
Self Priming
Yes
Pump Head Material
Aluminum
Solids Handling Size
3 inch
Suction Head
15 Feet
Maximum PSI
21.6
Total Head Lift
50 Feet
Submersible
No
Engine
Engine Brand
Briggs & Stratton
Starting System
Recoil Start
Low Oil Shutdown
Yes
Horsepower
3.5 hp
CC
127 cc
Torque
5.5 ft-lbs Net Torque
Fuel Tank Size
0.5 Gallons
Consumer Engine Warranty
3 Years
Commercial Engine Warranty
3 Years
Accessories
Hose
Sold Separately
Overview
Weight
125 Pounds
Consumer Warranty
2 Years
Product Length
33 Inches
Product Width
19 Inches
Product Height
24.5 Inches
Inlet Size
3"
Style
GPM
80
Gallons
Engine
Inlet Size
3"
Style
Diaphragm
GPM
80 Gallons
Engine
Briggs & Stratton
Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
Features
Features
- Premium Series 3" Diaphragm "Mud Hog" Pump
- Pumps heavy mud/sludge that's too thick for centrifugal pumps
- 127cc Briggs & Stratton 550 Series™ 4-Stroke OHV Engine
- Dura-Bore™ cast iron sleeve to combat wear & abuse
- OHV design for running cooler, cleaner & more fuel efficient
- One-Piece X-Cross Section Aluminum Pump Rod
- Simple, durable design for reliable operation & easy service
- Heavy-Duty Self-Priming Diaphragm Pump
- Neoprene rubber elastomer w/ woven Nylon core
- Air Cushion Chamber (Standpipe)
- Helps to reduce hose and diaphragm stress
- Cast-Aluminum Pump Housing
- Thick-wall design for durability and longevity
- Run-Dry Without Damage To The Pump
- Great for seepage control and varying drainage speeds
- 0.5-Gallon Fuel Tank
- Allows this pump to run over 2 hours
- 1" Steel Roll Cage
- Provides added protection during operation, transportation & storage
- 2-Year Pump & 2-Year Engine Warranty
Specifications
Pump
Gallons Per Minute
80 Gallons
Inlet Diameter
3"
Outlet Diameter
3"
Self Priming
Yes
Pump Head Material
Aluminum
Solids Handling Size
3 inch
Suction Head
15 Feet
Maximum PSI
21.6
Total Head Lift
50 Feet
Submersible
No
Engine
Engine Brand
Briggs & Stratton
Starting System
Recoil Start
Low Oil Shutdown
Yes
Horsepower
3.5 hp
CC
127 cc
Torque
5.5 ft-lbs Net Torque
Fuel Tank Size
0.5 Gallons
Consumer Engine Warranty
3 Years
Commercial Engine Warranty
3 Years
Accessories
Hose
Sold Separately
Overview
Weight
125 Pounds
Consumer Warranty
2 Years
Product Length
33 Inches
Product Width
19 Inches
Product Height
24.5 Inches
Product Specs
+−
Specifications
Pump
Gallons Per Minute
80 Gallons
Inlet Diameter
3"
Outlet Diameter
3"
Self Priming
Yes
Pump Head Material
Aluminum
Solids Handling Size
3 inch
Suction Head
15 Feet
Maximum PSI
21.6
Total Head Lift
50 Feet
Submersible
No
Engine
Engine Brand
Briggs & Stratton
Starting System
Recoil Start
Low Oil Shutdown
Yes
Horsepower
3.5 hp
CC
127 cc
Torque
5.5 ft-lbs Net Torque
Fuel Tank Size
0.5 Gallons
Consumer Engine Warranty
3 Years
Commercial Engine Warranty
3 Years
Accessories
Hose
Sold Separately
Overview
Weight
125 Pounds
Consumer Warranty
2 Years
Product Length
33 Inches
Product Width
19 Inches
Product Height
24.5 Inches
