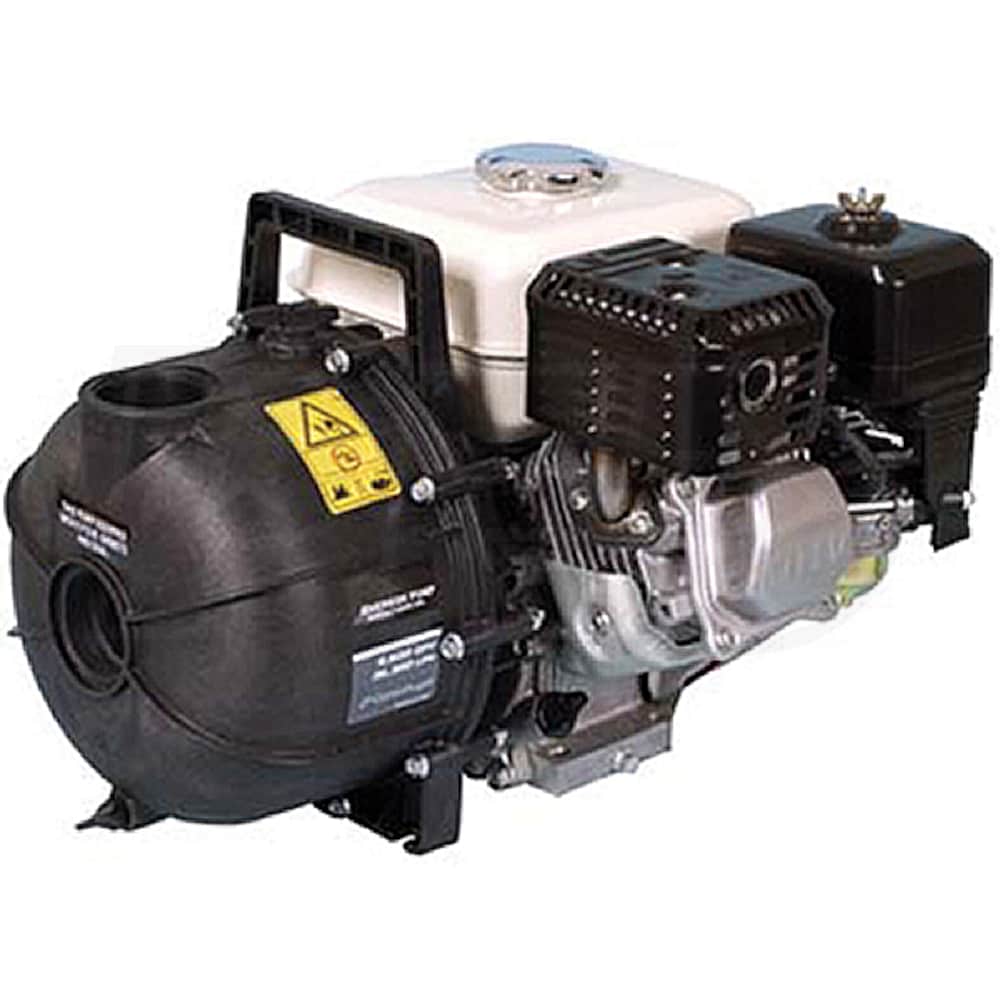

Riverside Pumps AP52H - 160 GPM (2") Chemical Pump w/ Honda GX Engine

Model:

AP52H

Write A Review
$530.00
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
Ships in 2-5 Business Days

Riverside Pumps AP52H - 160 GPM (2
Riverside Pumps AP52H - 160 GPM (2") Chemical Pump w/ Honda GX Engine
Model: AP52H
$530.00
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

Power Equipment Direct expert image
Expert Recommended Accessories Selected by Jim, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Inlet Size

2 Inch

Style

Chemical

GPM

160 Gallons

Engine

Honda GX

  • Riverside Pumps 2" AG Series Agricultural Pump
  • Simple, proven-reliable design, provides excellent performance
  • 163cc Honda GX160 OHV 4-Stroke Engine
  • OHV design for increased efficiency and optimal power transfer
  • Oil Alert® Warning System for added engine protection
  • .825-Gallon Fuel Tank
  • Provides up to 2.1 hours of run time per tank
  • Thermoplastic Pump Housing Volute & Impeller
  • Fiber-reinforced design helps extend pump life
  • EPDM Pump Seals
  • Chemical-resistant design compatible with agricultural chemicals
  • Self-Priming Design
  • Requires initial priming to operate
  • 2" FNPT Suction & Discharge
  • Makes it easy to connect hoses/pipes
  • Lightweight & Compact
  • Only weighs 45 lbs., Built-in transport handle for ease of use
  • 1 Year (Pump) & 2-Year (Engine) Warranty

Specifications

AP52H
specs product image PID-83040
General Information
Product Category
Water Pump
Pump
Gallons Per Minute
160 Gallons
Inlet Diameter
2 Inch
Outlet Diameter
2 Inch
Self Priming
Yes
Pump Head Material
Thermoplastic
Pump Housing Drain
Yes
Quick Clean Out
No
Impeller Material
Plastic
Handles Solids
No
Suction Head
25 Feet
Maximum PSI
51.9
Total Head Lift
120 Feet
Submersible
No
Engine
Engine Brand
Honda GX
Starting System
Recoil Start
Engine Cycles
4-Cycle
Low Oil Shutdown
Yes
Horsepower
5.5 hp
CC
163 cc
Fuel Tank Size
.825 Gallons
Run Time
2.1 Hours
Consumer Engine Warranty
2 Years
Overview
Product Category
Water Pump
Weight
45 Pounds
Consumer Warranty
2 Years
Product Length
18.5 Inches
Product Width
15 Inches
Product Height
13.2 Inches
