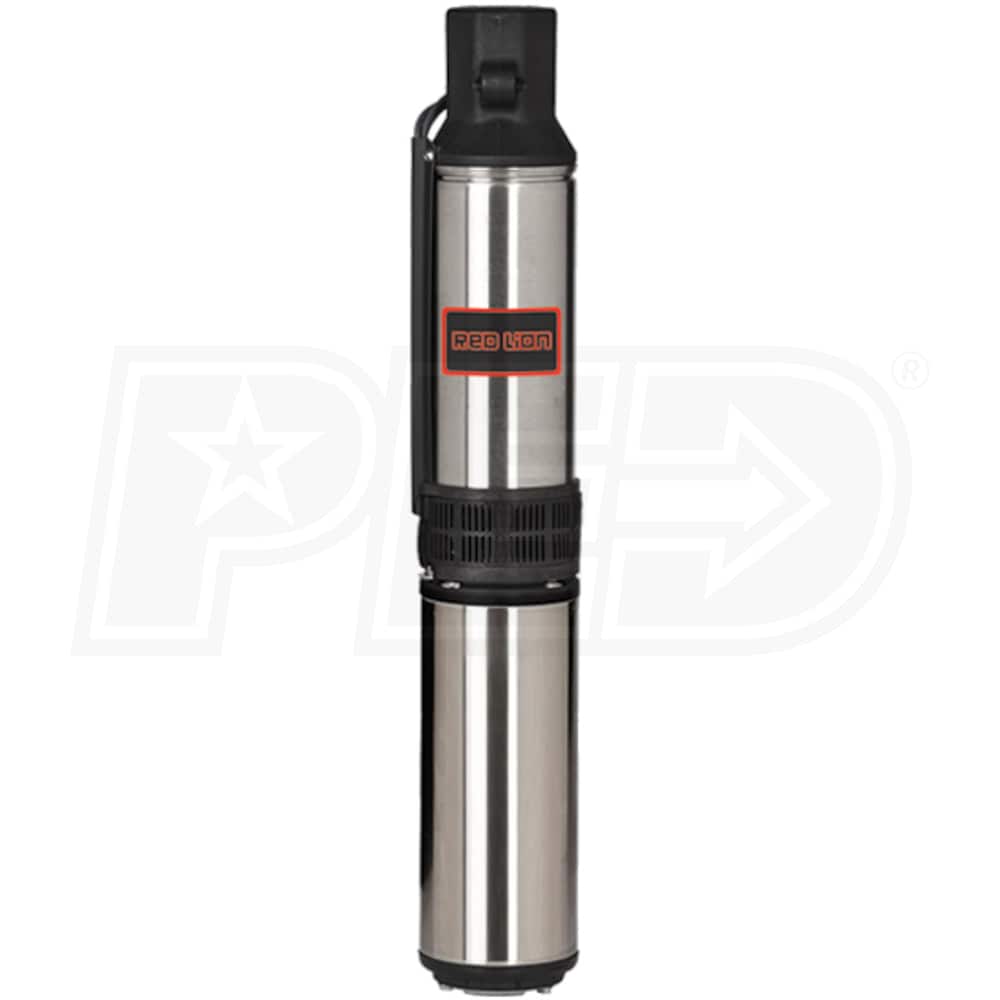

Red Lion 12 GPM 1 HP Deep Well Submersible Pump (3-Wire 230V) w/ Control Box

Red Lion 12 GPM 1 HP Deep Well Submersible Pump (3-Wire 230V) w/ Control Box
Our Price
Compare Prices
Shipping Info
Model: RL12G10-3W2V
(Based on expert analysis, manufacturer ratings and customer reviews)
4.7 out of 54.7 out of 54.7 out of 54.7 out of 54.7 out of 5
Number of Reviews (27)
Write A Review
$444.00
Only 5 In-Stock
Ships Wednesday, Dec 12th
Free Shipping
Holiday Shipping Schedule
Holiday Schedule -
In-Stock Free Shipping$444.00Buy Now
In-Stock Free Shipping$444.00Visit Site
$444.00Visit Site

(as of 11:22 CST - Details)Sales Tax Extra $448.57Visit Site
Sales Tax Extra $485.62Visit Site
Only 5 In-Stock
Ships Wednesday, Dec 12th
Free Shipping
Free Shipping
Expedited Shipping
Expedited Shipping
*We currently CANNOT ship this product to Canada or any destination outside of the United States
Share
  • Product Description
  • 27
    Reviews
  • 8
    Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+

Inlet Size
N/A
Style
Deep Well
GPM
12
Gallons
Inlet Size
N/A
Style
Deep Well
GPM
12 Gallons
Features
Features
  • 4" Submersible Deep Well Pump
  • Ideal for use with 4" I.D. or larger wells
  • Powered By Industry Standard 3-Wire 230V Motor
  • Proven superior quality & performance ensuring quiet operation
  • Hex Rubber Bearing w/ Extra-Large Surface
  • Provides shaft stability and multiple flow channels
  • Keeps small particles such as sand away from bearing surfaces
  • Built-In Check Valve
  • Prevents backflow and ensures system pressure
  • Built-In Suction Screen
  • Helps to prevent debris from clogging impellers
  • 1-1/4" NPT Thermoplastic Discharge Head
  • Provides full-flow performance without the risk of corrosion
  • Includes Industry Standard Red Lion Control Box
  • Eliminates confusion for control box selection
Specifications
Motor
Voltage
240 Volt
Wire
3-Wire
Pump
Gallons Per Minute
12 Gallons
Outlet Diameter
1-1/4"
Housing Material
Stainless Steel
Impeller Material
Plastic
Total Head Lift
380 Feet
Maximum PSI
80
Submersible
Yes
Engine
Continuous Operation
Yes
Horsepower
1 hp
Accessories
Control Box
Yes
Overview
Made in USA
No
Weight
32 Pounds
Consumer Warranty
3 Years
UPC
010121141834

Inlet Size
N/A
Style
Deep Well
GPM
12
Gallons
Inlet Size
N/A
Style
Deep Well
GPM
12 Gallons
Features
Features
  • 4" Submersible Deep Well Pump
  • Ideal for use with 4" I.D. or larger wells
  • Powered By Industry Standard 3-Wire 230V Motor
  • Proven superior quality & performance ensuring quiet operation
  • Hex Rubber Bearing w/ Extra-Large Surface
  • Provides shaft stability and multiple flow channels
  • Keeps small particles such as sand away from bearing surfaces
  • Built-In Check Valve
  • Prevents backflow and ensures system pressure
  • Built-In Suction Screen
  • Helps to prevent debris from clogging impellers
  • 1-1/4" NPT Thermoplastic Discharge Head
  • Provides full-flow performance without the risk of corrosion
  • Includes Industry Standard Red Lion Control Box
  • Eliminates confusion for control box selection
Specifications
Motor
Voltage
240 Volt
Wire
3-Wire
Pump
Gallons Per Minute
12 Gallons
Outlet Diameter
1-1/4"
Housing Material
Stainless Steel
Impeller Material
Plastic
Total Head Lift
380 Feet
Maximum PSI
80
Submersible
Yes
Engine
Continuous Operation
Yes
Horsepower
1 hp
Accessories
Control Box
Yes
Overview
Made in USA
No
Weight
32 Pounds
Consumer Warranty
3 Years
UPC
010121141834
Product Specs
+
Specifications
Motor
Voltage
240 Volt
Wire
3-Wire
Pump
Gallons Per Minute
12 Gallons
Outlet Diameter
1-1/4"
Housing Material
Stainless Steel
Impeller Material
Plastic
Total Head Lift
380 Feet
Maximum PSI
80
Submersible
Yes
Engine
Continuous Operation
Yes
Horsepower
1 hp
Accessories
Control Box
Yes
Overview
Made in USA
No
Weight
32 Pounds
Consumer Warranty
3 Years
UPC
010121141834
Reviews
(27)
+
Red Lion RL12G10-3W2V Reviews & Ratings
96% of Reviewers Recommend This Product
Product Q&A
(8)
+
Search Product Q&A's Answered by Jim, the Water Pump Expert
icon-social-fb1
+
Does this pump have a rope tie-off to prevent losing it in the well?
David M.
from Arkansas
March 14, 2018
Answer
Yes, it does. This should actually be a pretty standard feature that should come with any submersible deep well pump.
+
I have read that this pump utilizes a Franklin motor, is this true?
Ken K.
from Texas
May 10, 2017
Answer
Red Lion, while a division of Franklin Electric, does NOT use a Franklin motor on their deep well pumps. The Red Lion Deep Well Pumps include a VHC motor which is also a division of Franklin Electric. Little Giant Deep Well Pumps, on the other hand, are also a division of Franklin Electric and DO include the Franklin motor.
+
In have 4 inch ID pvc well casing ..your product description says it will fit. What is the width of the pump?
Vince
from Indiana
June 16, 2016
Answer
The width of these pumps average 3.90" and WILL fit inside a 4" well casing.
If you have any other questions, please let me know.
+
I plan to replace a 30 yer old pump that is at 200 ft. and lower the new pump to 250 ft in a 400 ft deep well. Will I need to a check valve mid way up as well as at the well head?
Ken G
from California
July 27, 2015
Answer
Most submersible deep well pumps include a built-in check valve at the discharge port of the pump and It is recommended that additional spring loaded in-line check valves be installed in the drop pipe @ 200ft intervals only.
+
Does wiring come with the pump
Dwight B
from Louisiana
June 11, 2015
Answer
The Red Lion deep well pumps include 12" - 18" of wire and a waterproof splice kit and instructions. All other wiring does need to be supplied by you or your installer.
+
what guage wire should be run to this pump if set at two hundred feet
Billy
from West Virginia
June 22, 2014
Answer
Thank you for your interest in Water Pumps Direct. Information on the wiring gauge based on the distance for all Red Lion pumps can be found on page 3 of the OWNER'S MANUAL.
+
Jose, what is the amperage of a Red Lion 1.5 220 deep well pump.
Cliff
from South Carolina
May 11, 2013
Answer
Unfortunately, we do not have access to the amp ratings for these pumps. Please call Red Lion tech support at 888-956-0000 for further assistance.
+
what is the purpose of the control box and can it be eliminated?
Armand
from Ohio
July 09, 2012
Answer
Three wire submersible motors require a control box. Control boxes contain a starting relay, starting capacitors and in some cases overload protectors. Two wire submersible motors have these components built into them and do not require a control box.

One benefit of using a three wire motor with a control box is that some of the components that are subject to failure are located above ground where you can get to them without pulling the pump.

Control boxes should never be mounted in direct sunlight or in locations that are extremely hot, this causes the capacitor life to be shortened and can cause nuisance overload trips. Do not mount the control box in a humid location such as a damp well pit since voltage breakdown and corrosion will accelerate component failure in this condition.

Control boxes are designed for vertical, upright mounting only. Any other position will affect the operation of voltage sensing relays in larger sizes and may result in water leakage.
