Red Lion RL12G07-3W2V - 3/4 HP Deep Well Submersible Pump (3-Wire 230V) w/ Control Box for sale.

Power Equipment Direct Offers Free Shipping and a Tax-Free Guarantee on Red Lion RL12G07-3W2V.

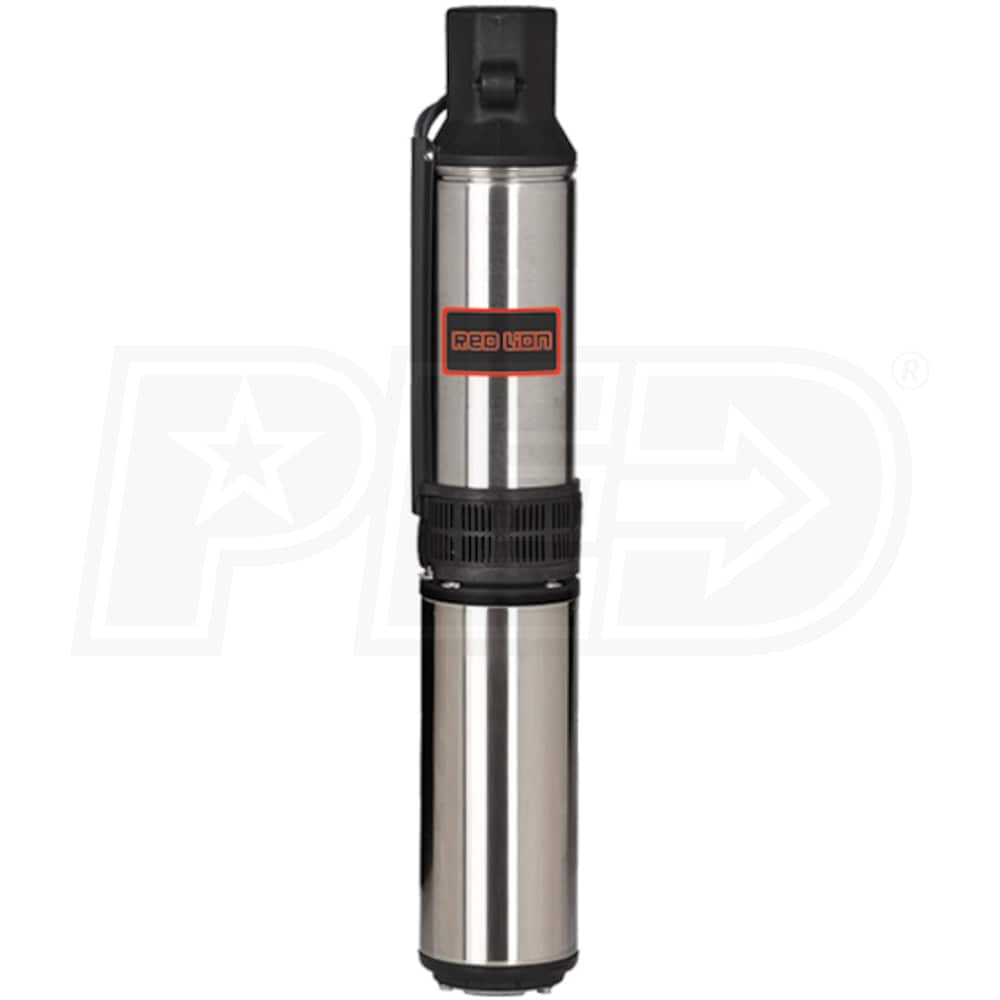

Red Lion 3/4 HP Deep Well Submersible Pump (3-Wire 230V) w/ Control Box

Close
Red Lion Power Equipment and Accessories
Model: RL12G07-3W2V
(Based on expert analysis, manufacturer ratings and customer reviews)
4.7 out of 54.7 out of 54.7 out of 54.7 out of 54.7 out of 5
14 Reviews
Share This Product
Plus 1 This Product
Tweet This Product
Pin It!
Currently on Backorder Backordered
Estimated Availability
October 03, 2017
Notify Me When In-Stock
Remind Me
$409.99
I understand this product is on backorder with an estimated ship date of October 03, 2017

StoreShippingPriceShop

Free Shipping$409.99
No Sales Tax*
(Except IL)
Buy

Free Shipping$409.99
No Sales Tax*
(Except IL)
Visit Site

$409.99
(as of 06:57 CST - Details)
Sales Tax Extra
Visit Site

$520.19
Sales Tax Extra
Visit Site

$421.70
Sales Tax Extra
Visit Site
  • Features
  • Specs
  • 3
    Q&A
  • 14
    Reviews
  • Articles
  • Shipping
  • Accessories

Inlet Size
N/A
Style
GPM
12
Gallons
4" Submersible Deep Well Pump

Ideal for use with 4" I.D. or larger wells

Powered By Industry Standard 3-Wire 230V Motor
Proven superior quality & performance ensuring quiet operation

Hex Rubber Bearing w/ Extra-Large Surface
Provides shaft stability and multiple flow channels
Keeps small particles such as sand away from bearing surfaces

Built-In Check Valve
Prevents backflow and ensures system pressure

Built-In Suction Screen
Helps to prevent debris from clogging impellers

1-1/4" NPT Thermoplastic Discharge Head
Provides full-flow performance without the risk of corrosion

Includes Industry Standard Red Lion Control Box
Eliminates confusion for control box selection


Motor
Voltage
240 Volt
Wire
3-Wire
Engine
Continuous Operation
Yes
Horsepower
0.75 hp
Pump
Gallons Per Minute
12 Gallons
Outlet Diameter
1-1/4"
Housing Material
Stainless Steel
Impeller Material
Plastic
Total Head Lift
240 Feet
Maximum PSI
80
Submersible
Yes
Overview
Made in USA
No
Weight
28 Pounds
Consumer Warranty
3 Years
UPC
010121141827
Model
RL12G07-3W2V
Download Documents
Need Help? Call Our Experts.
View Accessories For This Product.
Read Reviews
How-To Library
  3 Questions
Q: In have 4 inch ID pvc well casing ..your product description says it will fit. What is the width of the pump?
by Vince from Indiana on June 16, 2016

A: The width of these pumps average 3.90" and WILL fit inside a 4" well casing.
If you have any other questions, please let me know.
by Jim, Product Expert

Q: what parts are involved with submersible pumps that can fail and breakdown or if it doesn't work you just have to replace the entire pump?
by Sal from New York on January 22, 2014

A: When it comes to 2-wire deep well submersible pumps, the pump starting controls are located inside the pump. Any of these components can fail and cause the pump to become inoperable. By installing a 3-wire pump, those components would be located inside a CONTROL BOX, making repairs much easier when failure of these components are the cause of your pump not operating. Of course if the pump has failed due to burnt motor windings or some other cause, would would still need to pull and replace the pump, but you would have a better understanding of the pump status when the pump starting components are above ground as opposed to 50-500 feet or more, below ground.
by Jim, Product Expert

Q: what is the purpose of the control box and can it be eliminated?
by Armand from Ohio on July 09, 2012

A: Three wire submersible motors require a control box. Control boxes contain a starting relay, starting capacitors and in some cases overload protectors. Two wire submersible motors have these components built into them and do not require a control box.

One benefit of using a three wire motor with a control box is that some of the components that are subject to failure are located above ground where you can get to them without pulling the pump.

Control boxes should never be mounted in direct sunlight or in locations that are extremely hot, this causes the capacitor life to be shortened and can cause nuisance overload trips. Do not mount the control box in a humid location such as a damp well pit since voltage breakdown and corrosion will accelerate component failure in this condition.

Control boxes are designed for vertical, upright mounting only. Any other position will affect the operation of voltage sensing relays in larger sizes and may result in water leakage.
by Jim, Product Expert

Red Lion RL12G07-3W2V Reviews & Ratings
Overall Rating
Features
5/5
Quality
5/5
Performance
5/5
Value
5/5
Overall
4.7 out of 54.7 out of 54.7 out of 54.7 out of 54.7 out of 5
Pros
Price (7)
High Quality (5)
Quiet (4)
I'd Buy It Again (3)
Fast (2)
Cons
Motor Not Thermally Prot... (1)
Durability (1)
Unreliable (1)
93% of respondents would recommend this product to a friend
14 Reviews  Sort by

Larry M.
Harper, KS
Purchased from Power Equipment Direct
Purchased 12/6/16
Most Helpful Positive Review
REVIEWED
JAN.
09
2017
5 out of 55 out of 55 out of 55 out of 55 out of 5
So Far An Excellent Pump
I have installed three of these pumps. Two were purchased by the owners of the wells and the third I purchased myself for a small water district and all three of these pumps are performing perfectly. What more can I say!
Pros: Price, Quiet, Reliable
Larry Recommends This Red Lion Product
Larry's Experience With Power Equipment Direct
Web Site
5/5

Service
5/5

Shipping
5/5
"Had a fast response regarding the order and delivery of the pump."
 more
Was this review helpful?
53
C H.
Centerville, TN
Purchased from Power Equipment Direct
Purchased 7/14/17
REVIEWED
AUG.
05
2017
5 out of 55 out of 55 out of 55 out of 55 out of 5
Pumping Well (no Pun Meant) So Far For Three Weeks--no Issues!
We are first time do-it-yourself well pump installers and we had absolutely no issues with the installation of this well pump or the control box that came with this brand. We chose this product based upon it's reputation and its motor. Price for us was secondary. Thankfully, Red Lion has not out-priced itself against the competition.

We dropped this pump 140 feet down using 20 foot sections of #40 PVC pipe and pipe dope. On the pump discharge outlet we wrapped the thread five times with... more
Pros: Price, High Quality, Durable, Brand Reputation
C Recommends This Red Lion Product
C's Experience With Power Equipment Direct
Web Site
5/5

Service
5/5

Shipping
5/5
"The customer service we received from Water Pumps Direct was exceptional! I cannot stress the importance of great customer service when your family faces an emergency like having no running water. We had already been without running water for two days before buying this pump. We placed our order over the phone with a professional customer service agent on a Friday afternoon. We payed for Second Day Air and received our new pump on the day promised. We are very thankful to this company for taking our issue very seriously and helping us to find the best solution for delivery based upon our budget."
 more
Was this review helpful?
10
Braden D.
Home, KS
Purchased from Power Equipment Direct
Purchased 7/22/17
REVIEWED
AUG.
14
2017
5 out of 55 out of 55 out of 55 out of 55 out of 5
Pump Is Working Great
Replaced a similar pump. Pressure is great. Was easy to install and saved a lot of money doing it myself.
Pros: Price, High Quality
Braden Recommends This Red Lion Product
Braden's Experience With Power Equipment Direct
Web Site
5/5

Service
5/5

Shipping
5/5
"Product showed up on time."
 more
Was this review helpful?
01
Jeffrey S.
New Holland, PA
Purchased from Power Equipment Direct
Purchased 6/17/13
REVIEWED
AUG.
10
2013
5 out of 55 out of 55 out of 55 out of 55 out of 5
Installed Pump Ourselves
We purchased a piece of land that had an existing well drilled on it. Unfortunately the pump in the well went bad, since it hadn't been used in over 8 years. We purchased the new pump from Power Equipment Direct, and installed it ourselves. The directions that came with it were extremely helpful and made the install go smoothly. Toughest part of the job for us was pulling the old pump and 200" of pipe out. Putting in the new pump was a breeze (gravity works very well at sending things south).
Pros: Easy To Use, Quiet, Fast, High Quality
Jeffrey Recommends This Red Lion Product
Was this review helpful?
80
Bob T.
Pittsburgh, PA
Purchased from Power Equipment Direct
Purchased 1/16/15
REVIEWED
FEB.
15
2015
5 out of 55 out of 55 out of 55 out of 55 out of 5
Customer Service
You guys are the best!!!!! I had a problem with a deep well pump that I bought, and you guys came through with flying colors. No runaround. Just plain excellent service. I wish you sold cars too!!!!!!!

Thanks again to water pumps direct and red lion for the great service and help when I needed it.
Pros: Price, I'd Buy It Again, High Quality, Fast
Bob Recommends This Red Lion Product
Bob's Experience With Power Equipment Direct
Web Site
5/5

Service
5/5

Shipping
5/5
"Pump quit working. I called the service dept and they worked with me. The tech help at red lion was great. And they back up their product, no if's, ands, or buts. Your service dept. too."
 more
Was this review helpful?
70
Timothy P.
Fairlee, VT
Purchased from Power Equipment Direct
Purchased 8/3/15
Total Reviews
2 Reviews
REVIEWED
AUG.
24
2015
1 out of 51 out of 51 out of 51 out of 51 out of 5
Motor Not Heat Protected.. Beware!!!
Unfortunately, an ounce of prevention has not been included in this pump. There is NO thermal protection provided, thus, if your water lever drops below the pump at any time, your pump motor will burn out quickly. This entails many "pounds of cure" for a simple preventative exclusion. Why?????? Why is there no thermal protection on a $400.00 plus appliance that is difficult to reach??? Makes no sense.

Buy only a thermally protected pump.
Cons: Unreliable, Durability, Motor Not Thermally Protected
Timothy Does Not Recommend This Product
Jim, the Water Pump Expert
Product Expert
Timothy,
I'm sorry to hear of the issue you are experiencing with your pump. The Red Lion pumps do actually include thermal protection, however if the pump continues to go off from thermal overload, this could cause a non-warrantied pump failure. Most pump suppliers and manufacturers do provide protection devices for this type of possibility that are designed to save your pump. These issues can be caused by many things including a lower water table, wrong pump installed or possibly a defect in the pump. I would suggest calling Red Lion tech support at 888-956-0000 to get their take on this. If, by chance, they deem the pump as defective, please get back to me with the name of the tech that you spoke to and their diagnosis and I'll be happy to initiate the warranty replacement procedure for you.

Sincerely,
Jim Owiecki
Water Pump Product Expert
800-710-7499 X125
630-685-0025 Direct
james@pedstores.com
more
Was this review helpful?
60
Ed T.
Dobbins, CA
Purchased from Power Equipment Direct
Purchased 5/14/13
Total Reviews
2 Reviews
REVIEWED
JUN.
26
2013
5 out of 55 out of 55 out of 55 out of 55 out of 5
3/4 Hp Well Pump
The pump was easy to install and produced more water than the specifications. Good Pump!!!
Pros: Price, Exceeded Expectations, I'd Buy It Again
Ed Recommends This Red Lion Product
Was this review helpful?
60
Lester A.
Talladega, AL
Purchased from Power Equipment Direct
Purchased 10/16/13
REVIEWED
NOV.
07
2013
5 out of 55 out of 55 out of 55 out of 55 out of 5
Red Lion 3/4hp Deep Well Submersible Pump
I am very pleased with the well pump. We installed it on 11/02/13, it is operating fine so far. Hope it last as long as my old pump, 39 years.
Pros: Quiet, Price, Light Weight, Reliable
Lester Recommends This Red Lion Product
Was this review helpful?
30
Danny M.
Florence, OR
Purchased from Power Equipment Direct
Purchased 8/22/16
REVIEWED
SEP.
13
2016
5 out of 55 out of 55 out of 55 out of 55 out of 5
Great Service
Great selection and fast shipping price very good. Pump works better than expected.
Danny Recommends This Red Lion Product
Was this review helpful?
53
Gary S.
Elgin, OR
Purchased from Power Equipment Direct
Purchased 7/1/15
REVIEWED
JUL.
28
2015
5 out of 55 out of 55 out of 55 out of 55 out of 5
Installed Red Lion 3/4 Horse Pump
The pump is working quite well, i've only had it in my 200 ft. well for two wks. I hope it last as long as my last wards pump 38 years.
Gary Recommends This Red Lion Product
Was this review helpful?
20
Vladimir S.
Warminster, PA
Purchased from Power Equipment Direct
Purchased 10/27/15
REVIEWED
DEC.
09
2015
5 out of 55 out of 55 out of 55 out of 55 out of 5
Great Pump & Great Price
Don't have any complaints. I have a deep well and was quoted a lot of money to just remove the old pump and diagnose the issue. This was a great price and so far so good. Have been using it for 2 months. No complaints!
Vladimir Recommends This Red Lion Product
Was this review helpful?
10
