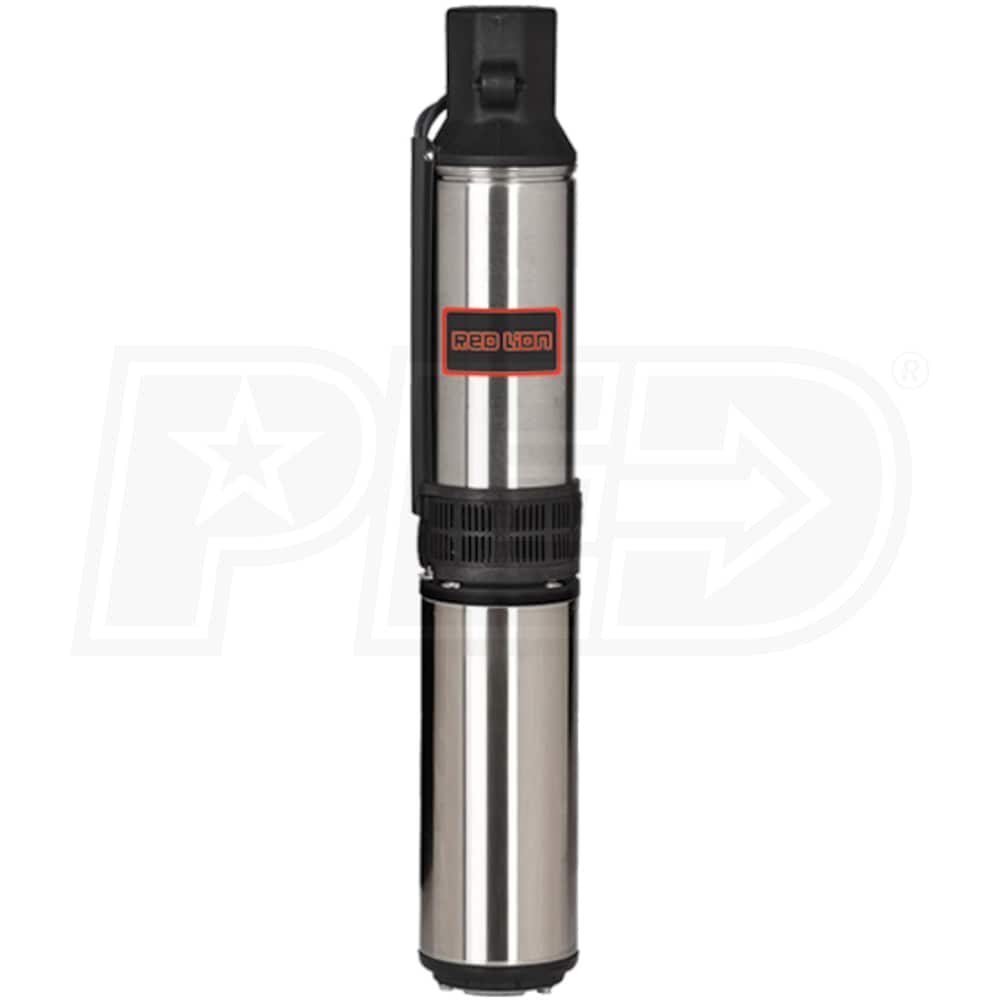

Red Lion 12 GPM 3/4 HP Deep Well Submersible Pump (2-Wire 230V)
Model: 14942403
+
Share This Product
-
Product Description
-
27Reviews
-
5Product Q&A
-
Recommended Accessories
-
How-To Articles
-
Manuals
Product Description
+−
Inlet Size
N/A
Style
GPM
12
Gallons
Inlet Size
N/A
Style
Deep Well
GPM
12 Gallons
Features
Features
- 4" Submersible Deep Well Pump (2-Wire 230V)
- Ideal for use with 4" I.D. or larger wells
- Powered By Industry Standard 3/4 HP Motor
- Proven superior quality & performance ensuring quiet operation
- Hex Rubber Bearing w/ Extra-Large Surface
- Provides shaft stability and multiple flow channels
- Keeps small particles such as sand away from bearing surfaces
- Built-In Check Valve
- Prevents back-flow and ensures system pressure
- Built-In Suction Screen
- Helps to prevent debris from clogging impellers
- 1-1/4" NPT Thermoplastic Discharge Head
- Provides full-flow performance without the risk of corrosion
Specifications
Motor
Voltage
240 Volt
Wire
2-Wire
Pump
Gallons Per Minute
12 Gallons
Outlet Diameter
1-1/4"
Housing Material
Stainless Steel
Impeller Material
Plastic
Maximum PSI
80

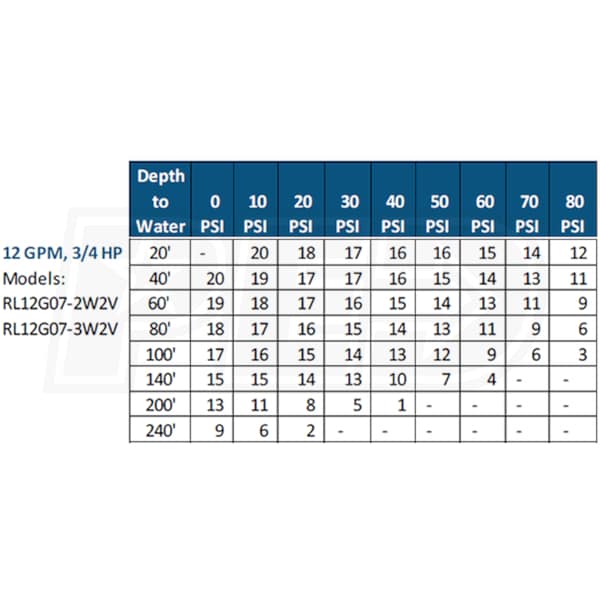

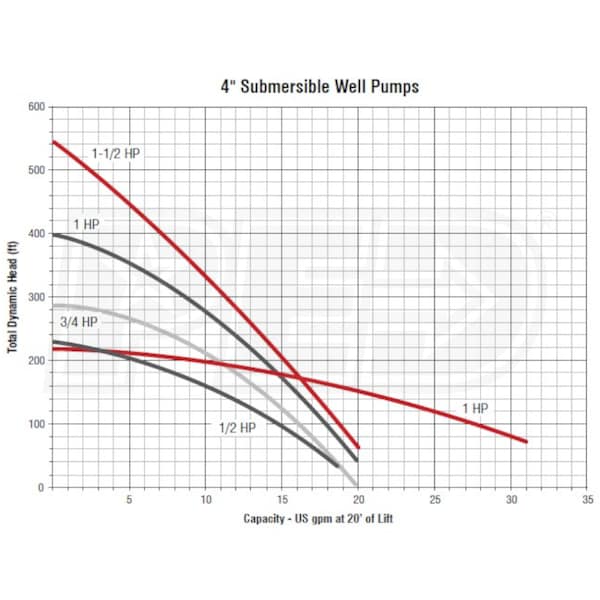

Total Head Lift
240 Feet
Submersible
Yes
Engine
Continuous Operation
Yes
Horsepower
0.75 hp
Overview
Weight
24 Pounds
Made in USA
No
Consumer Warranty
3 Years
UPC
010121141797
Additional Model Numbers
RL12G07-2W2V, 14942403
Inlet Size
N/A
Style
GPM
12
Gallons
Inlet Size
N/A
Style
Deep Well
GPM
12 Gallons
Features
Features
- 4" Submersible Deep Well Pump (2-Wire 230V)
- Ideal for use with 4" I.D. or larger wells
- Powered By Industry Standard 3/4 HP Motor
- Proven superior quality & performance ensuring quiet operation
- Hex Rubber Bearing w/ Extra-Large Surface
- Provides shaft stability and multiple flow channels
- Keeps small particles such as sand away from bearing surfaces
- Built-In Check Valve
- Prevents back-flow and ensures system pressure
- Built-In Suction Screen
- Helps to prevent debris from clogging impellers
- 1-1/4" NPT Thermoplastic Discharge Head
- Provides full-flow performance without the risk of corrosion
Specifications
Motor
Voltage
240 Volt
Wire
2-Wire
Pump
Gallons Per Minute
12 Gallons
Outlet Diameter
1-1/4"
Housing Material
Stainless Steel
Impeller Material
Plastic
Maximum PSI
80
Total Head Lift
240 Feet
Submersible
Yes
Engine
Continuous Operation
Yes
Horsepower
0.75 hp
Overview
Weight
24 Pounds
Made in USA
No
Consumer Warranty
3 Years
UPC
010121141797
Additional Model Numbers
RL12G07-2W2V, 14942403
Product Specs
+−
Specifications
Motor
Voltage
240 Volt
Wire
2-Wire
Pump
Gallons Per Minute
12 Gallons
Outlet Diameter
1-1/4"
Housing Material
Stainless Steel
Impeller Material
Plastic
Maximum PSI
80
Total Head Lift
240 Feet
Submersible
Yes
Engine
Continuous Operation
Yes
Horsepower
0.75 hp
Overview
Weight
24 Pounds
Made in USA
No
Consumer Warranty
3 Years
UPC
010121141797
Additional Model Numbers
RL12G07-2W2V, 14942403
Product Q&A
(5)
+−
Search Product Q&A's
Answered by Jim, the Water Pump Expert
+−
Does this pump have a rope tie-off to prevent losing it in the well?
David M.
from Arkansas
March 14, 2018
Answer
Yes, it does. This should actually be a pretty standard feature that should come with any submersible deep well pump.
Was this answer helpful?
Yes
6
No
0
+−
I have read that this pump utilizes a Franklin motor, is this true?
Ken K.
from Texas
May 10, 2017
Answer
Red Lion, while a division of Franklin Electric, does NOT use a Franklin motor on their deep well pumps. The Red Lion Deep Well Pumps include a VHC motor which is also a division of Franklin Electric. Little Giant Deep Well Pumps, on the other hand, are also a division of Franklin Electric and DO include the Franklin motor.
Was this answer helpful?
Yes
5
No
0
+−
In have 4 inch ID pvc well casing ..your product description says it will fit. What is the width of the pump?
Vince
from Indiana
June 16, 2016
Answer
The width of these pumps average 3.90" and WILL fit inside a 4" well casing.
If you have any other questions, please let me know.
If you have any other questions, please let me know.
Was this answer helpful?
Yes
2
No
0
+−
what guage wire should be run to this pump if set at two hundred feet
Billy
from West Virginia
June 22, 2014
Answer
Thank you for your interest in Water Pumps Direct. Information on the wiring gauge based on the distance for all Red Lion pumps can be found on page 3 of the OWNER'S MANUAL.
Was this answer helpful?
Yes
1
No
0
+−
Does this pump have a grounding wire beside the two hot wires?
Dan S
from New York
August 17, 2013
Answer
Thank you for your interest in Water Pumps Direct. The Red Lion model RL12G07-2W2V, like any other 2-Wire deep well pump, would have two line voltage wires and one ground wire so you would have three wires total.
Was this answer helpful?
Yes
3
No
0
