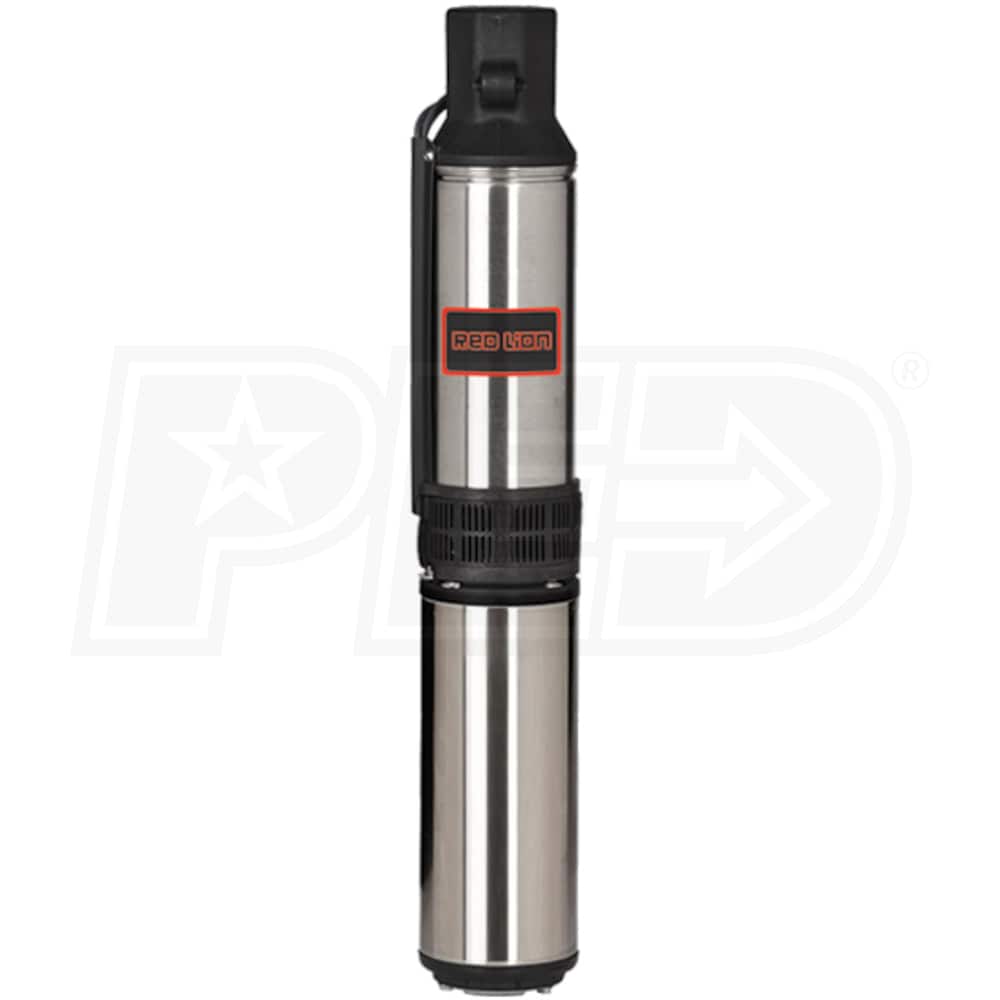

Red Lion 12 GPM 1/2 HP Deep Well Submersible Pump (2-Wire 230V)
Model: 14942402
4.7 out of 54.7 out of 54.7 out of 54.7 out of 54.7 out of 5
Number of Reviews(41)
Write a Review
$357.00
Holiday Shipping Schedule
Holiday Schedule -
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Only 1 In-Stock
Ships Friday, Nov 27th
Shipping to60601
Shipping Details
  • Expedited Shipping Available - Shipping rates calculated at Checkout. Learn More
*We currently CANNOT ship this product to Canada or any destination outside of the United States
In-Stock Free Shipping$357.00Buy Now
In-Stock Free Shipping$357.00Visit Site
Direct Dollars
Earn up to 10% back in Direct Dollars
Share
  • Product Description
  • 41
    Reviews
  • 9
    Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+

Inlet Size
N/A
Style
Deep Well
GPM
12
Gallons
Inlet Size
N/A
Style
Deep Well
GPM
12 Gallons
Features
Features
  • 4" Submersible Deep Well Pump (2-Wire 230V)
  • Ideal for use with 4" I.D. or larger wells
  • Powered By Industry Standard Motor
  • Proven superior quality & performance ensuring quiet operation
  • Hex Rubber Bearing w/ Extra-Large Surface
  • Provides shaft stability and multiple flow channels
  • Keeps small particles such as sand away from bearing surfaces
  • Built-In Check Valve
  • Prevents backflow and ensures system pressure
  • Built-In Suction Screen
  • Helps to prevent debris from clogging impellers
  • 1-1/4" NPT Thermoplastic Discharge Head
  • Provides full-flow performance without the risk of corrosion
Specifications
Motor
Voltage
240 Volt
Wire
2-Wire
Pump
Gallons Per Minute
12 Gallons
Outlet Diameter
1-1/4"
Housing Material
Stainless Steel
Impeller Material
Plastic
Maximum PSI
80
Total Head Lift
200 Feet
Submersible
Yes
Engine
Continuous Operation
Yes
Horsepower
0.5 hp
Overview
Weight
21 Pounds
Made in USA
No
Consumer Warranty
3 Years
UPC
010121141780
Additional Model Numbers
RL12G05-2W2V, 14942402

Inlet Size
N/A
Style
Deep Well
GPM
12
Gallons
Inlet Size
N/A
Style
Deep Well
GPM
12 Gallons
Features
Features
  • 4" Submersible Deep Well Pump (2-Wire 230V)
  • Ideal for use with 4" I.D. or larger wells
  • Powered By Industry Standard Motor
  • Proven superior quality & performance ensuring quiet operation
  • Hex Rubber Bearing w/ Extra-Large Surface
  • Provides shaft stability and multiple flow channels
  • Keeps small particles such as sand away from bearing surfaces
  • Built-In Check Valve
  • Prevents backflow and ensures system pressure
  • Built-In Suction Screen
  • Helps to prevent debris from clogging impellers
  • 1-1/4" NPT Thermoplastic Discharge Head
  • Provides full-flow performance without the risk of corrosion
Specifications
Motor
Voltage
240 Volt
Wire
2-Wire
Pump
Gallons Per Minute
12 Gallons
Outlet Diameter
1-1/4"
Housing Material
Stainless Steel
Impeller Material
Plastic
Maximum PSI
80
Total Head Lift
200 Feet
Submersible
Yes
Engine
Continuous Operation
Yes
Horsepower
0.5 hp
Overview
Weight
21 Pounds
Made in USA
No
Consumer Warranty
3 Years
UPC
010121141780
Additional Model Numbers
RL12G05-2W2V, 14942402
Product Specs
+
Specifications
Motor
Voltage
240 Volt
Wire
2-Wire
Pump
Gallons Per Minute
12 Gallons
Outlet Diameter
1-1/4"
Housing Material
Stainless Steel
Impeller Material
Plastic
Maximum PSI
80
Total Head Lift
200 Feet
Submersible
Yes
Engine
Continuous Operation
Yes
Horsepower
0.5 hp
Overview
Weight
21 Pounds
Made in USA
No
Consumer Warranty
3 Years
UPC
010121141780
Additional Model Numbers
RL12G05-2W2V, 14942402
Reviews
(41)
+
Red Lion 14942402 Reviews & Ratings
95% of Reviewers Recommend This Product
Product Q&A
(9)
+
Search Product Q&A's Answered by Jim, the Water Pump Expert
icon-social-fb1
+
Does this pump come with a submersible wire splice kit?
Robert H.
from Illinois
September 25, 2018
Answer
Yes, all Red Lion Deep Well Pumps do include the waterproof splice kit.
Was this answer helpful?
Yes
Thumbs Up Icon
0
No
Thumbs Down Icon
0
+
Does this pump have a rope tie-off to prevent losing it in the well?
David M.
from Arkansas
March 14, 2018
Answer
Yes, it does. This should actually be a pretty standard feature that should come with any submersible deep well pump.
Was this answer helpful?
Yes
Thumbs Up Icon
6
No
Thumbs Down Icon
0
+
I have read that this pump utilizes a Franklin motor, is this true?
Ken K.
from Texas
May 10, 2017
Answer
Red Lion, while a division of Franklin Electric, does NOT use a Franklin motor on their deep well pumps. The Red Lion Deep Well Pumps include a VHC motor which is also a division of Franklin Electric. Little Giant Deep Well Pumps, on the other hand, are also a division of Franklin Electric and DO include the Franklin motor.
Was this answer helpful?
Yes
Thumbs Up Icon
5
No
Thumbs Down Icon
0
+
In have 4 inch ID pvc well casing ..your product description says it will fit. What is the width of the pump?
Vince
from Indiana
June 16, 2016
Answer
The width of these pumps average 3.90" and WILL fit inside a 4" well casing.
If you have any other questions, please let me know.
Was this answer helpful?
Yes
Thumbs Up Icon
2
No
Thumbs Down Icon
0
+
I plan to replace a 30 yer old pump that is at 200 ft. and lower the new pump to 250 ft in a 400 ft deep well. Will I need to a check valve mid way up as well as at the well head?
Ken G
from California
July 27, 2015
Answer
Most submersible deep well pumps include a built-in check valve at the discharge port of the pump and It is recommended that additional spring loaded in-line check valves be installed in the drop pipe @ 200ft intervals only.
Was this answer helpful?
Yes
Thumbs Up Icon
3
No
Thumbs Down Icon
0
+
can I used this pump with 220 volt power instead of 230 volt? Is the 3rd wire a ground wire?
Moises
from California
September 28, 2014
Answer
Yes, the Red Lion RL12G05-2W2V can be wired to 220 or 230 volts. The 2-wire pumps do include a ground wire so it is technically a 3 wire pump. "3-wire" deep well pumps are technically a 4 wire pump, including the ground.
Was this answer helpful?
Yes
Thumbs Up Icon
0
No
Thumbs Down Icon
0
+
what guage wire should be run to this pump if set at two hundred feet
Billy
from West Virginia
June 22, 2014
Answer
Thank you for your interest in Water Pumps Direct. Information on the wiring gauge based on the distance for all Red Lion pumps can be found on page 3 of the OWNER'S MANUAL.
Was this answer helpful?
Yes
Thumbs Up Icon
1
No
Thumbs Down Icon
0
+
what parts are involved with submersible pumps that can fail and breakdown or if it doesn't work you just have to replace the entire pump?
Sal
from New York
January 22, 2014
Answer
When it comes to 2-wire deep well submersible pumps, the pump starting controls are located inside the pump. Any of these components can fail and cause the pump to become inoperable. By installing a 3-wire pump, those components would be located inside a CONTROL BOX, making repairs much easier when failure of these components are the cause of your pump not operating. Of course if the pump has failed due to burnt motor windings or some other cause, would would still need to pull and replace the pump, but you would have a better understanding of the pump status when the pump starting components are above ground as opposed to 50-500 feet or more, below ground.
Was this answer helpful?
Yes
Thumbs Up Icon
2
No
Thumbs Down Icon
0
+
Does this pump have a grounding wire beside the two hot wires?
Dan S
from New York
August 17, 2013
Answer
Thank you for your interest in Water Pumps Direct. The Red Lion model RL12G07-2W2V, like any other 2-Wire deep well pump, would have two line voltage wires and one ground wire so you would have three wires total.
Was this answer helpful?
Yes
Thumbs Up Icon
3
No
Thumbs Down Icon
0
