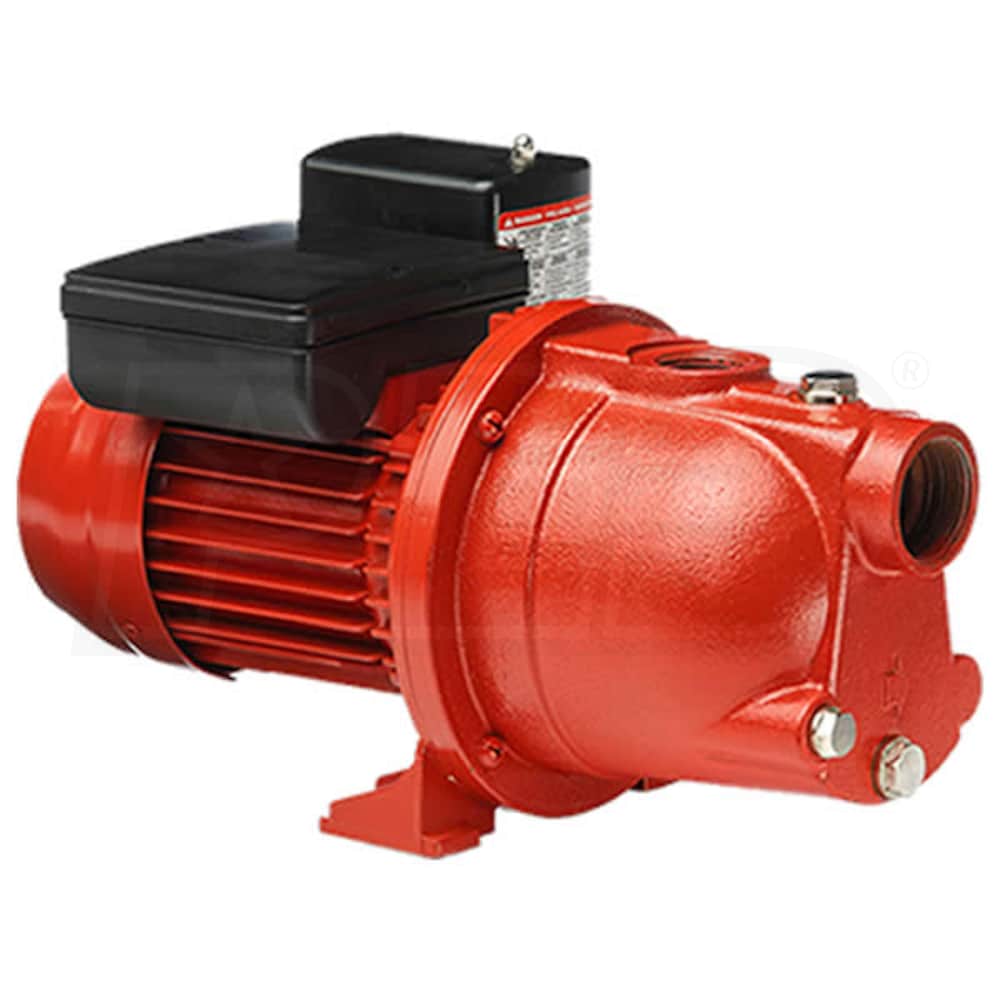

Red Lion RL-SWJ50 - 13.6 GPM 1/2 HP Cast Iron Shallow Well Jet Pump
Model: 97080502
+
Share This Product
-
Product Description
-
6Reviews
-
1Product Q&A
-
Recommended Accessories
-
How-To Articles
-
Manuals
Product Description
+−
Inlet Size
1-1/4"
Style

GPM
13.6
Gallons
Inlet Size
1-1/4"
Style
Shallow Well
GPM
13.6 Gallons
Features
Features
- 1/2 HP Shallow Well Jet Pump
- Ideal for use in pumping at depths of 25' or less
- Heavy-Duty Cast Iron Construction
- Built for years of reliable service
- Includes Factory Pre-Wired 30/50 Pressure Switch
- Produces up to 50 PSI with automatic shut-off
- 115/240 Volt Heavy-Duty Century Motor
- TEFC design with simple connection to existing power source
- Glass-Filled Thermoplastic Impeller and Diffuser
- For high performance and efficient water flow
- Additional Specs
- 1-1/4" FNPT - Intake
- 1" FNPT - Discharge
- 2-Year Warranty

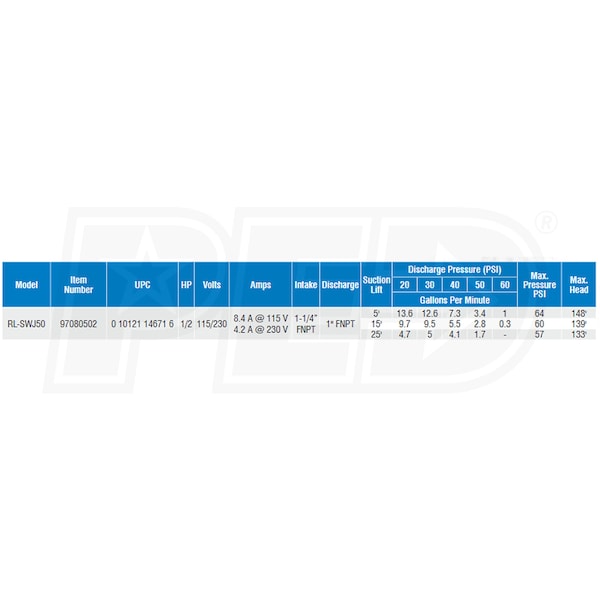

Specifications
Motor
Voltage
120/240 Volt
Pump
Gallons Per Minute
13.6 Gallons
Inlet Diameter
1-1/4"
Outlet Diameter
1"
Housing Material
Cast Iron
Impeller Material
Plastic
Suction Head
25 Feet
Maximum PSI
64
Submersible
No
Engine
Horsepower
0.5 hp
Overview
Weight
33 Pounds
Consumer Warranty
2 Years
UPC
010121146716
Additional Model Numbers
RL-SWJ50, 97080502
Inlet Size
1-1/4"
Style

GPM
13.6
Gallons
Inlet Size
1-1/4"
Style
Shallow Well
GPM
13.6 Gallons
Features
Features
- 1/2 HP Shallow Well Jet Pump
- Ideal for use in pumping at depths of 25' or less
- Heavy-Duty Cast Iron Construction
- Built for years of reliable service
- Includes Factory Pre-Wired 30/50 Pressure Switch
- Produces up to 50 PSI with automatic shut-off
- 115/240 Volt Heavy-Duty Century Motor
- TEFC design with simple connection to existing power source
- Glass-Filled Thermoplastic Impeller and Diffuser
- For high performance and efficient water flow
- Additional Specs
- 1-1/4" FNPT - Intake
- 1" FNPT - Discharge
- 2-Year Warranty
Specifications
Motor
Voltage
120/240 Volt
Pump
Gallons Per Minute
13.6 Gallons
Inlet Diameter
1-1/4"
Outlet Diameter
1"
Housing Material
Cast Iron
Impeller Material
Plastic
Suction Head
25 Feet
Maximum PSI
64
Submersible
No
Engine
Horsepower
0.5 hp
Overview
Weight
33 Pounds
Consumer Warranty
2 Years
UPC
010121146716
Additional Model Numbers
RL-SWJ50, 97080502
Product Specs
+−
Specifications
Motor
Voltage
120/240 Volt
Pump
Gallons Per Minute
13.6 Gallons
Inlet Diameter
1-1/4"
Outlet Diameter
1"
Housing Material
Cast Iron
Impeller Material
Plastic
Suction Head
25 Feet
Maximum PSI
64
Submersible
No
Engine
Horsepower
0.5 hp
Overview
Weight
33 Pounds
Consumer Warranty
2 Years
UPC
010121146716
Additional Model Numbers
RL-SWJ50, 97080502
Product Q&A
(1)
+−

Search Product Q&A's
Answered by Jim, the Water Pump Expert
+−
Hi Jim, I have a working well system. It has two pumps: one pumping the water up from the ground, and the second pumping water from the aerator tank through the softener and into the house. The second pump needs to be replaced. Can you tell me what type of pump I should be looking at? Thanks, Rich
Rich
from Florida
June 30, 2016
Answer
Rich,
Thank you for your interest in Water Pumps Direct. Before I can really make an educated suggestion on what pump you would need for your application, I would need to know the following specifications and requirements:
Tank size-
GPM & PSI Requirements-
Total pumping distance including any elevation variance-
Number of Sprinkler Heads (if zoned, per zone) And Their Individual GPM & PSI Requirements (if applicable)-
Total Distance from The Pump to The Furthest Sprinkler and Any Elevation Variance (if applicable)-
If you can supply this information, I'll be happy to assist you further.
Thank you for your interest in Water Pumps Direct. Before I can really make an educated suggestion on what pump you would need for your application, I would need to know the following specifications and requirements:
Tank size-
GPM & PSI Requirements-
Total pumping distance including any elevation variance-
Number of Sprinkler Heads (if zoned, per zone) And Their Individual GPM & PSI Requirements (if applicable)-
Total Distance from The Pump to The Furthest Sprinkler and Any Elevation Variance (if applicable)-
If you can supply this information, I'll be happy to assist you further.
