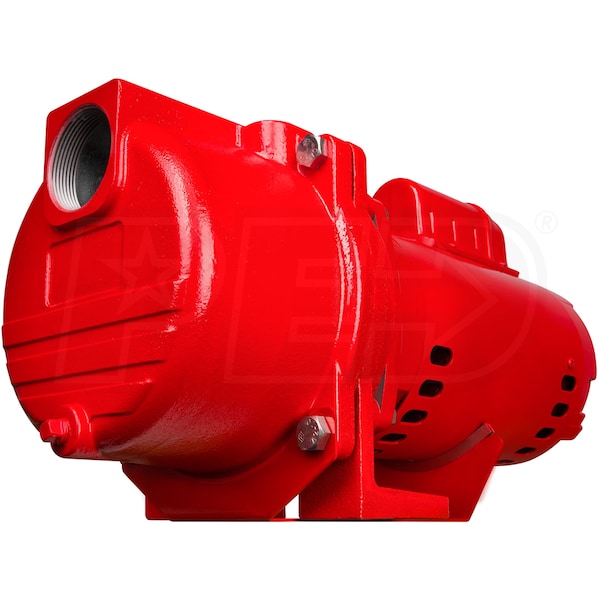

Red Lion 77 GPM 2 HP Self-Priming Cast Iron Sprinkler Pump w/ Brass Impeller

Model:

97102002

Write a Review
$549.00
Free Shipping
  Learn More About Free Freight
In-Stock
Ships in 1-2 Business Days
Shipping to60601

In-Stock Free Shipping$549.00Buy Now
In-Stock Free Shipping$549.00Visit Site
Red Lion 77 GPM 2 HP Self-Priming Cast Iron Sprinkler Pump w/ Brass Impeller
Red Lion 77 GPM 2 HP Self-Priming Cast Iron Sprinkler Pump w/ Brass Impeller
Model: 97102002
$549.00
Features
Specifications
Reviews
Accessories
How-To Articles
Manuals
Share

Features

Inlet Size

2"

Style

Sprinkler

GPM

77 Gallons

  • 2 HP Lawn Sprinkler Pump
  • For use in underground or above ground lawn sprinkling systems
  • Also for garden irrigation, boosting household water pressure
  • Can be used for recirculation of large volumes of water
  • Heavy-Duty Cast Iron Construction w/ Bronze Impeller
  • Designed for years of service and reliability
  • 230 Volt Heavy-Duty Motor
  • Allows for simple connection to existing power source
  • Self-Priming Design
  • After initial fill, no additional priming required
  • Engineered Pump Housing & Hydraulics
  • For high performance, efficiency and quiet operation
  • Additional Specs
  • 2" NPT Intake / 1-1/2" NPT Discharge
  • 10.9 A @ 230 V
  • 2-Year Warranty

Specifications

97102002
specs product image PID-83291
Motor
Voltage
230 Volt
Running Amps
10.9
Pump
Gallons Per Minute
77 Gallons
Inlet Diameter
2"
Outlet Diameter
1-1/2"
Self Priming
Yes
Pump Housing Drain
Yes
Housing Material
Cast Iron
Impeller Material
Brass
Suction Head
25 Feet
Maximum PSI
47
Submersible
No
Engine
Horsepower
2 hp
Overview
Weight
66 Pounds
Consumer Warranty
2 Years
Product Length
19.9 Inches
Product Width
9.25 Inches
Product Height
12 Inches
UPC
010121001435
Additional Model Numbers

RL-SPRK200-BR, 97102002
