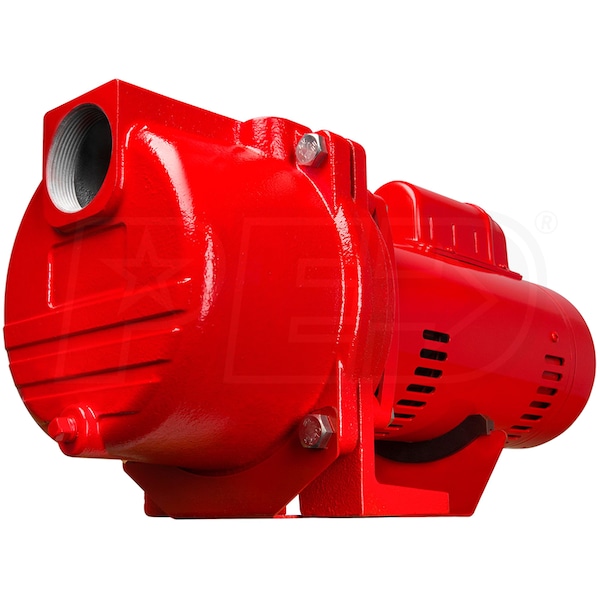

Red Lion 71 GPM 1-1/2 HP Self-Priming Cast Iron Sprinkler Pump w/ Brass Impeller

Model:

97101502

Write a Review
$482.00
Free Shipping
  Learn More About Free Freight
Factory-Direct
Ships in 2-5 Business Days

Free Shipping$482.00Buy Now
Free Shipping$482.00Visit Site
Red Lion 71 GPM 1-1/2 HP Self-Priming Cast Iron Sprinkler Pump w/ Brass Impeller
Red Lion 71 GPM 1-1/2 HP Self-Priming Cast Iron Sprinkler Pump w/ Brass Impeller
Model: 97101502
$482.00
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

Power Equipment Direct expert image
Expert Recommended Accessories Selected by Jim, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Inlet Size

2"

Style

Sprinkler

GPM

71 Gallons

  • 1-1/2 HP Lawn Sprinkler Pump
  • For use in underground or above ground lawn sprinkling systems
  • Also for garden irrigation, boosting household water pressure
  • Can be used for recirculation of large volumes of water
  • Heavy-Duty Cast Iron Construction w/ Brass Impeller
  • Designed for years of service and reliability
  • 115/230 Volt Heavy-Duty Motor
  • Voltage selector for simple connection to existing power source
  • Self-Priming Design
  • After initial fill, no additional priming required
  • Engineered Pump Housing & Hydraulics
  • For high performance, efficiency and quiet operation
  • Additional Specs
  • 2" NPT Intake / 1-1/2" NPT Discharge
  • 18.6 A @ 115 V
  • 9.3 A @ 230 V
  • 2-Year Warranty

Specifications

97101502
specs product image PID-83290
Motor
Voltage
120/240 Volt
Running Amps
9.3
Pump
Gallons Per Minute
71 Gallons
Inlet Diameter
2"
Outlet Diameter
1-1/2"
Self Priming
Yes
Housing Material
Cast Iron
Impeller Material
Brass
Suction Head
25 Feet
Maximum PSI
41
Submersible
No
Engine
Horsepower
1.5 hp
Overview
Weight
66 Pounds
Made in USA
No
Consumer Warranty
2 Years
Product Length
19.9 Inches
Product Width
9.26 Inches
Product Height
10.6 Inches
UPC
010121001428
Additional Model Numbers

RL-SPRK150-BR, 97101502
