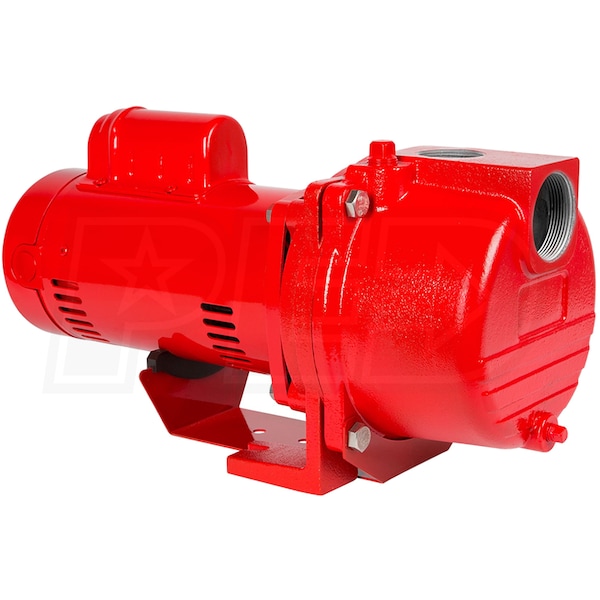

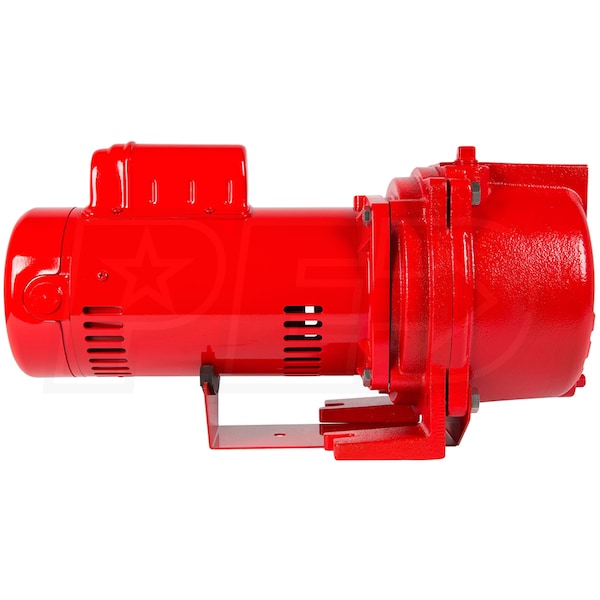

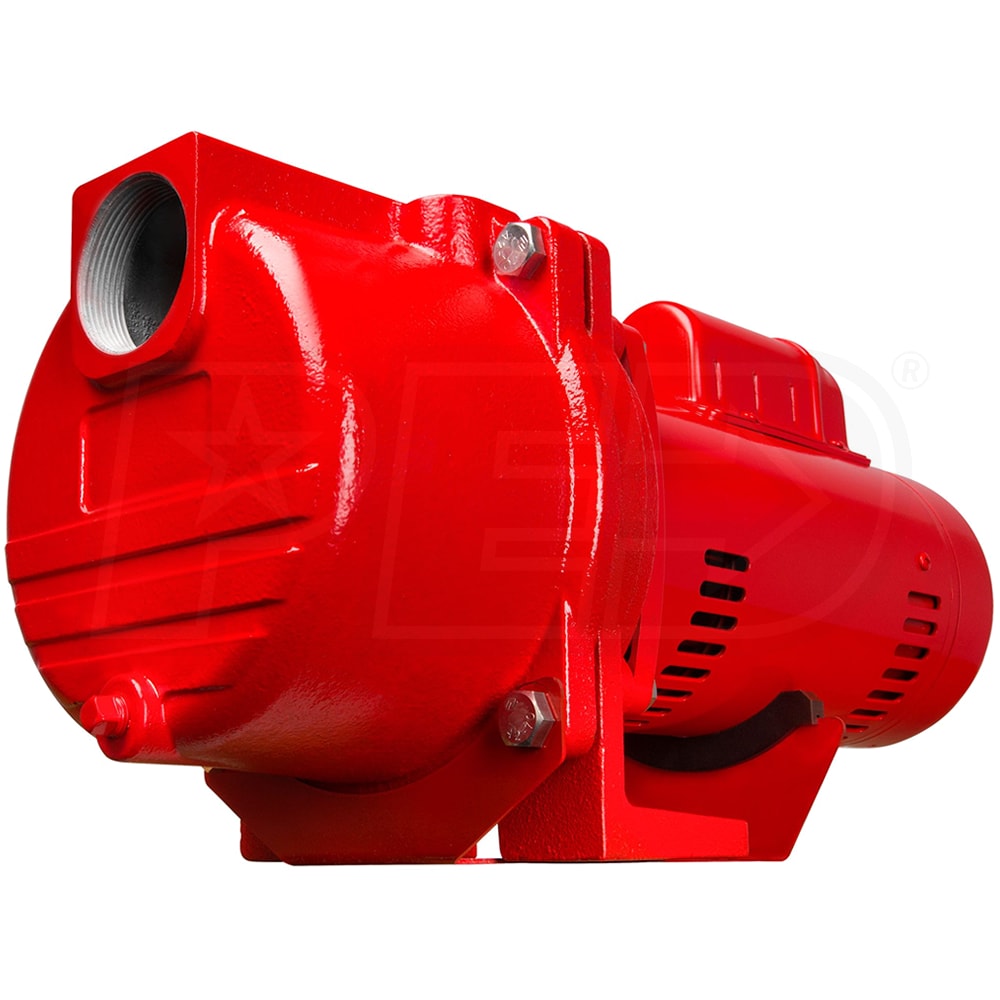

Red Lion 63 GPM 1 HP Self-Priming Cast Iron Sprinkler Pump
Model: 97101001
+
Share This Product
-
Product Description
-
13Reviews
-
1Product Q&A
-
Recommended Accessories
-
How-To Articles
-
Manuals
Product Description
+−
Inlet Size
2"
Style

GPM
63
Gallons
Inlet Size
2"
Style
Sprinkler
GPM
63 Gallons
Features
Features
- 1 HP Lawn Sprinkler Pump
- For use in underground or above ground lawn sprinkling systems
- Also for garden irrigation, boosting household water pressure
- Can be used for recirculation of large volumes of water
- Heavy-Duty Cast Iron Construction w/ Thermoplastic Impeller
- Designed for years of service and reliability
- 115/230 Volt Heavy-Duty Motor
- Voltage selector for simple connection to existing power source
- Self-Priming Design
- After initial fill, no additional priming required
- Engineered Pump Housing & Hydraulics
- For high performance, efficiency and quiet operation
- Additional Specs
- 2" NPT Intake
- 1-1/2" NPT Discharge
Specifications
Motor
Voltage
120/240 Volt
Running Amps
7
Pump
Gallons Per Minute
63 Gallons
Inlet Diameter
2"
Outlet Diameter
1-1/2"
Self Priming
Yes
Housing Material
Cast Iron
Impeller Material
Plastic
Suction Head
25 Feet
Maximum PSI
45
Submersible
No
Engine
Horsepower
1 hp
Overview
Weight
55 Pounds
Made in USA
No
Consumer Warranty
2 Years
Product Length
19.9 Inches
Product Width
9.26 Inches
Product Height
10.6 Inches
UPC
010121001398
Additional Model Numbers
RL-SPRK100, 97101001
Inlet Size
2"
Style

GPM
63
Gallons
Inlet Size
2"
Style
Sprinkler
GPM
63 Gallons
Features
Features
- 1 HP Lawn Sprinkler Pump
- For use in underground or above ground lawn sprinkling systems
- Also for garden irrigation, boosting household water pressure
- Can be used for recirculation of large volumes of water
- Heavy-Duty Cast Iron Construction w/ Thermoplastic Impeller
- Designed for years of service and reliability
- 115/230 Volt Heavy-Duty Motor
- Voltage selector for simple connection to existing power source
- Self-Priming Design
- After initial fill, no additional priming required
- Engineered Pump Housing & Hydraulics
- For high performance, efficiency and quiet operation
- Additional Specs
- 2" NPT Intake
- 1-1/2" NPT Discharge
Specifications
Motor
Voltage
120/240 Volt
Running Amps
7
Pump
Gallons Per Minute
63 Gallons
Inlet Diameter
2"
Outlet Diameter
1-1/2"
Self Priming
Yes
Housing Material
Cast Iron
Impeller Material
Plastic
Suction Head
25 Feet
Maximum PSI
45
Submersible
No
Engine
Horsepower
1 hp
Overview
Weight
55 Pounds
Made in USA
No
Consumer Warranty
2 Years
Product Length
19.9 Inches
Product Width
9.26 Inches
Product Height
10.6 Inches
UPC
010121001398
Additional Model Numbers
RL-SPRK100, 97101001
Product Specs
+−
Specifications
Motor
Voltage
120/240 Volt
Running Amps
7
Pump
Gallons Per Minute
63 Gallons
Inlet Diameter
2"
Outlet Diameter
1-1/2"
Self Priming
Yes
Housing Material
Cast Iron
Impeller Material
Plastic
Suction Head
25 Feet
Maximum PSI
45
Submersible
No
Engine
Horsepower
1 hp
Overview
Weight
55 Pounds
Made in USA
No
Consumer Warranty
2 Years
Product Length
19.9 Inches
Product Width
9.26 Inches
Product Height
10.6 Inches
UPC
010121001398
Additional Model Numbers
RL-SPRK100, 97101001
Product Q&A
(1)
+−

Search Product Q&A's
Answered by Jim, the Water Pump Expert
+−
Will the pump come with all the electrical fixtures so I can plug it in and go? If not, what electrical will I need to buy? My generator has 120/240 outlets. I would like to use the 240 if possible.
Poly
from Texas
November 21, 2018
Answer
These pumps require you to either hard-wire or provide your own power cord with the appropriate plug. All wiring instructions are included in the PUMP MANUAL.
