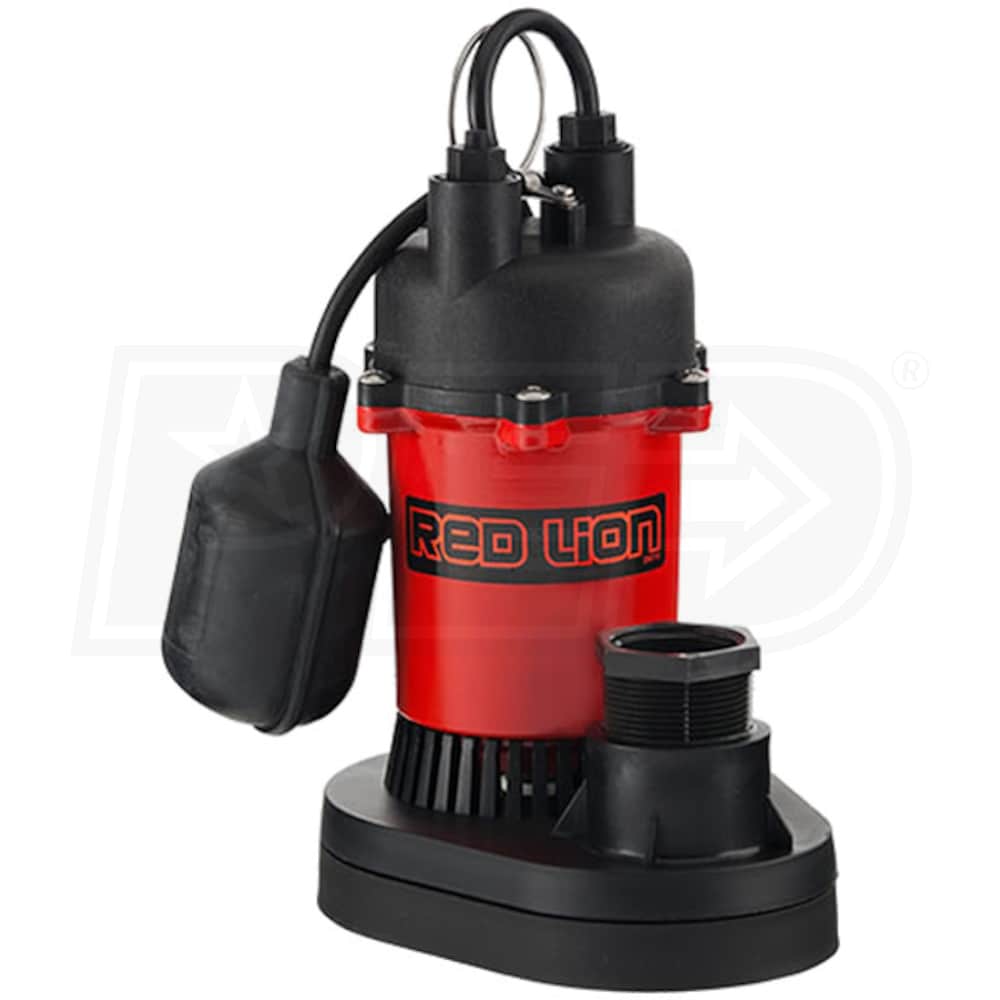

Red Lion RL-SP25T - 1/4 HP Thermoplastic Submersible Sump Pump w/ Tether Float Switch
Model: 14942739
+
Share This Product
-
Product Description
-
1Reviews
-
1Product Q&A
-
Recommended Accessories
-
How-To Articles
-
Manuals
Product Description
+−
Style

GPH
2900
Gallons
Switch Type

Style
Primary
GPH
2900 Gallons
Switch Type
Piggy-Back Tether
Features
Features
- Automatic Submersible Sump Pump
- Ideal for light water removal
- 1/4 HP PSC Motor
- Provides plenty of power to get the water moving
- Reinforced, Engineered Thermoplastic Construction
- Corrosion and rust-resistant
- Double Seal System
- Provides added protection to extend motor life
- Closed Vane Impeller Design
- Allows for superior water flow
- Piggyback Tethered Float Switch
- Reliable automatic operation for basins 14" diameter or greater
- Switch can be bypassed to run pump manually
- 1-1/2'' FNPT Discharge w/ 1-1/4'' FNPT Adapter
- Easily connects to your existing discharge line
- 8' Power Cord
- Ideal for residential sump applications
- 2-Year Limited Warranty
- *Note - Not Suitable For Pond Use
Specifications
Base
Base Material
Thermoplastic
Min Sump Basin Size
14 Inch
Motor
Voltage
120 Volt
Running Amps
6
Thermal Protection
Yes
Power Cord Length
8 Feet
Oil Free Motor
No
Starting Amps
6
Pump
Housing Material
Thermoplastic
Impeller Material
Plastic
Handles Solids
No
Float Type
Piggy-Back Tether Switch

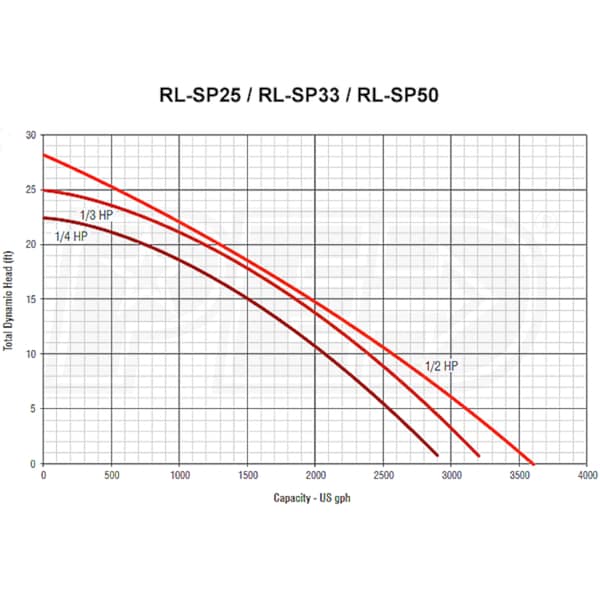

GPH @ 0 feet
2900
GPH @ 5 feet
2640
GPH @ 10 feet
2100
GPH @ 15 feet
1560
GPH @ 20 feet
540
Discharge Port Size
1-1/4 Inch and 1-1/2 Inch
Built-in check Valve
No
Float On
14.5
Float Off
5.5
Manual Override
Yes
Submersible
Yes
Engine
Horsepower
.25 hp
Overview
Weight
9 Pounds
Made in USA
No
Consumer Warranty
2 Years
UPC
010121141629
Additional Model Numbers
RL-SP25T, 14942739
Style

GPH
2900
Gallons
Switch Type

Style
Primary
GPH
2900 Gallons
Switch Type
Piggy-Back Tether
Features
Features
- Automatic Submersible Sump Pump
- Ideal for light water removal
- 1/4 HP PSC Motor
- Provides plenty of power to get the water moving
- Reinforced, Engineered Thermoplastic Construction
- Corrosion and rust-resistant
- Double Seal System
- Provides added protection to extend motor life
- Closed Vane Impeller Design
- Allows for superior water flow
- Piggyback Tethered Float Switch
- Reliable automatic operation for basins 14" diameter or greater
- Switch can be bypassed to run pump manually
- 1-1/2'' FNPT Discharge w/ 1-1/4'' FNPT Adapter
- Easily connects to your existing discharge line
- 8' Power Cord
- Ideal for residential sump applications
- 2-Year Limited Warranty
- *Note - Not Suitable For Pond Use
Specifications
Base
Base Material
Thermoplastic
Min Sump Basin Size
14 Inch
Motor
Voltage
120 Volt
Running Amps
6
Thermal Protection
Yes
Power Cord Length
8 Feet
Oil Free Motor
No
Starting Amps
6
Pump
Housing Material
Thermoplastic
Impeller Material
Plastic
Handles Solids
No
Float Type
Piggy-Back Tether Switch
GPH @ 0 feet
2900
GPH @ 5 feet
2640
GPH @ 10 feet
2100
GPH @ 15 feet
1560
GPH @ 20 feet
540
Discharge Port Size
1-1/4 Inch and 1-1/2 Inch
Built-in check Valve
No
Float On
14.5
Float Off
5.5
Manual Override
Yes
Submersible
Yes
Engine
Horsepower
.25 hp
Overview
Weight
9 Pounds
Made in USA
No
Consumer Warranty
2 Years
UPC
010121141629
Additional Model Numbers
RL-SP25T, 14942739
Product Specs
+−
Specifications
Base
Base Material
Thermoplastic
Min Sump Basin Size
14 Inch
Motor
Voltage
120 Volt
Running Amps
6
Thermal Protection
Yes
Power Cord Length
8 Feet
Oil Free Motor
No
Starting Amps
6
Pump
Housing Material
Thermoplastic
Impeller Material
Plastic
Handles Solids
No
Float Type
Piggy-Back Tether Switch
GPH @ 0 feet
2900
GPH @ 5 feet
2640
GPH @ 10 feet
2100
GPH @ 15 feet
1560
GPH @ 20 feet
540
Discharge Port Size
1-1/4 Inch and 1-1/2 Inch
Built-in check Valve
No
Float On
14.5
Float Off
5.5
Manual Override
Yes
Submersible
Yes
Engine
Horsepower
.25 hp
Overview
Weight
9 Pounds
Made in USA
No
Consumer Warranty
2 Years
UPC
010121141629
Additional Model Numbers
RL-SP25T, 14942739
Product Q&A
(1)
+−

Search Product Q&A's
Answered by Jim, the Sump Pump Expert
+−
can a theter switch be replaced with afloat switch and what cost differance is there
Donna
from Wisconsin
April 25, 2012
Answer
As long as the original switch utilizes a "piggyback" style plug and the pump and switch each have their own power cord, you can replace that tether switch with any other "piggyback" style Float Switch. Please note however that most "piggyback" style floats will only work for pumps that are rated at 1/2HP and 15 amps or less.
