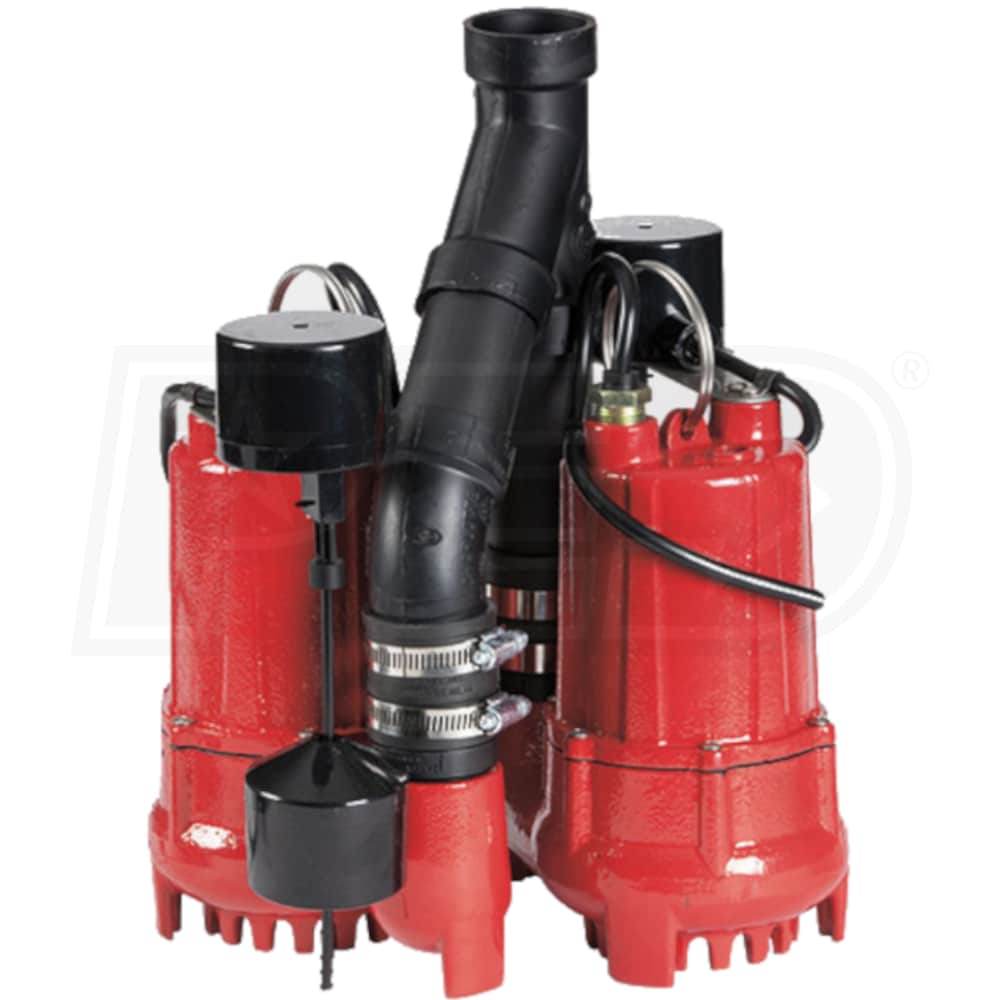

Red Lion RL-SC33DUP - 1/3 HP Cast Iron Duplex Sump Pump System w/ Vertical Float Switches
Model: 14942771
5.0 out of 55.0 out of 55.0 out of 55.0 out of 55.0 out of 5
Number of Reviews(7)
Write a Review
$399.99
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
In-Stock
Ships in 1-3 Business Days
Shipping to60601
Shipping Details
  • Expedited Shipping Available - Shipping rates calculated at Checkout. Learn More
*We currently CANNOT ship this product to Canada or any destination outside of the United States

In-Stock Free Shipping$399.99Buy Now
In-Stock Free Shipping$399.99Visit Site
Share
  • Product Description
  • 7
    Reviews
  • 1
    Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+
Style
Primary Sumps Pumps
GPH
6000
Gallons
Switch Type
Vertical Float Switch
Style
Primary
GPH
6000 Gallons
Switch Type
Vertical
Features
Features

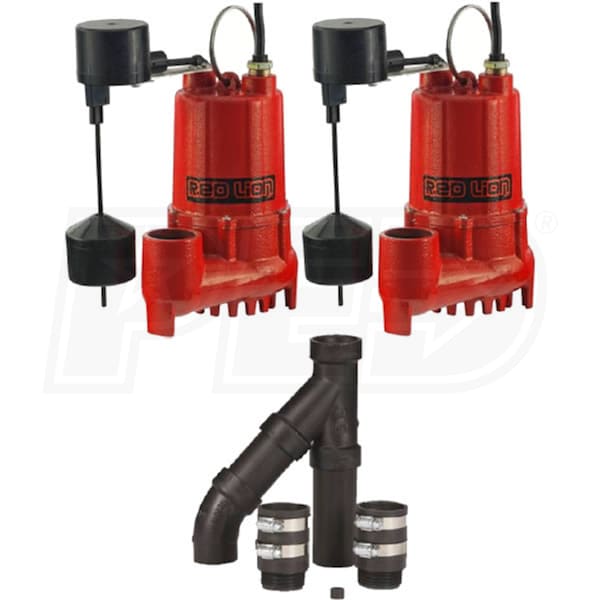

  • Red Lion Duplex Sump Pump System w/ Vertical Float Switches
  • Provides peace of mind by offering double the protection
  • Added protection against pump failure & high water event
  • How Duplex Systems Work - 2 Pumps Are Better Than 1
  • If your 1st pump fails, 2nd pump takes over automatically
  • If your 1st pump can't keep up, 2nd pump runs at the same time
  • 1/3 HP PSC Motor
  • An energy-efficient motor for maximum performance
  • Specially Treated & Rugged Cast Iron Housings
  • Designed for rapid heat dissipation and extended life
  • Pre-Adusted Vertical Float Switches
  • Designed to provide automatic operation
  • Oil-Filled Motor Housing
  • For lifetime bearing lubrication & maximum heat dissipation
  • Clog-Resistant Design
  • Capable of passing 1/2" diameter solids
  • Pre-Assembled Discharge PVC Piping & Check Valves (1-1/2")
  • Provides quick & easy installation, Ready to drop in pit
  • 3-Year Warranty
  • Performance listed is for dual pump operation, not single pump
Specifications
Base
Min Sump Basin Size
18 Inch
Motor
Voltage
120 Volt
Thermal Protection
Yes
Power Cord Length
10 Feet
Oil Free Motor
No
Pump
Housing Material
Cast Iron
Handles Solids
No
Float Type
Vertical Float
GPH @ 0 feet
6000
GPH @ 5 feet
5400
GPH @ 10 feet
4425
GPH @ 15 feet
3345
GPH @ 20 feet
1725
Discharge Port Size
1-1/2 Inch
Built-in check Valve
Yes
Float On
7.25 Inches
Float Off
2.75 Inches
Manual Override
Yes
Engine
Horsepower
.33 hp
Overview
Weight
30 Pounds
Consumer Warranty
3 Years
UPC
010121146068
Additional Model Numbers
RL-SC33DUP, 14942771
Style
Primary Sumps Pumps
GPH
6000
Gallons
Switch Type
Vertical Float Switch
Style
Primary
GPH
6000 Gallons
Switch Type
Vertical
Features
Features
  • Red Lion Duplex Sump Pump System w/ Vertical Float Switches
  • Provides peace of mind by offering double the protection
  • Added protection against pump failure & high water event
  • How Duplex Systems Work - 2 Pumps Are Better Than 1
  • If your 1st pump fails, 2nd pump takes over automatically
  • If your 1st pump can't keep up, 2nd pump runs at the same time
  • 1/3 HP PSC Motor
  • An energy-efficient motor for maximum performance
  • Specially Treated & Rugged Cast Iron Housings
  • Designed for rapid heat dissipation and extended life
  • Pre-Adusted Vertical Float Switches
  • Designed to provide automatic operation
  • Oil-Filled Motor Housing
  • For lifetime bearing lubrication & maximum heat dissipation
  • Clog-Resistant Design
  • Capable of passing 1/2" diameter solids
  • Pre-Assembled Discharge PVC Piping & Check Valves (1-1/2")
  • Provides quick & easy installation, Ready to drop in pit
  • 3-Year Warranty
  • Performance listed is for dual pump operation, not single pump
Specifications
Base
Min Sump Basin Size
18 Inch
Motor
Voltage
120 Volt
Thermal Protection
Yes
Power Cord Length
10 Feet
Oil Free Motor
No
Pump
Housing Material
Cast Iron
Handles Solids
No
Float Type
Vertical Float
GPH @ 0 feet
6000
GPH @ 5 feet
5400
GPH @ 10 feet
4425
GPH @ 15 feet
3345
GPH @ 20 feet
1725
Discharge Port Size
1-1/2 Inch
Built-in check Valve
Yes
Float On
7.25 Inches
Float Off
2.75 Inches
Manual Override
Yes
Engine
Horsepower
.33 hp
Overview
Weight
30 Pounds
Consumer Warranty
3 Years
UPC
010121146068
Additional Model Numbers
RL-SC33DUP, 14942771
Product Specs
+
Specifications
Base
Min Sump Basin Size
18 Inch
Motor
Voltage
120 Volt
Thermal Protection
Yes
Power Cord Length
10 Feet
Oil Free Motor
No
Pump
Housing Material
Cast Iron
Handles Solids
No
Float Type
Vertical Float
GPH @ 0 feet
6000
GPH @ 5 feet
5400
GPH @ 10 feet
4425
GPH @ 15 feet
3345
GPH @ 20 feet
1725
Discharge Port Size
1-1/2 Inch
Built-in check Valve
Yes
Float On
7.25 Inches
Float Off
2.75 Inches
Manual Override
Yes
Engine
Horsepower
.33 hp
Overview
Weight
30 Pounds
Consumer Warranty
3 Years
UPC
010121146068
Additional Model Numbers
RL-SC33DUP, 14942771
Reviews
(7)
+
Red Lion 14942771 Reviews & Ratings
Product Q&A
(1)
+
Search Product Q&A's Answered by Jim, the Sump Pump Expert
icon-social-fb1
+
Are two check valves installed on the 1-1/2" manifold or do I have order them seperatly?
Mike C.
from New York
April 20, 2017
Answer
The check valve are included and installed on this system Mike.
