Features
Inlet Size
1-1/4 Inch
Style
Shallow Well
GPM
16.7 Gallons
- 3/4 HP Shallow Well Jet Pump
- Ideal for use in pumping at depths of 25' or less
- Heavy-Duty Cast Iron Construction
- Built for years of reliable service
- Includes Factory Pre-Wired 30/50 Pressure Switch
- Produces up to 50 PSI with automatic shut-off
- 115/230 Volt Heavy-Duty Century Motor
- Voltage selector for simple connection to existing power source
- Glass-Filled Thermoplastic Impeller and Diffuser
- For high performance and efficient water flow
- Additional Specs
- 1-1/4" FNPT - Intake
- 1" FNPT - Discharge
- 3-Year Limited Warranty
Specifications
602207
General Information
Product Category
Water Pump
Motor
Voltage
120/240 Volt
Running Amps
7.2
Pump
Gallons Per Minute
16.7 Gallons
Inlet Diameter
1-1/4 Inch
Outlet Diameter
1 Inch
Housing Material
Cast Iron
Impeller Material
Plastic
Suction Head
25 Feet
Maximum PSI
50
Submersible
No
Engine
Horsepower
0.75 hp
Overview
Product Category
Water Pump
Weight
39 Pounds
Made in USA
No
Consumer Warranty
3 Years
Product Length
10.5 Inches
Product Width
20.5 Inches
Product Height
10.25 Inches
UPC
010121147041
Additional Model Numbers
RJS-75-PREM, 602207
Reviews
(16)
Red Lion 602207 Reviews & Ratings
Product Q&A
(2)
Product Questions
Answered by Jim, the Water Pump Expert
What is the best way to prime this pump before using? Is there a built in check valve on the inlet side?
Chris M.
from Michigan
June 08, 2017
What size tank do I need with this pump?
Byron T.
from Georgia
May 11, 2017
How-To Articles
Priming Your Well Pump
Well pumps have been around for centuries, but the days of using a bucket and r...
How to Pick the Perfect Specialty Water Pump
All water pumps are built for the same purpose: moving water. But there are s...
Power Equipment How-To Library
Articles, Tips and Buying Guides from Our Experts
Manuals
Ask A Question!
*Required Fields
+
Thank You For Submitting Your Question
Your submission has been sent successfully. Please give our experts up to two business days to respond.
Media Gallery

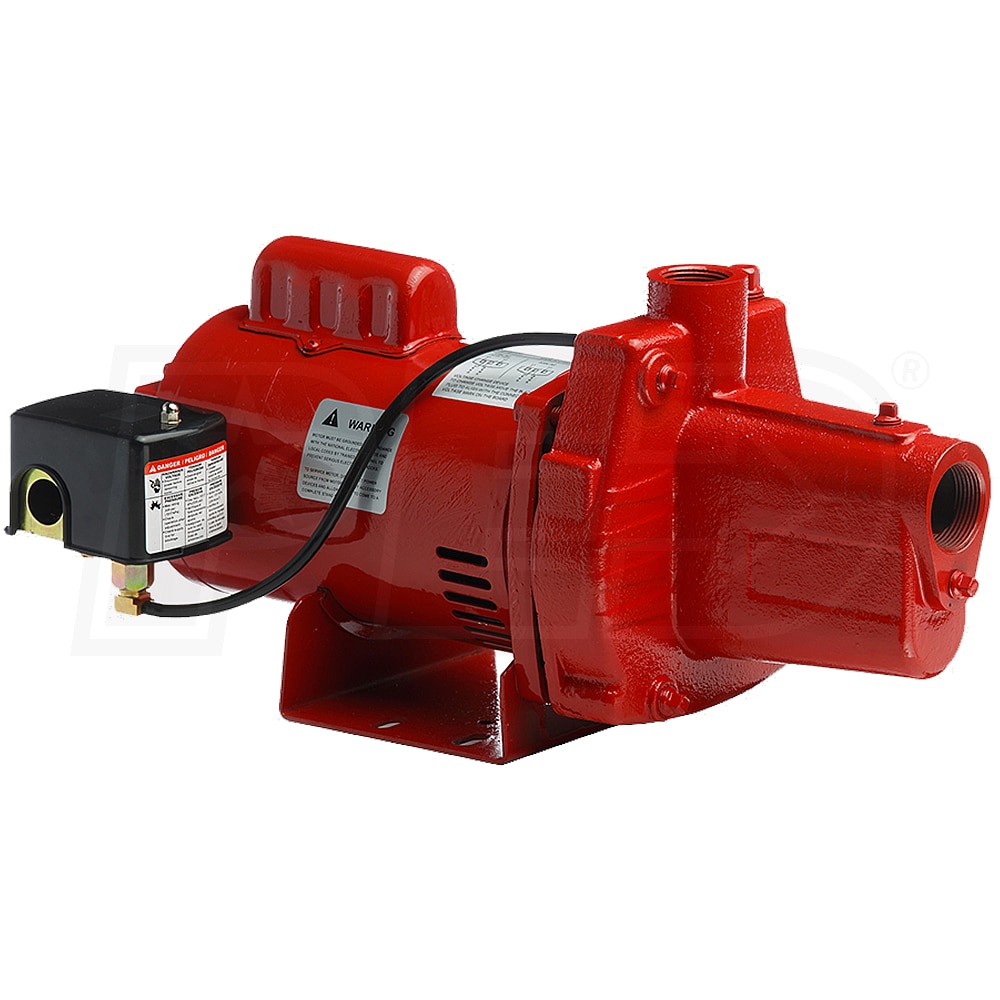

Red Lion RJS-75-PREM - 16 GPM 3/4 HP Cast Iron Shallow Well Jet Pump
