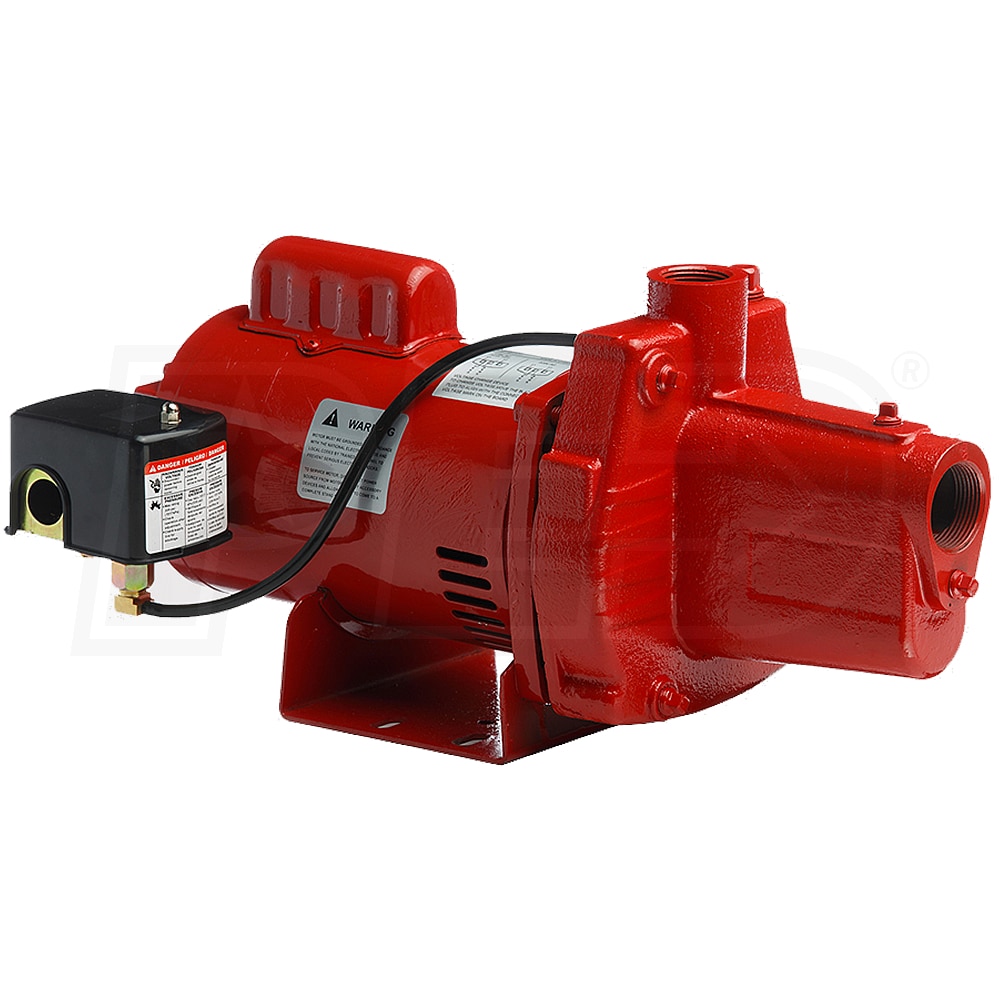

Red Lion 12 GPM 1/2 HP Cast Iron Shallow Well Jet Pump

Model:

602206

Write a Review
$253.00
Free Shipping
  Learn More About Free Freight
In-Stock
Ships in 1-2 Business Days
Shipping to60601

In-Stock Free Shipping$253.00Buy Now
In-Stock Free Shipping$253.00Visit Site
Red Lion 12 GPM 1/2 HP Cast Iron Shallow Well Jet Pump
Red Lion 12 GPM 1/2 HP Cast Iron Shallow Well Jet Pump
Model: 602206
$253.00
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

Power Equipment Direct expert image
Expert Recommended Accessories Selected by Jim, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Inlet Size

1-1/4"

Style

Shallow Well

GPM

12.6 Gallons

  • 1/2 HP Shallow Well Jet Pump
  • Ideal for use in pumping at depths of 25' or less
  • Heavy-Duty Cast Iron Construction
  • Built for years of reliable service
  • Includes Factory Pre-Wired 30/50 Pressure Switch
  • Produces up to 50 PSI with automatic shut-off
  • 115/230 Volt Heavy-Duty Century Motor
  • Voltage selector for simple connection to existing power source
  • Glass-Filled Thermoplastic Impeller and Diffuser
  • For high performance and efficient water flow
  • Additional Specs
  • 1-1/4" FNPT - Intake
  • 1" FNPT - Discharge
  • 3-Year Limited Warranty

Specifications

602206
specs product image PID-57943
Motor
Voltage
120/240 Volt
Running Amps
5.9
Pump
Gallons Per Minute
12.6 Gallons
Inlet Diameter
1-1/4"
Outlet Diameter
1"
Self Priming
No
Housing Material
Cast Iron
Impeller Material
Plastic
Suction Head
25 Feet
Maximum PSI
65
Total Head Lift
150 Feet
Submersible
No
Engine
Oil-Cooled
No
Horsepower
0.5 hp
Overview
Weight
36 Pounds
Made in USA
No
Consumer Warranty
3 Years
Product Length
20.5 Inches
Product Width
10.5 Inches
Product Height
10.25 Inches
UPC
010121147027
Additional Model Numbers

RJS-50-PREM, 602206

Reviews

(8)
Red Lion 602206 Reviews & Ratings

Product Q&A

(3)
Product Questions Answered by Jim, the Water Pump Expert
What is the best way to prime this pump before using? Is there a built in check valve on the inlet side?
Chris M.
from Michigan
June 08, 2017
What size tank do I need with this pump?
Byron T.
from Georgia
May 11, 2017
I am interested in this model. My issue is, when i disconnect the old well pump, will there be a pressure/ water issue. What does disconnecting the old pump involve?
Matt K
from Pennsylvania
November 12, 2015
