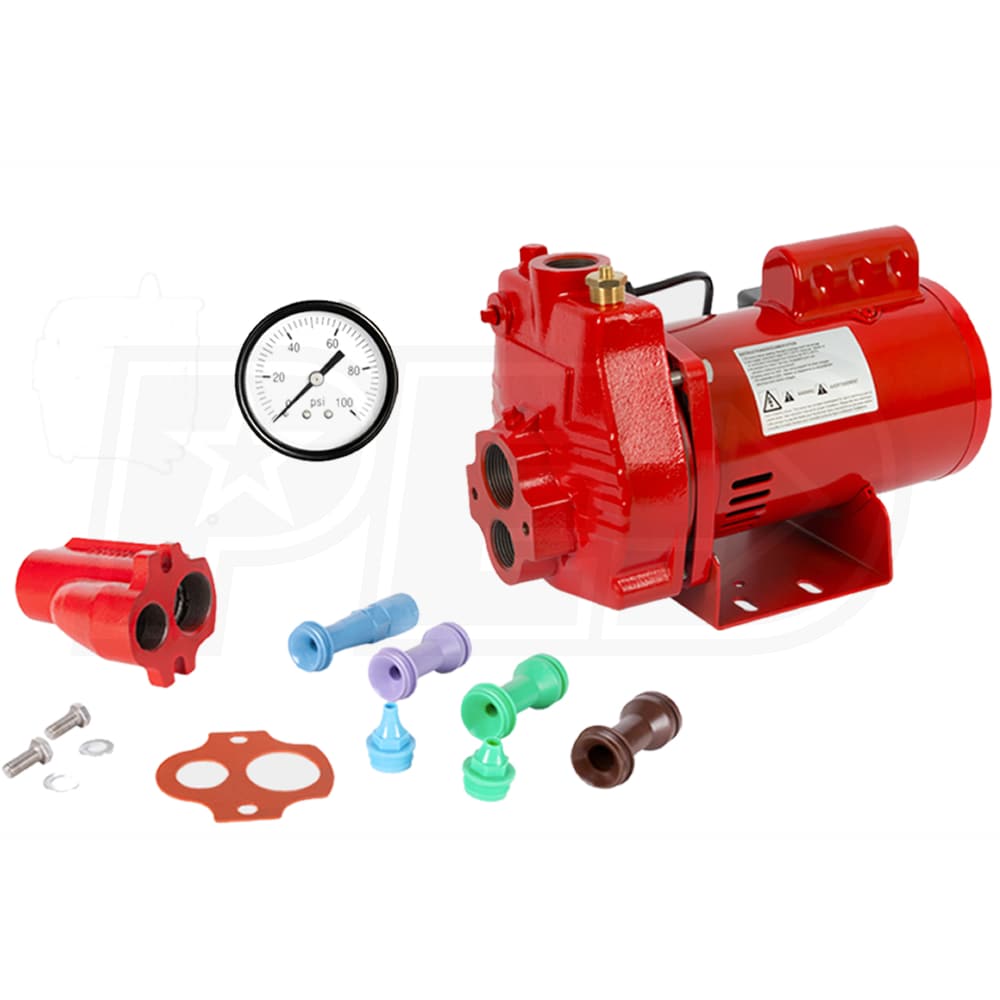

Red Lion 16.2 GPM 3/4 HP Premium Cast Iron Convertible Jet Pump w/ Injector Kit
Model: 602137
+
Share This Product
-
Product Description
-
8Reviews
-
Product Q&A
-
Recommended Accessories
-
How-To Articles
-
Manuals
Product Description
+−
Inlet Size
1-1/4"
Style

GPM
16.2
Gallons
Inlet Size
1-1/4"
Style
Convertible Jet
GPM
16.2 Gallons
Features
Features
- 3/4 HP Convertible Jet Pump
- Ideal for use in shallow wells (less than 25’)
- Ideal for use in deep wells (25’ to 90’)
- Heavy-Duty Cast Iron Construction
- Built for years of service and reliability
- 115/230 Volt Heavy-Duty 3/4 HP Motor
- Voltage selector for simple connection to existing power source
- Includes Factory Pre-Set 30/50 Pressure Switch
- Produces up to 50 PSI with automatic shut-off
- Glass-Filled Thermoplastic Impeller & Diffuser
- For high performance and efficient water flow
- Also Includes
- Pressure Gauge & Injector Kit
- Additional Specs
- 1-1/4" FNPT - Intake
- 1" FNPT - Discharge
- 3-Year Limited Warranty
Specifications
Motor
Voltage
120/240 Volt
Pump
Gallons Per Minute
16.2 Gallons
Inlet Diameter
1-1/4"
Outlet Diameter
1"
Housing Material
Cast Iron
Impeller Material
Plastic
Suction Head
90 Feet
Maximum PSI
73
Submersible
No
Engine
Horsepower
0.75 hp
Overview
Weight
37 Pounds
Consumer Warranty
3 Years
UPC
010121151116
Additional Model Numbers
RJC-75-PREM, 602137
Inlet Size
1-1/4"
Style

GPM
16.2
Gallons
Inlet Size
1-1/4"
Style
Convertible Jet
GPM
16.2 Gallons
Features
Features
- 3/4 HP Convertible Jet Pump
- Ideal for use in shallow wells (less than 25’)
- Ideal for use in deep wells (25’ to 90’)
- Heavy-Duty Cast Iron Construction
- Built for years of service and reliability
- 115/230 Volt Heavy-Duty 3/4 HP Motor
- Voltage selector for simple connection to existing power source
- Includes Factory Pre-Set 30/50 Pressure Switch
- Produces up to 50 PSI with automatic shut-off
- Glass-Filled Thermoplastic Impeller & Diffuser
- For high performance and efficient water flow
- Also Includes
- Pressure Gauge & Injector Kit
- Additional Specs
- 1-1/4" FNPT - Intake
- 1" FNPT - Discharge
- 3-Year Limited Warranty
Specifications
Motor
Voltage
120/240 Volt
Pump
Gallons Per Minute
16.2 Gallons
Inlet Diameter
1-1/4"
Outlet Diameter
1"
Housing Material
Cast Iron
Impeller Material
Plastic
Suction Head
90 Feet
Maximum PSI
73
Submersible
No
Engine
Horsepower
0.75 hp
Overview
Weight
37 Pounds
Consumer Warranty
3 Years
UPC
010121151116
Additional Model Numbers
RJC-75-PREM, 602137
Product Specs
+−
Specifications
Motor
Voltage
120/240 Volt
Pump
Gallons Per Minute
16.2 Gallons
Inlet Diameter
1-1/4"
Outlet Diameter
1"
Housing Material
Cast Iron
Impeller Material
Plastic
Suction Head
90 Feet
Maximum PSI
73
Submersible
No
Engine
Horsepower
0.75 hp
Overview
Weight
37 Pounds
Consumer Warranty
3 Years
UPC
010121151116
Additional Model Numbers
RJC-75-PREM, 602137
