Features

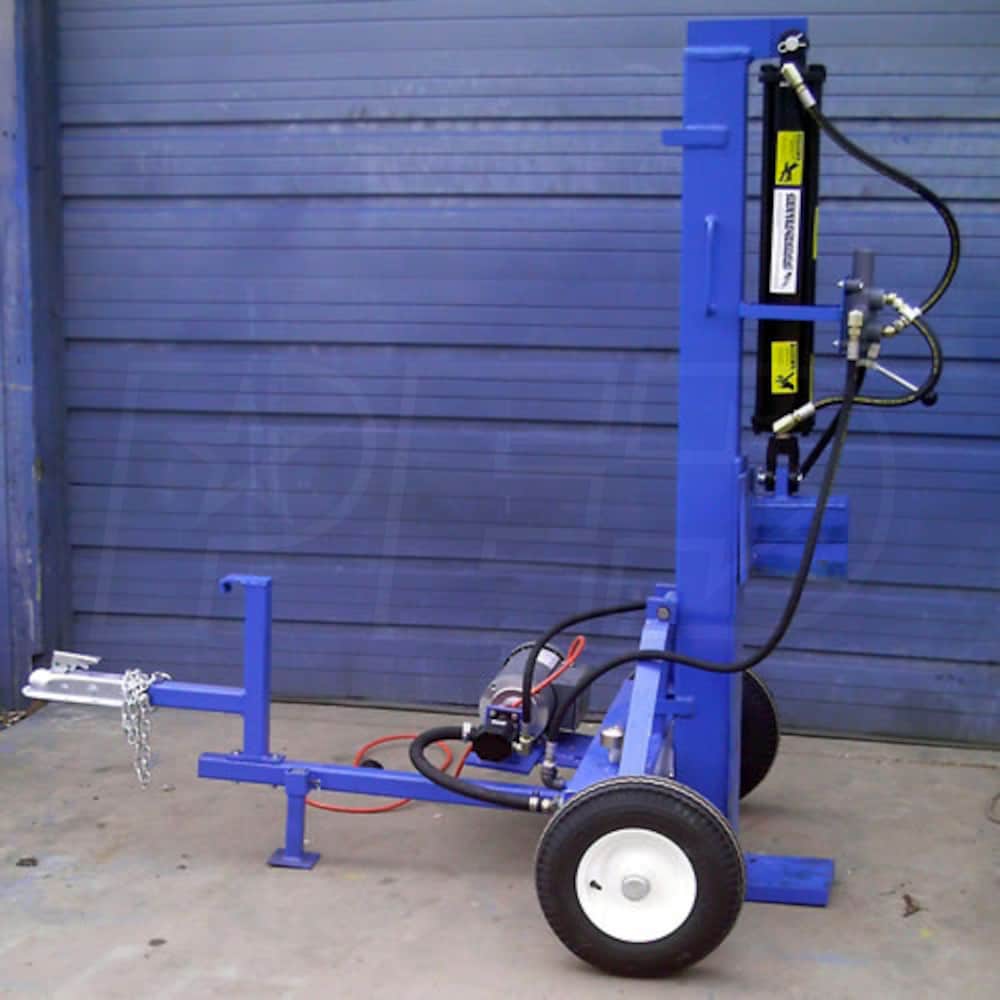

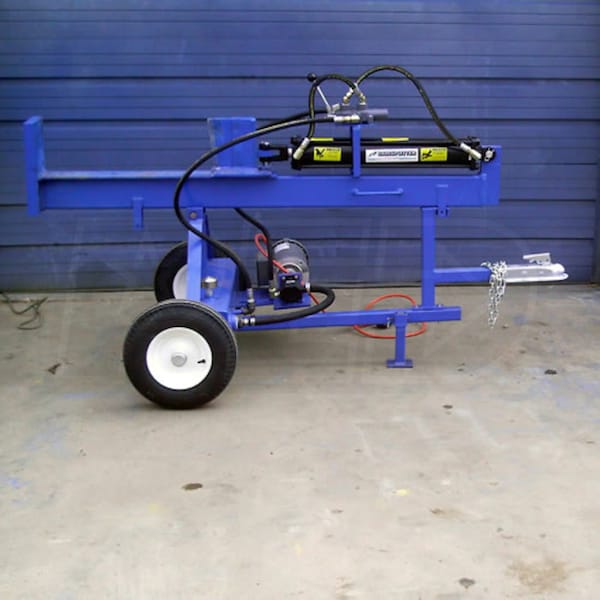

Ramsplitter 20-Ton Horizontal / Vertical Electric Log Splitter
Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
- Quality And Durability At A Great Price
- Same pump, valve, & beam as on commercial units
- Tough Enough For Many Sizes And Types Of Logs
- 220 volt, 2HP electric motor is sturdy and convenient
- No need to pull start, just plug in and start splitting
- 220 VAC, 25 Amp circuit required
- Working Height From The Ground Is 32"
- Lower height means less lifting of logs
- Handles logs up to 26" long
- 2 Stage, 11 GPM Pump
- 15 second cycle time; split more logs faster
- Control valve locks into reverse & auto returns after splitting
- 4" cylinder with 1-1/2" ram
- Built In Relief Valve
- Protects the hydraulic system
- Brass Wear Strips Between Ram And Beam
- Adds to the life of your log splitter
- 480 x 8" Tires
- Can be towed on the road up to 35 MPH
Specifications
HV20-4

Engine
HP
2 HP
Motor
Motor Voltage
240-Volts
Power Cord Length
6 Feet
Hydraulics
Auto Return
Yes
Hydraulic Filter
Yes
Hydraulic Oil Included
No
Cylinder Diameter
4 Inches
Cycle Time
15 Seconds
Tonnage
20 Tons
Overview
Assembly Required
Yes
Weight
500 Pounds
Consumer Warranty
1 Year
Product Length
72 Inches
Product Width
50 Inches
Power Type
Electric
Wedge
Wedge Material
Steel
Wedge Style
2-way
Replaceable Wedge
Yes
Sharpenable Wedge
Yes
Log Capacity
Max Log Length
26 Inches
Towing
Towable
Yes
D.O.T. Lights
Sold Separately
Fenders
Sold Separately
Hitch Type
2 Inch Ball Hitch
Max Towing Speed
35 MPH
Wood Type | Hardness Rating | 6" Seasoned | 6" Green | 12" Seasoned | 12" Green | 24" Seasoned | 24" Green |
---|---|---|---|---|---|---|---|
Alder | 590 Lbs. | 4+ Tons | 6+ Tons | 7+ Tons | 9+ Tons | 27+ Tons | 30+ Tons |
Ash | 1320 Lbs. | 7+ Tons | 9+ Tons | 16+ Tons | 22+ Tons | 30+ Tons | 35+ Tons |
Aspen | 420 Lbs. | 4+ Tons | 6+ Tons | 7+ Tons | 9+ Tons | 27+ Tons | 30+ Tons |
Basswood | 410 Lbs. | 4+ Tons | 6+ Tons | 7+ Tons | 9+ Tons | 27+ Tons | 30+ Tons |
Beech | 1300 Lbs. | 7+ Tons | 9+ Tons | 16+ Tons | 22+ Tons | 30+ Tons | 35+ Tons |
Birch | 1470 Lbs. | 7+ Tons | 9+ Tons | 16+ Tons | 22+ Tons | 30+ Tons | 35+ Tons |
Boxelder | 720 Lbs. | 6+ Tons | 8+ Tons | 10+ Tons | 13+ Tons | 27+ Tons | 30+ Tons |
Buckeye | 350 Lbs. | 4+ Tons | 6+ Tons | 7+ Tons | 9+ Tons | 27+ Tons | 30+ Tons |
Catalpa | 550 Lbs. | 4+ Tons | 6+ Tons | 7+ Tons | 9+ Tons | 27+ Tons | 30+ Tons |
Cedar | 900 Lbs. | 6+ Tons | 8+ Tons | 15+ Tons | 20+ Tons | 27+ Tons | 30+ Tons |
Cherry | 950 Lbs. | 6+ Tons | 8+ Tons | 15+ Tons | 20+ Tons | 27+ Tons | 30+ Tons |
Cottonwood | 430 Lbs. | 4+ Tons | 6+ Tons | 7+ Tons | 9+ Tons | 27+ Tons | 30+ Tons |
Dogwood | 2150 Lbs. | 10+ Tons | 13+ Tons | 22+ Tons | 27+ Tons | 30+ Tons | 35+ Tons |
Elm | 1540 Lbs. | 10+ Tons | 13+ Tons | 16+ Tons | 22+ Tons | 30+ Tons | 35+ Tons |
Fir | 710 Lbs. | 6+ Tons | 8+ Tons | 10+ Tons | 13+ Tons | 27+ Tons | 30+ Tons |
Hickory | 1820 Lbs. | 10+ Tons | 13+ Tons | 22+ Tons | 27+ Tons | 30+ Tons | 35+ Tons |
Locust | 1700 Lbs. | 10+ Tons | 13+ Tons | 22+ Tons | 27+ Tons | 30+ Tons | 35+ Tons |
Magnolia | 1020 Lbs. | 7+ Tons | 9+ Tons | 16+ Tons | 22+ Tons | 30+ Tons | 35+ Tons |
Maple | 1450 Lbs. | 7+ Tons | 9+ Tons | 16+ Tons | 22+ Tons | 30+ Tons | 35+ Tons |
Oak | 1620 Lbs. | 10+ Tons | 13+ Tons | 22+ Tons | 27+ Tons | 30+ Tons | 35+ Tons |
Pine | 860 Lbs. | 6+ Tons | 8+ Tons | 10+ Tons | 13+ Tons | 27+ Tons | 30+ Tons |
Poplar | 540 Lbs. | 4+ Tons | 6+ Tons | 7+ Tons | 9+ Tons | 27+ Tons | 30+ Tons |
Spruce | 510 Lbs. | 4+ Tons | 6+ Tons | 7+ Tons | 9+ Tons | 27+ Tons | 30+ Tons |
Sweet Gum | 850 Lbs. | 6+ Tons | 8+ Tons | 10+ Tons | 13+ Tons | 27+ Tons | 30+ Tons |
Walnut | 1010 Lbs. | 7+ Tons | 9+ Tons | 16+ Tons | 22+ Tons | 30+ Tons | 35+ Tons |
Reviews
(7)
Ramsplitter HV20-4 Reviews & Ratings
Customer Photos and Videos


Updating Earlier Review
By Greg B
Clarksville, Ohio
Review Posted 05/15/2017


Update. It is still my favorite splitter. But after a decade of use, the main beam failed where it was welded to the ram cylinder mount. I had a local weld shop repair and reinforce it. The color is old Ford blue, so after painting, it looks like an OEM job. I don't think it will fail this way again.
Greg B Recommends This
Was this review helpful?
Rating Breakdown
3/5
5/5
5/5
3/5
Pros:
Easy To Use, Quiet, Low routine maintenance
Cons:
Durability, Expensive
Ramsplitter - A tough machine
By Steve Meng
Cincinnati, Ohio
Review Posted 10/05/2016
I purchased the 20 ton electric model after reading reviews on many makes and sizes. I was amazed how well it ran on 115V 20A service but it could not split the tough logs until it was rewired for 230V. Nothing has stopped it since!
I was a little disappointed in some of the workmanship where hole alignments were off but the simple VERY sturdy use of good metal more than compensated. I just milled a slot. Assembly was quick but I suggest having a friend help. The parts are heavy with several sharp areas to watch.
I was a little disappointed in some of the workmanship where hole alignments were off but the simple VERY sturdy use of good metal more than compensated. I just milled a slot. Assembly was quick but I suggest having a friend help. The parts are heavy with several sharp areas to watch.
Steve Meng Recommends This
Was this review helpful?
Rating Breakdown
5/5
4/5
5/5
4/5
I have this model
By Greg B.
Clarksville, Ohio
Review Posted 12/09/2015
But I have a 3 Hp electric motor on it. I like the low noise, low heat and freedom from exhaust fumes. Con: it does not have a stop to release the ram when stuck, by reversing the load.
Greg B. Recommends This
Was this review helpful?
Rating Breakdown
4/5
5/5
5/5
4/5
Ramsplitter-- Quality Can Take Time, So Be Patient
By Bob Crew
IL
Review Posted 01/19/2015
Ramsplitter builds every one of their log splitters in Rockford, IL. While these units are manufactured in America by U.S. labor, the manufacturing process is very manual and time-consuming, and as a result, it’s not unusual for a Ramsplitter brand log splitter to take as long as 6 to 8 weeks to ship to you from the time you order. There is no denying the unit you receive will be a top-quality product made by American workers. Just be prepared to wait for your unit to actually show up at your home or business. If you are in a hurry to split your logs, you may want to consider another brand of log splitter.
Was this review helpful?
Rating Breakdown
2/5
2/5
2/5
2/5

Ramsplitter Rams Thru Everything
By Victor
New York
Purchased 04/16/2012 |
Review Posted 05/07/2012
The Ramsplitter is a very good unit. It is very strong and walks thru every piece of knotted wood i have attempted. I hope it holds up well over the years.
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5
Ramsplitter - Well made!
By Ed
Lockport, Illinois
Review Posted 04/20/2011
Bought a Ramsplitter 2 years ago. I have the 110v 20 ton model. It calls for 20 amps.
Fine in the summertime, with warm hydraulic fluid. Need at least 30 amps in the winter, or an oil warming device to get the electric motor to overcome the thick, cold fluid.
All that said, I LOVE THIS SPLITTER! Work in the heated garage in the winter, very little noise, no gas smell, no gas problems.
This splitter just works great!
Fine in the summertime, with warm hydraulic fluid. Need at least 30 amps in the winter, or an oil warming device to get the electric motor to overcome the thick, cold fluid.
All that said, I LOVE THIS SPLITTER! Work in the heated garage in the winter, very little noise, no gas smell, no gas problems.
This splitter just works great!
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5
