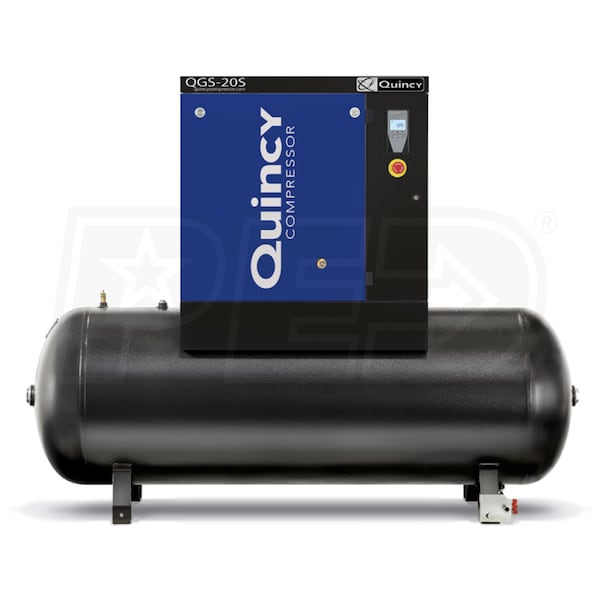

Quincy QGS 20-HP 120-Gallon Rotary Screw Air Compressor (208/230/460V 3-Phase)

Quincy QGS 20-HP 120-Gallon Rotary Screw Air Compressor (208/230/460V 3-Phase)
Our Price
Compare Prices
Shipping Info
Model: 4152026525
No RatingNo RatingNo RatingNo RatingNo Rating
Number of Reviews (0)
Write A Review
$13,099.99

Factory-Direct
Ships in 2-5 Business Days
Factory items ship direct from the manufacturer.
Shipping times vary.
Shipping Crate Icon
Free Shipping
Free Shipping$13,099.99Buy Now
Free Freight$13,099.99Visit Site
Factory-Direct
Ships in 2-5 Business Days
Free Freight
Free Freight
*We currently CANNOT ship this product to Alaska, Hawaii or any destination outside of the United States
Share
  • Product Description
  • Reviews
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+
Grade
Commercial
Style
Rotary Screw 3-Phase
CFM
84
CFM Rated @ 125 PSI
Tank Size
120
Gallons
Grade
Commercial
CFM
84 CFM Rated @ 125 PSI
Tank Size
120 Gallons


Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."

Features
Features
  • Superior Compressed Air Turn-Key Performance
  • Oil injected twin screw pump provides reliable, quiet power at 63 dBA
  • InfoLogic Microprocessor Control Functions
  • Check compressor performance at a glance
  • Network up to six QGS 20 to 30 HP units
  • Convenient Display Panel
  • Includes auto run, general alarm & power-on LED's
  • Pressure display, temperature & dewpoint display
  • Motor start limit; max & min temperature default settings
  • Completely Programmable Auto Restart & Remote Start/Stop
  • Wye-Delta reduced voltage start for industrial applications
  • Continuous 100% Duty Cycle
  • Runs your application quietly & efficiently 24/7
  • Ideal for most applications; 84 CFM at 125 PSI; 36°F min temp
  • Premium Synthetic Lubrication
  • Rated for 8,000 hours; low oil carryover protects components
  • TEFC Electric Motor (IP 55 Wash Down)
  • 3-phase unit is capable of running on 208/230-460 voltage
  • Extended 3 Year Factory Warranty Available
  • Must register with Quincy & use Quincy Maintenance Kits
  • True Blue 5-Year Warranty with Quincy Authorized Start Up
  • Covers airend, motor, separator reservoir, cooler/heat exchanger
  • Quincy Part #: 4152016770 - Quincy Model #: QGS 20 TM-3
Specifications
Motor
Voltage
208-230/460 Volt AC
Phase
3-Phase
Amp Draw
Consult Certified Electrician
Recommended Breaker
Consult Certified Electrician
Engine
HP
20
Engine Low Oil Shut-off
Yes
Pump
CFM
84
CFM Rated @
125 PSI
Max PSI
125 PSI
Oil Sight Glass
Yes
Pump Type
Rotary
After Cooler
Yes
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Pump Low Oil Shut-off
Yes
Duty Cycle
100%
Tank
Tank Size
120 Gallons
Tank Outlet
1 Inch
Electronic Drain Valve
No
Tank Orientation
Horizontal
Accessories
Pressure Gauge
Yes
Air Dryer
No
Air Filter
Yes
Overview
Weight
893 Pounds
Certification
ASME
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
53 Inches
Product Width
31 Inches
Product Height
48 Inches
Power Type
Electric
UPC
791326011688
Additional Model Numbers
4152016770, 4152026525
Grade
Commercial
Style
Rotary Screw 3-Phase
CFM
84
CFM Rated @ 125 PSI
Tank Size
120
Gallons
Grade
Commercial
CFM
84 CFM Rated @ 125 PSI
Tank Size
120 Gallons


Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."

Features
Features
  • Superior Compressed Air Turn-Key Performance
  • Oil injected twin screw pump provides reliable, quiet power at 63 dBA
  • InfoLogic Microprocessor Control Functions
  • Check compressor performance at a glance
  • Network up to six QGS 20 to 30 HP units
  • Convenient Display Panel
  • Includes auto run, general alarm & power-on LED's
  • Pressure display, temperature & dewpoint display
  • Motor start limit; max & min temperature default settings
  • Completely Programmable Auto Restart & Remote Start/Stop
  • Wye-Delta reduced voltage start for industrial applications
  • Continuous 100% Duty Cycle
  • Runs your application quietly & efficiently 24/7
  • Ideal for most applications; 84 CFM at 125 PSI; 36°F min temp
  • Premium Synthetic Lubrication
  • Rated for 8,000 hours; low oil carryover protects components
  • TEFC Electric Motor (IP 55 Wash Down)
  • 3-phase unit is capable of running on 208/230-460 voltage
  • Extended 3 Year Factory Warranty Available
  • Must register with Quincy & use Quincy Maintenance Kits
  • True Blue 5-Year Warranty with Quincy Authorized Start Up
  • Covers airend, motor, separator reservoir, cooler/heat exchanger
  • Quincy Part #: 4152016770 - Quincy Model #: QGS 20 TM-3
Specifications
Motor
Voltage
208-230/460 Volt AC
Phase
3-Phase
Amp Draw
Consult Certified Electrician
Recommended Breaker
Consult Certified Electrician
Engine
HP
20
Engine Low Oil Shut-off
Yes
Pump
CFM
84
CFM Rated @
125 PSI
Max PSI
125 PSI
Oil Sight Glass
Yes
Pump Type
Rotary
After Cooler
Yes
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Pump Low Oil Shut-off
Yes
Duty Cycle
100%
Tank
Tank Size
120 Gallons
Tank Outlet
1 Inch
Electronic Drain Valve
No
Tank Orientation
Horizontal
Accessories
Pressure Gauge
Yes
Air Dryer
No
Air Filter
Yes
Overview
Weight
893 Pounds
Certification
ASME
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
53 Inches
Product Width
31 Inches
Product Height
48 Inches
Power Type
Electric
UPC
791326011688
Additional Model Numbers
4152016770, 4152026525
Product Specs
+
Specifications
Motor
Voltage
208-230/460 Volt AC
Phase
3-Phase
Amp Draw
Consult Certified Electrician
Recommended Breaker
Consult Certified Electrician
Engine
HP
20
Engine Low Oil Shut-off
Yes
Pump
CFM
84
CFM Rated @
125 PSI
Max PSI
125 PSI
Oil Sight Glass
Yes
Pump Type
Rotary
After Cooler
Yes
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Pump Low Oil Shut-off
Yes
Duty Cycle
100%
Tank
Tank Size
120 Gallons
Tank Outlet
1 Inch
Electronic Drain Valve
No
Tank Orientation
Horizontal
Accessories
Pressure Gauge
Yes
Air Dryer
No
Air Filter
Yes
Overview
Weight
893 Pounds
Certification
ASME
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
53 Inches
Product Width
31 Inches
Product Height
48 Inches
Power Type
Electric
UPC
791326011688
Additional Model Numbers
4152016770, 4152026525
