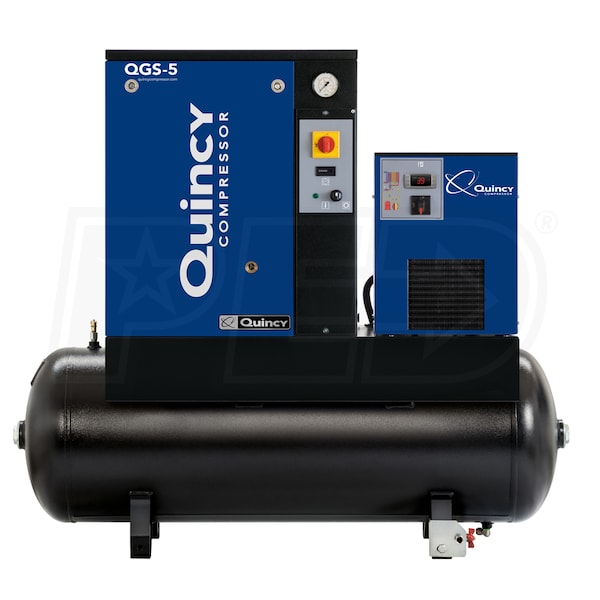

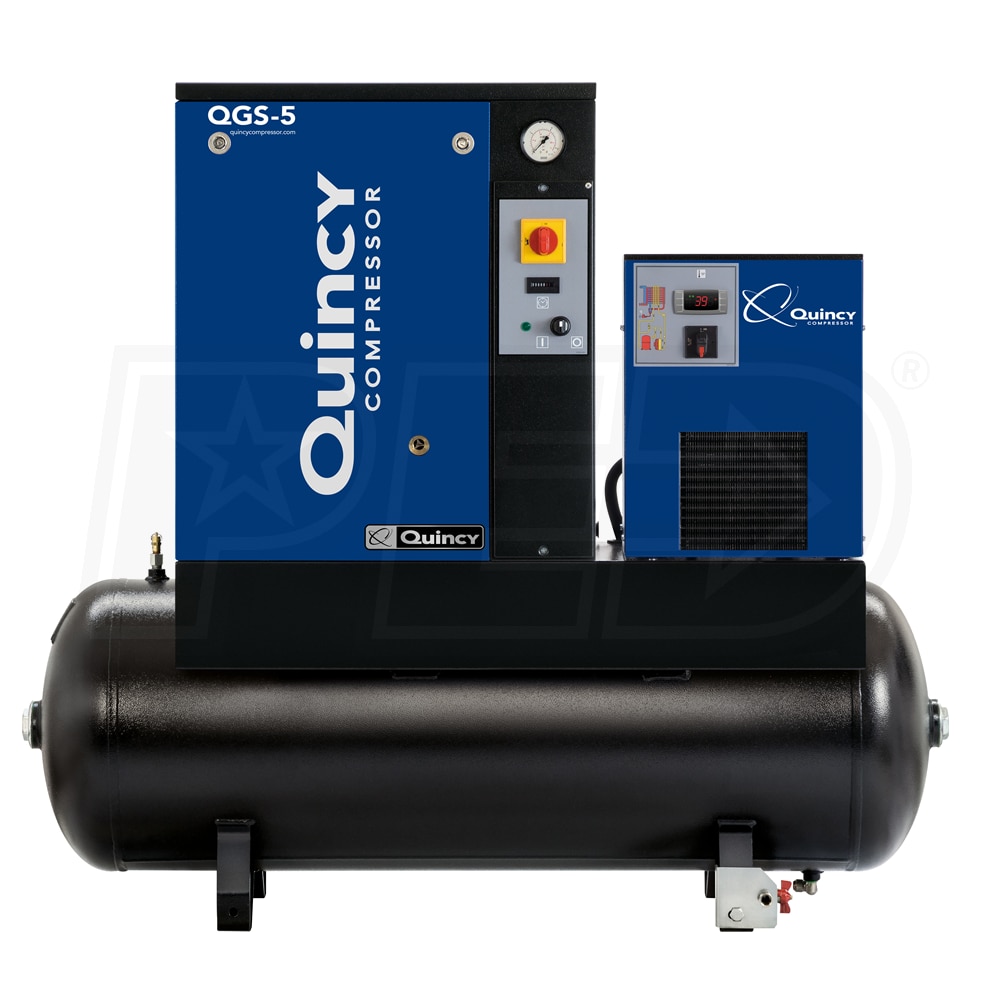

Quincy QGS 5-HP 60-Gallon Rotary Screw Compressor w/ Dryer (230V 1-Phase)

Model:

4152005430

Write a Review
$6,999.99
Free Shipping
  Learn More About Free Freight
Factory-Direct
Ships in 4-6 Weeks
Factory items ship direct from the manufacturer. Shipping times vary.
Free Shipping$6,999.99Buy Now
Free Freight$6,999.99Visit Site
Quincy QGS 5-HP 60-Gallon Rotary Screw Compressor w/ Dryer (230V 1-Phase)
Quincy QGS 5-HP 60-Gallon Rotary Screw Compressor w/ Dryer (230V 1-Phase)
Model: 4152005430
$6,999.99
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

Power Equipment Direct expert image
Expert Recommended Accessories Selected by Joshua, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Grade

Commercial

Style

Rotary Screw 1-Phase

CFM

15.6

Tank Size

60



Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
  • Superior Compressed Air Turn-Key Performance
  • Oil injected twin screw pump provides reliable, quiet power
  • Integrated Refrigerated Air Dryer
  • Condenses the air to remove airborne moisture, dirt, and oil
  • Continuous 100% Duty Cycle
  • Runs your application efficiently 24/7
  • Standard Quiet Enclosure
  • Runs without the vibration & noise of piston compressors
  • Ideal for most applications; 15.6 CFM at 150 PSI
  • 62 dBA for reduced sound fatigue in work area installations
  • Premium Synthetic Lubrication
  • Rated for 8,000 hours; low oil carryover protects tools
  • Start/Stop Operation
  • UL and cUL control panel compliant; 36°F minimum temperature
  • Long Life V-Belt Drive
  • Less maintenance, reliable operation
  • TEFC Electric Motor
  • 1-phase unit runs on 230V power (IP 55 wash down)
  • Extended 3 Year Factory Warranty Available
  • Must register with Quincy & use Quincy Maintenance Kits
  • True Blue 5-Year Warranty with Quincy Authorized Start Up
  • Covers airend, motor, separator reservoir, cooler/heat exchanger
  • Quincy Part #: 4152005430 - Quincy Model #: QGS 5 HPD 1
California residents see
Warning: This product can expose you to chemicals including Lead which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov

Specifications

4152005430
specs product image PID-10833
Motor
Voltage
230 Volt AC
Phase
1-Phase
dBA
62
Amp Draw
Consult Certified Electrician
Recommended Breaker
Consult Certified Electrician
Engine
HP
5
Engine Low Oil Shut-off
Yes
Pump
CFM
15.6
CFM Rated @
150 PSI
Max PSI
150 PSI
Oil Sight Glass
Yes
Pump Type
Rotary
After Cooler
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Duty Cycle
100%
Pump Low Oil Shut-off
Yes
Tank
Tank Size
60 Gallons
Tank Outlet
1/2 Inch
Electronic Drain Valve
No
Tank Orientation
Horizontal
Accessories
Air Dryer
Yes
Air Filter
Yes
Overview
Weight
543 Pounds
Certification
ASME
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
56 Inches
Product Width
23 Inches
Product Height
51 Inches
Power Type
Electric
UPC
791326011596
Additional Model Numbers

4152002726, 4152005430
