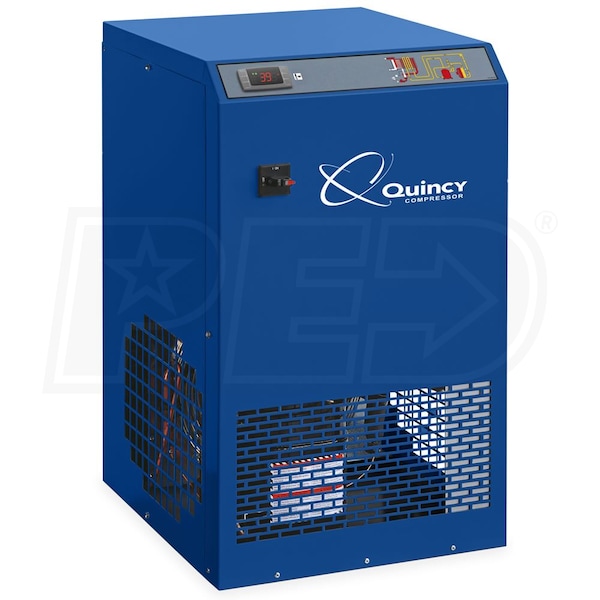

Quincy QPNC 144 1-1/2" Non-Cycling Refrigerated Air Dryer (144 CFM) (230V 1-Phase)
Model: 4102005364
No RatingNo RatingNo RatingNo RatingNo Rating
Number of Reviews(0)
Write a Review
Ask a Question
$3,094.99
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
Ships in 2-5 Business Days
Factory items ship direct from the manufacturer. Shipping times vary.
Shipping to60601
Shipping Details
  • Free to Lower 48 States
  • Lift Gate Service Available - $75.00 Service Charge Learn More
*We currently CANNOT ship this product to Alaska, Hawaii or any destination outside of the United States
Available Add-Ons
+$75.00
Learn More
Lift Gate Service
All products weighing more than 100 lbs. ship via semi-truck. We recommend ordering the Lift Gate Service to safely lower the product to the curb. If you have a loading dock or forklift, you do NOT need a Lift Gate service. If you are a residential customer, you must have at least 2-4 able-bodied people present to unload the product. Learn More
Free Shipping$3,094.99Buy Now
Free Freight$3,094.99Visit Site
Share
  • Product Description
  • Reviews
  • Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+−
Style
Refrigerated
Air Dryer CFM
144
Style
Refrigerated
Air Dryer CFM
144
Features
Features
  • Refrigerated Non-Cycling Dryer
  • Best suited for small systems with fairly constant loads
  • Purifies compressed air by chilling to condense moisture
  • Condensate is drained, carrying oil & dirt away from the air
  • 2-Stage Heat Exchanger
  • Maintains consistent dew points
  • Freeze-ups prevented & optimum performance maintained
  • Automatic Zero Loss Drain
  • Prevents build up of oil, dirt & moisture in compressed air
  • The most energy efficient drain
  • Environmentally Safe Refrigerant (R410A)
  • No CFCs or HCFCs; zero ozone depletion potential (ODP)
  • Provides higher performance & efficiency potential
  • Simple Control Panel
  • Run & alarm lights, analyzer gauge, start/stop switch w/ lock out
  • Also shows a diagram of the system flow
  • Versatile
  • Handles 144 CFM at 100 PSI; 203 PSI maximum
  • Uses 230V 1 phase power; 1-1/2" NPT-F connector in & out
Specifications
Motor
Voltage
230 Volt AC
Phase
1-Phase
Air Dryer
Air Dryer CFM
144
Max PSI
203
Max Inlet Temp. Rating
131
Max Ambient Temp. Rating
109
Non-Cycling
Yes
Inlet Fittings
1-1/2"
Outlet Fittings
1-1/2"
Aftercooler
No
Pre-Filter
No
Post-Filter
No
Wall Mountable
No
Alarm Lights
Yes
Auto Drain
Yes
Regenerative
No
High Temp
No
Overview
Weight
143 Pounds
Consumer Warranty
2 Years
Commercial Warranty
2 Years
Product Length
22 Inches
Product Width
18 Inches
Product Height
31 Inches
Power Type
Electric
Style
Refrigerated
Air Dryer CFM
144
Style
Refrigerated
Air Dryer CFM
144
Features
Features
  • Refrigerated Non-Cycling Dryer
  • Best suited for small systems with fairly constant loads
  • Purifies compressed air by chilling to condense moisture
  • Condensate is drained, carrying oil & dirt away from the air
  • 2-Stage Heat Exchanger
  • Maintains consistent dew points
  • Freeze-ups prevented & optimum performance maintained
  • Automatic Zero Loss Drain
  • Prevents build up of oil, dirt & moisture in compressed air
  • The most energy efficient drain
  • Environmentally Safe Refrigerant (R410A)
  • No CFCs or HCFCs; zero ozone depletion potential (ODP)
  • Provides higher performance & efficiency potential
  • Simple Control Panel
  • Run & alarm lights, analyzer gauge, start/stop switch w/ lock out
  • Also shows a diagram of the system flow
  • Versatile
  • Handles 144 CFM at 100 PSI; 203 PSI maximum
  • Uses 230V 1 phase power; 1-1/2" NPT-F connector in & out
Specifications
Motor
Voltage
230 Volt AC
Phase
1-Phase
Air Dryer
Air Dryer CFM
144
Max PSI
203
Max Inlet Temp. Rating
131
Max Ambient Temp. Rating
109
Non-Cycling
Yes
Inlet Fittings
1-1/2"
Outlet Fittings
1-1/2"
Aftercooler
No
Pre-Filter
No
Post-Filter
No
Wall Mountable
No
Alarm Lights
Yes
Auto Drain
Yes
Regenerative
No
High Temp
No
Overview
Weight
143 Pounds
Consumer Warranty
2 Years
Commercial Warranty
2 Years
Product Length
22 Inches
Product Width
18 Inches
Product Height
31 Inches
Power Type
Electric
Product Specs
+−
Specifications
Motor
Voltage
230 Volt AC
Phase
1-Phase
Air Dryer
Air Dryer CFM
144
Max PSI
203
Max Inlet Temp. Rating
131
Max Ambient Temp. Rating
109
Non-Cycling
Yes
Inlet Fittings
1-1/2"
Outlet Fittings
1-1/2"
Aftercooler
No
Pre-Filter
No
Post-Filter
No
Wall Mountable
No
Alarm Lights
Yes
Auto Drain
Yes
Regenerative
No
High Temp
No
Overview
Weight
143 Pounds
Consumer Warranty
2 Years
Commercial Warranty
2 Years
Product Length
22 Inches
Product Width
18 Inches
Product Height
31 Inches
Power Type
Electric
