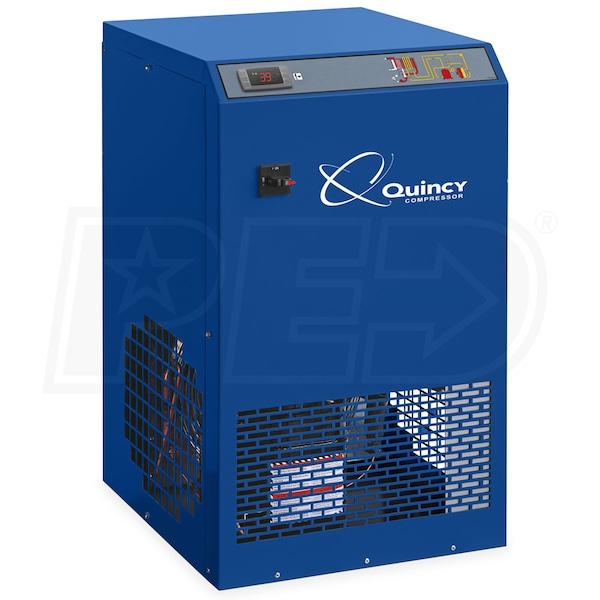

Quincy QPNC 100 1-1/2" Non-Cycling Refrigerated Air Dryer (100 CFM) (115V 1-Phase)

Model:

4102002683

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Try this product instead
Quincy QPNC 100 1-1/2
Quincy QPNC 100 1-1/2" Non-Cycling Refrigerated Air Dryer (100 CFM) (115V 1-Phase)
Model: 4102002683
Product Discontinued
Accessories
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Recommended Accessories

Power Equipment Direct expert image
Expert Recommended Accessories Selected by Melissa, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Style

Refrigerated

Air Dryer CFM

100
  • Refrigerated Non-Cycling Dryer
  • Best suited for small systems with fairly constant loads
  • Purifies compressed air by chilling to condense moisture
  • Condensate is drained, carrying oil & dirt away from the air
  • 2-Stage Heat Exchanger
  • Maintains consistent dew points
  • Freeze-ups prevented & optimum performance maintained
  • Automatic Zero Loss Drain
  • Prevents build up of oil, dirt & moisture in compressed air
  • The most energy efficient drain
  • Environmentally Safe Refrigerant (R404A)
  • No CFCs or HCFCs; zero ozone depletion potential (ODP)
  • Provides higher performance & efficiency potential
  • Simple Control Panel
  • Run & alarm lights, analyzer gauge, start/stop switch w/ lock out
  • Also shows a diagram of the system flow
  • Versatile
  • Handles 100 CFM at 100 PSI; 200 PSI maximum
  • Uses 115V-1 phase power; 1.5" NPT-F connector in & out
  • Quincy Part #: 4102002683 - Quincy Model #: QPNC 100
California residents see
Warning: This product can expose you to chemicals including Lead which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov

Specifications

4102002683
specs product image PID-11022
Motor
Voltage
115 Volt AC
Phase
1-Phase
Air Dryer
Air Dryer CFM Learn More
Air Dryer CFM
All compressed air dryers have a maximum drying capacity expressed in Cubic Feet Per Minute (CFM)
100
Max PSI Learn More
Max PSI
The most amount of PSI that be passed through a dryer
200
Max Inlet Temp. Rating Learn More
Max Inlet Temp. Rating
The highest temperature the compressed air can be passing through the dryer for the dryer to operate properly and effectively
120
Max Ambient Temp. Rating Learn More
Max Ambient Temp. Rating
Ambient temperature is the air temperature of any object or environment where equipment is stored
110
Non-Cycling Learn More
Non-Cycling
Non-cycling refrigerated air dryers have refrigeration compressors that start as soon as you turn the dryer on ― and don't stop until you turn the dryer off. They are less expensive than cycling dryers and are a good choice for applications where they will constantly run at full capacity
Yes
Inlet Fittings
1-1/2"
Outlet Fittings
1-1/2"
Aftercooler
No
Pre-Filter
No
Post-Filter
No
Wall Mountable
No
Alarm Lights
Yes
Auto Drain Learn More
Auto Drain
Auto drain or drip leg drain used to drain air line of condensate and water
Yes
Regenerative
No
High Temp Learn More
High Temp
Dryers that are specifically designed to handle higher inlet temperatures than regular dryers. Typically paired with a piston or reciprocating air compressor
No
Overview
Weight
130 Pounds
Consumer Warranty
2 Years
Commercial Warranty
2 Years
Product Length
25 Inches
Product Width
19 Inches
Product Height
32 Inches
Power Type
Electric
UPC
791326012135
Additional Model Numbers

4102000675, 4102002683
